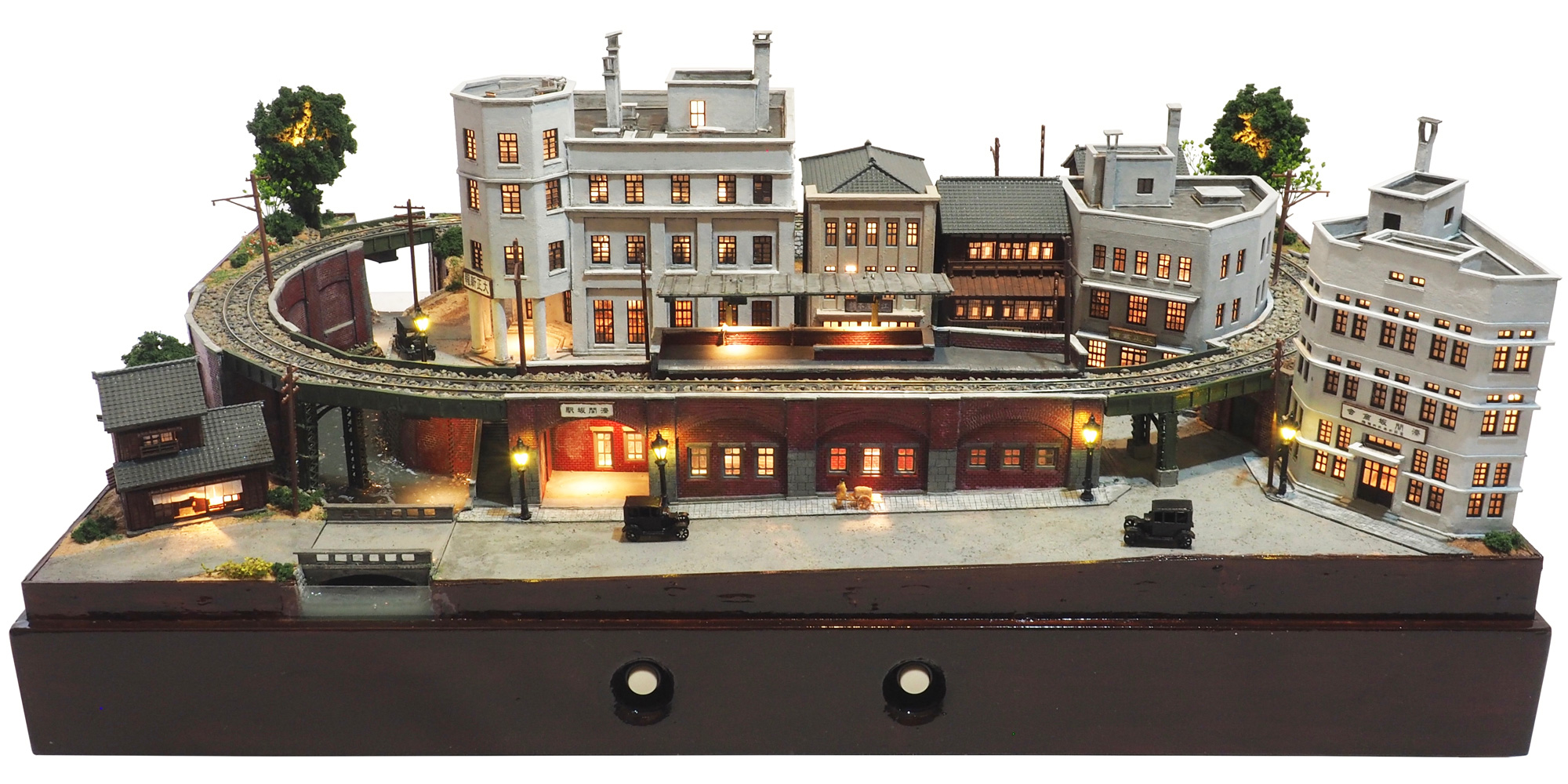

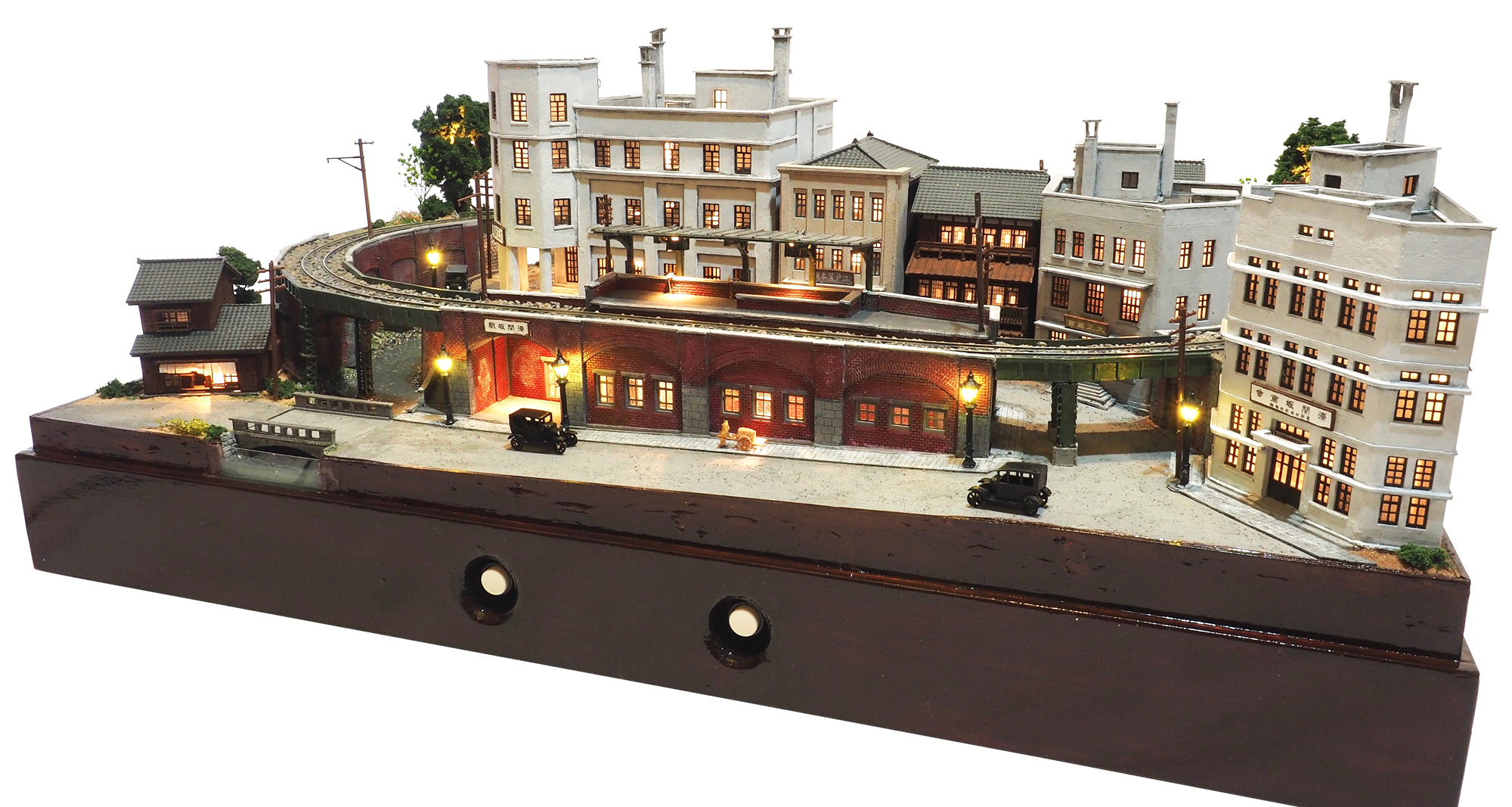

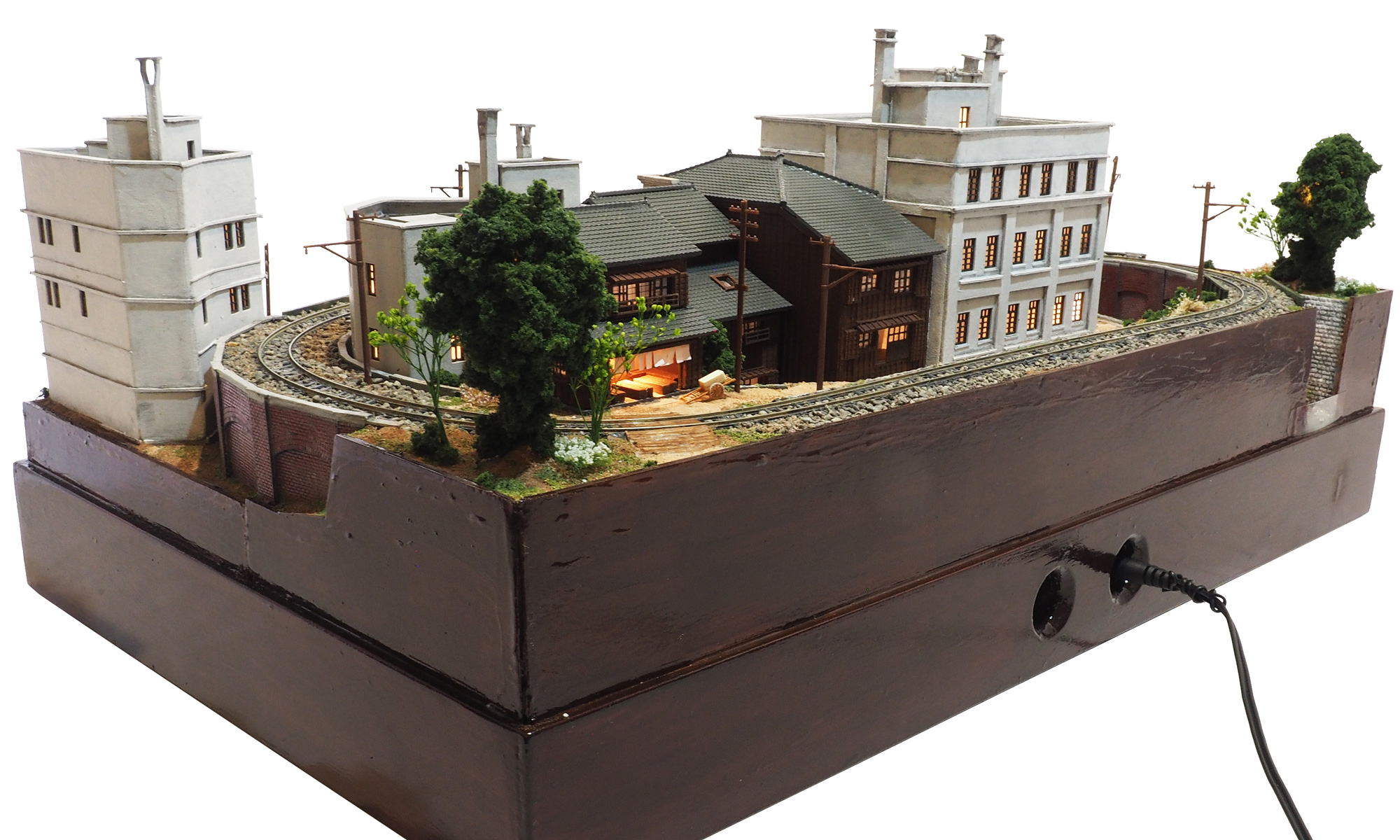

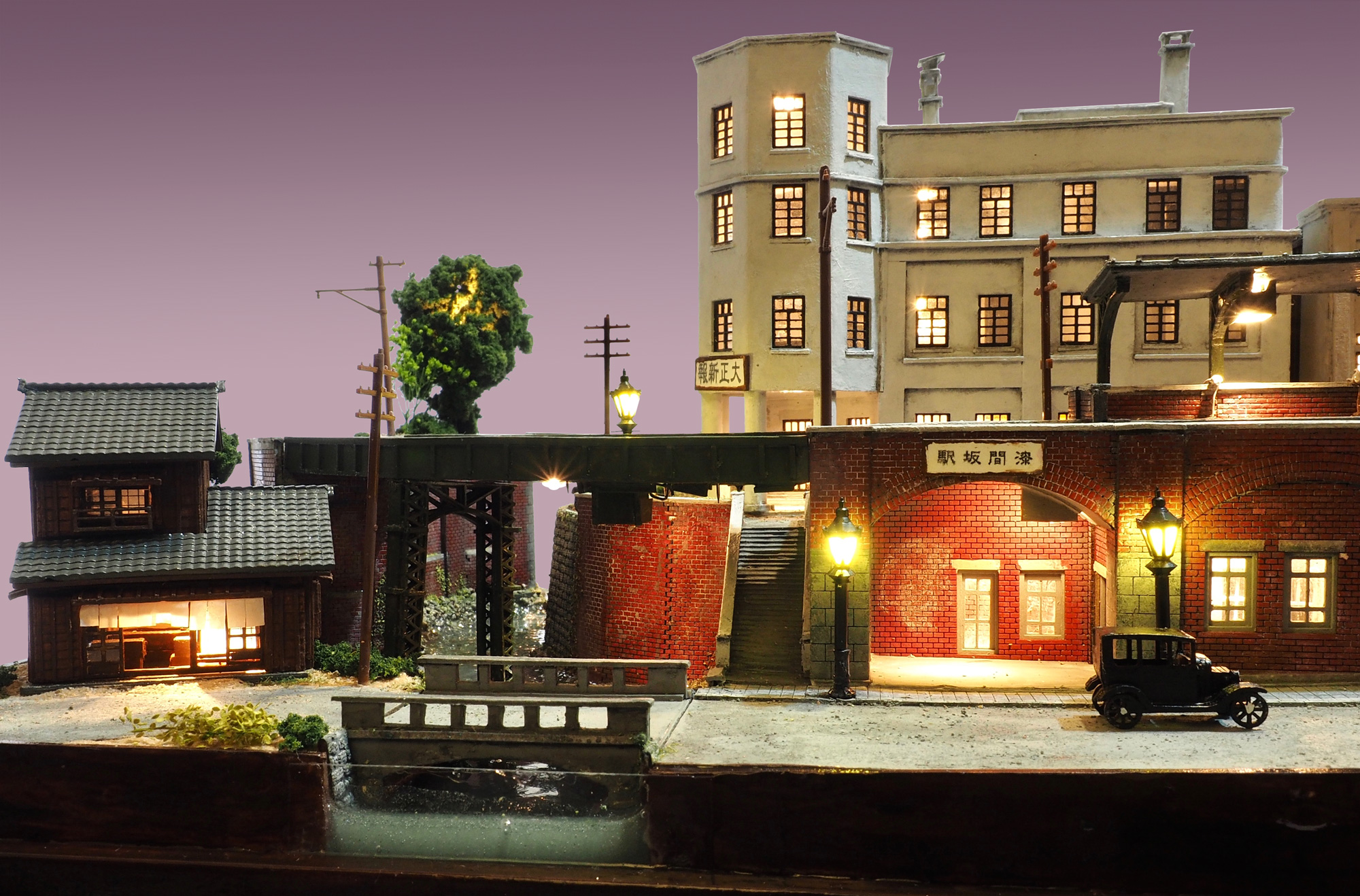

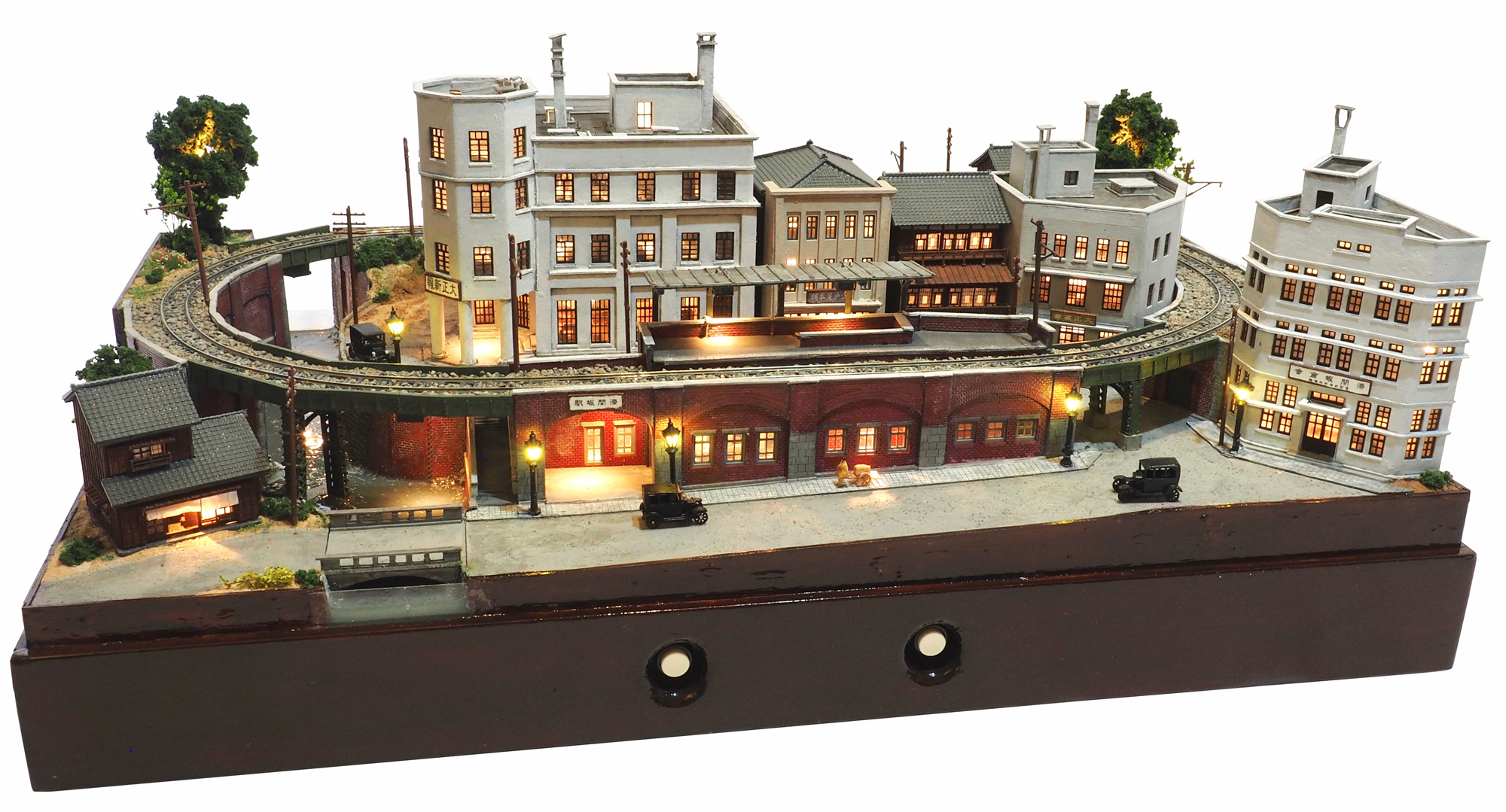

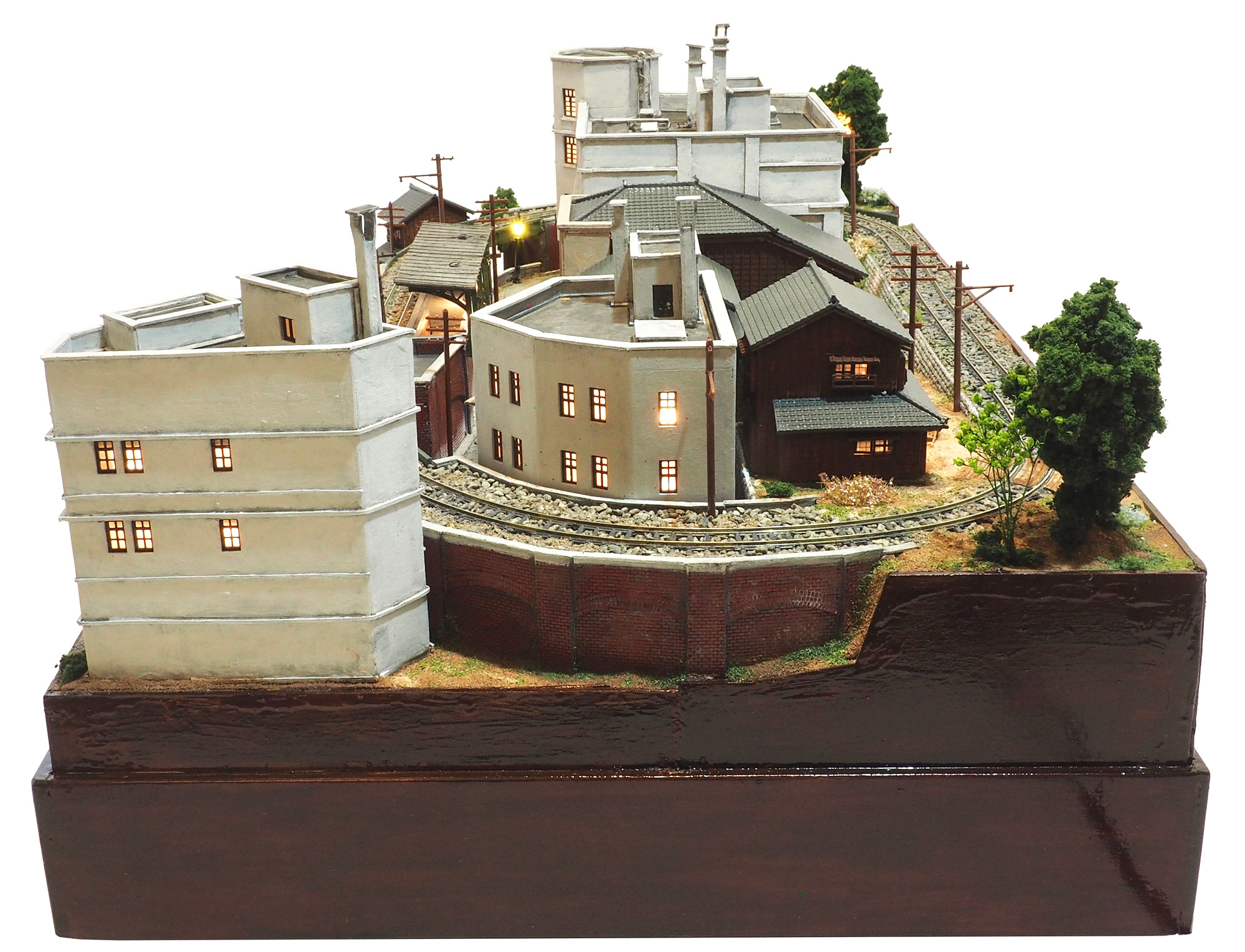

東京下町 漆間坂町
(とうきょうしたまち・ななけんざかちょう)
Tokyo Downtown, Nanakenzaka-cho
d043
制作年:2025
Mixed media
個人蔵・日本|Private Collection, Japan
東京下町 漆間坂町
(とうきょうしたまち・ななけんざかちょう)
Tokyo Downtown, Nanakenzaka-cho
d043
制作年:2025
Mixed media
個人蔵・日本|Private Collection, Japan

















































YouTube動画|YouTube Video
2009年の「東京下町の路面電車モジュール 其の1」、2014年の「東京下町の路面電車モジュール 其の2」以来、古い街並ものを制作していませんでしたが、約10年ぶりに小型レイアウトで制作した「東京下町 伍福屋町」(2024年)、「東京下町 陸華町」(2025年)に続く作品です。
タイトルの「漆」は漢数字「七(7)」の旧字体です。 (「七間坂」の旧字体が「漆間坂」)
(Nゲージ、S=1:150 スケール、建物類は全てオリジナル設計によるフルスクラッチ))
Following Tokyo Downtown Streetcar Module No. 1 (2009) and Tokyo Downtown Streetcar Module No. 2 (2014), I had not created any works depicting old townscapes for many years. This work follows Tokyo Downtown Gofukuya-cho (2024) and Tokyo Downtown Rikka-cho (2025), which I created as small-scale layouts after an interval of about ten years.
The character 「漆」 in the title is the old form of the Chinese numeral 「七(7)」. (The old form of 「七間坂」 is 「漆間坂」.)
(N gauge, S = 1:150 scale; all buildings are original designs, individually designed and built entirely from scratch.)
{JP}d043:東京下町 漆間坂町 の建物について
[EN]d043:About the Buildings of “Tokyo Downtown, Nanakenzaka-cho”
スケール / Scale: 約 1:150 (Approx. 1:150)
サイズ / Dimensions (オブジェ本体+アクリルケース / Object + acrylic case)
:H 葯250 × W 510 × D 315 mm
:H approx. 9.5 × W 20.1 × D 12.4 inches

- 主な使用材料:
- スチレンボード(地面の高さ調整・2〜5mm厚・世界堂、東急ハンズ 扱い)
- ボール紙(世界堂 扱い・約1mm厚・株式会社ORION 製「白ボール・A3」)
- イラストボード(1〜2mm厚、建物のベース、レールのベース)
- 瞬間接着剤
(サラサラタイプ:Can★Do 扱い「瞬間接着剤 1g x 3本入・速乾タイプ」)
(中粘度:Can★Do 扱い「瞬間接着剤 2g x 2本入・多用途タイプ」)
その他 - 木材(台座部分:ラワンベニア・シナベニア、アガチス単版)
- 艶消しアクリル絵具(ホルベイン・アクリリックガッシュ(旧 アクリラガッシュ))
- 紙粘土(岩の表現、地面の高低差調整、崖の表現:「Hearty ハーティークレイ・ブラウン」
- 地面の砂・石:モーリン製「リアルサンド」「Rストーン」(さかつうギャラリー 扱い)
- 石垣1:モーリン製「Rストーン」を「光栄堂 スチノリ」で接着
- 石垣2:津川洋行「 (N) SNP-N4 シーナリーペーパーN 石積 灰」を着色加工
- 樹木の表現
- フォーリッジクラスター(さかつうギャラリー 扱い)
- WOODLAND Scenics「TREE ARMATURES」TR1123(樹木の幹の部分、さかつうギャラリー 扱い)
- 光栄堂フラワーツリー(樹木の表現、世界堂、東急ハンズ 扱い)
- 「mini Natur」各種(草木・低木の表現、さかつうギャラリー 扱い)https://webshop.sekaido.co.jp/product/A005242
- 屋根瓦: グリーンマックス
- 電柱: グリーンマックス
- 架線柱: 津川洋行
- 高透明レジン「プロクリスタル NEO または 880」(レジン、渓流の水)
- ホルベイン「Crystal Varnish」(水面波の表現、レジンの硬化後に塗布)
- アサヒペン「水性ニス・マホガニー」(台座の仕上げ塗装) 他
- 路面電車が走る地面の楕円軌道
- PECO フレキシブル線路(N用、W 9.5mm)SL-300F コード55
- 犬釘(篠原 HO N3 Spikes、生産終了品)

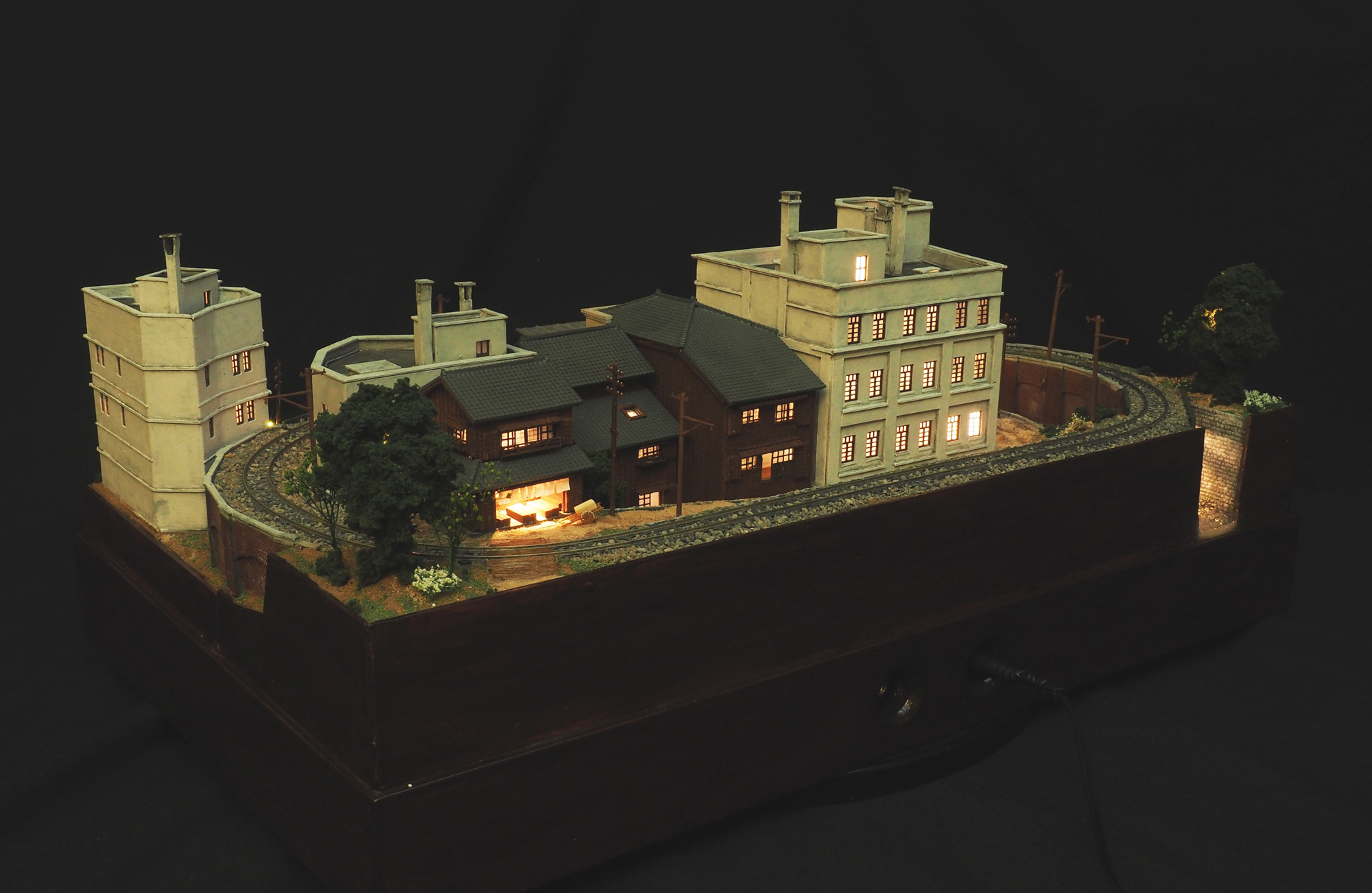

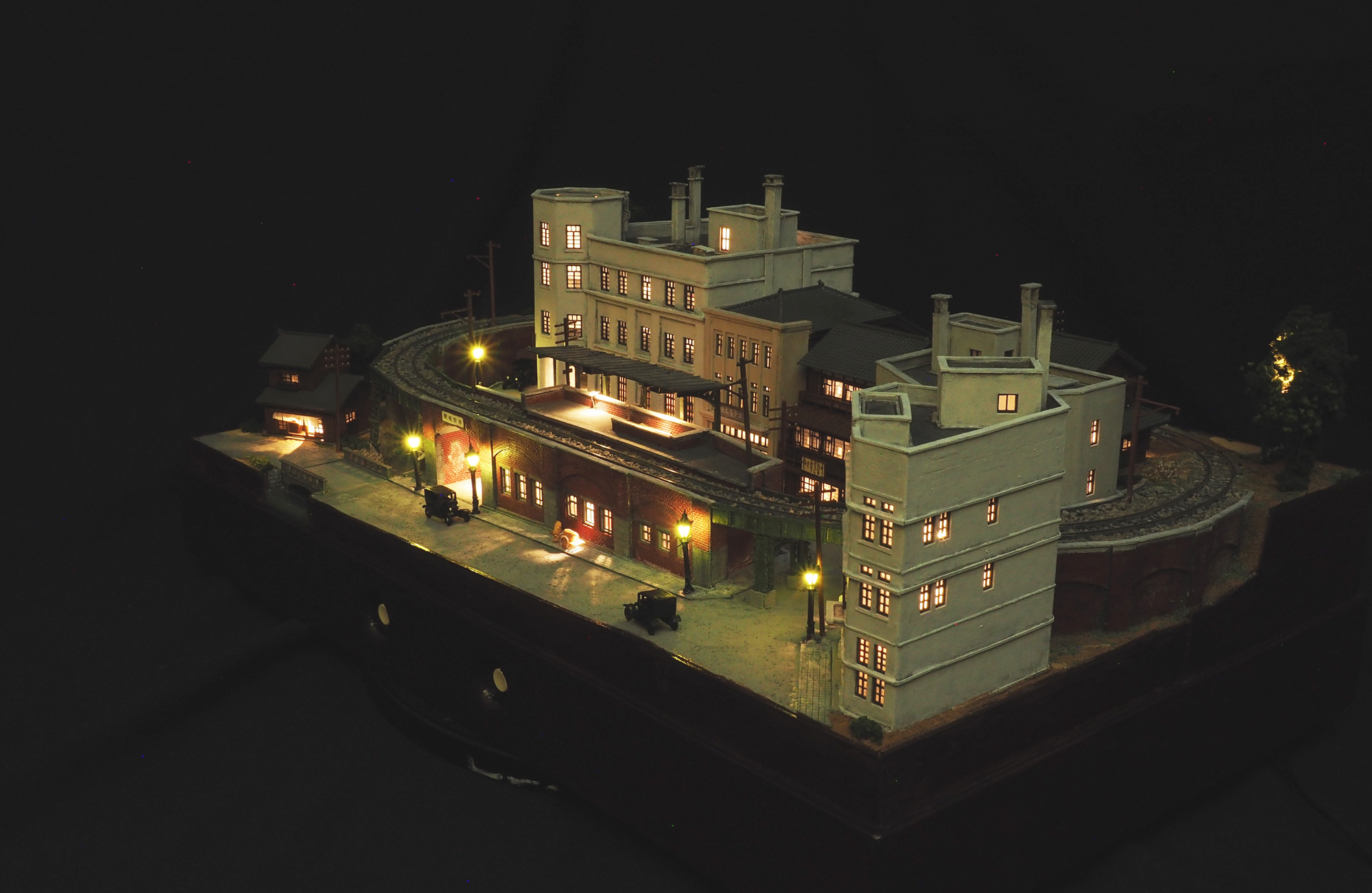

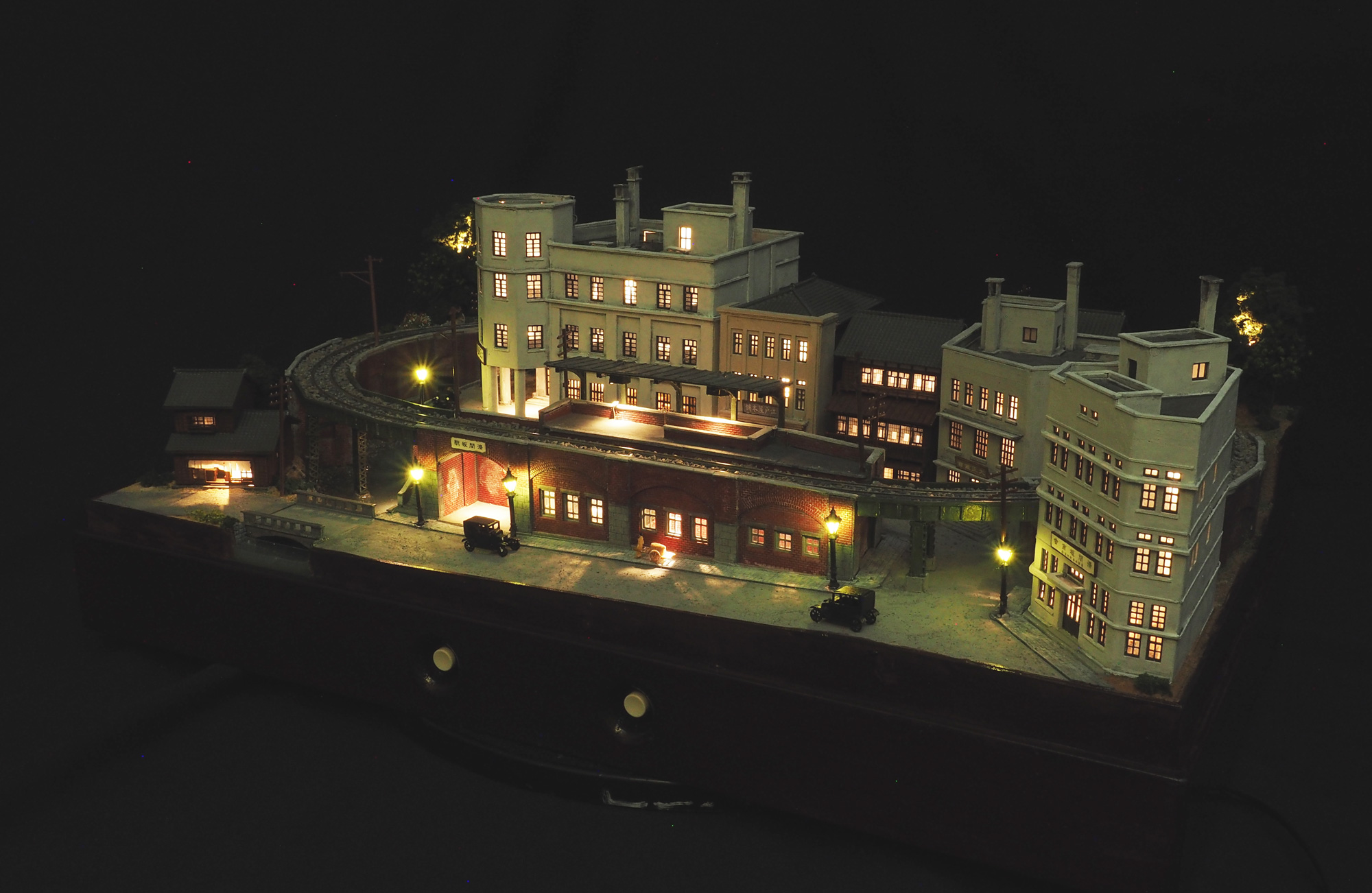

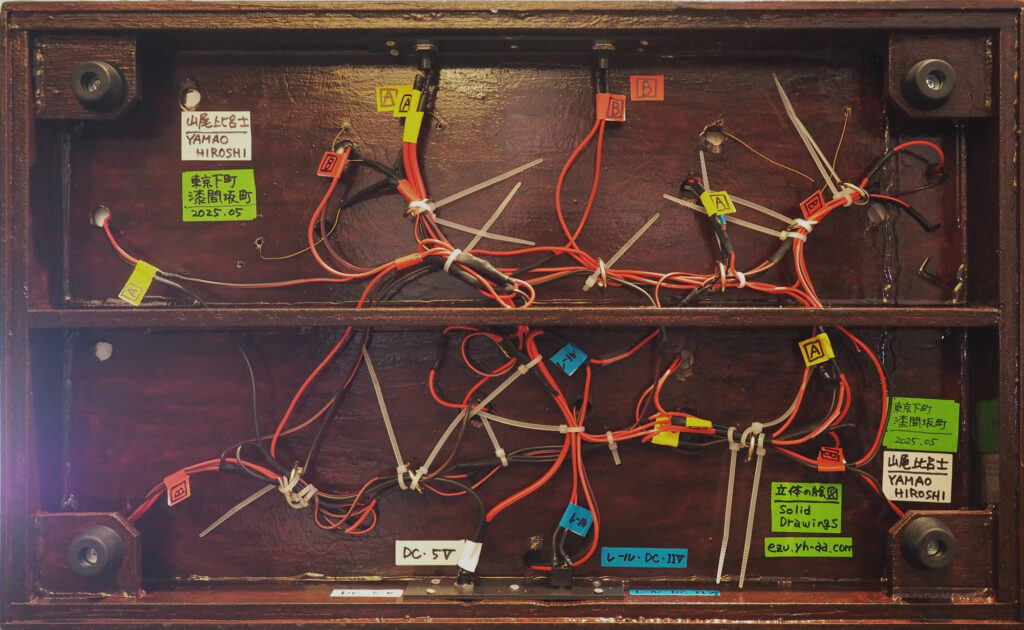

- 照明:LED(3mm砲弾型、色数種) + CRD(E-153) + 560オーム抵抗 を1セットとして、計30セットほどを全て並列接続
- 台座全面スイッチ:オルタネート、2系統(建物内部用、外部ライトアップ用)
- 街路灯:evemodel 製(LEDライト・L=30mm)、付属の1Kオーム(1,000オーム)抵抗、CRD(E-153)を1本毎に配線

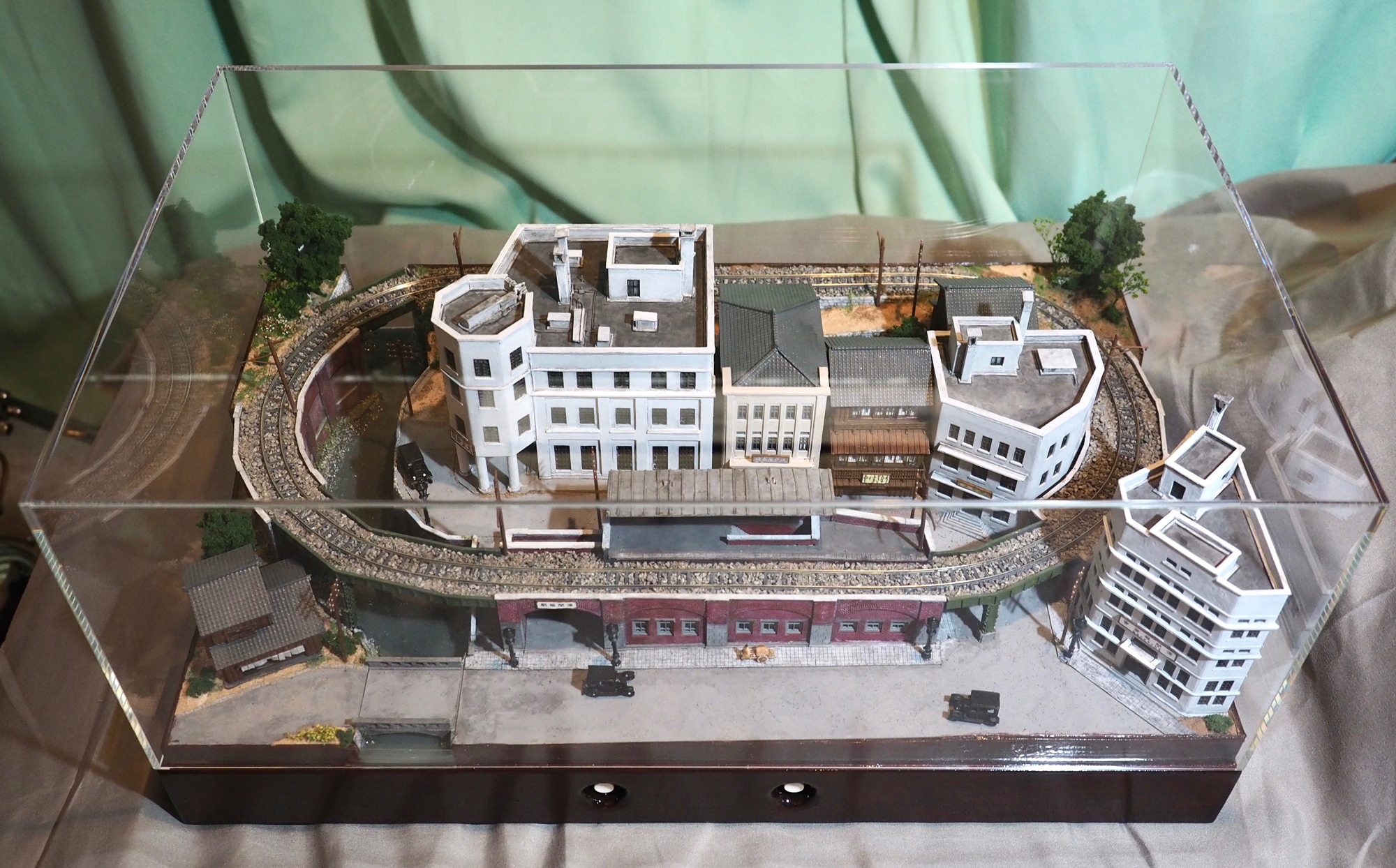

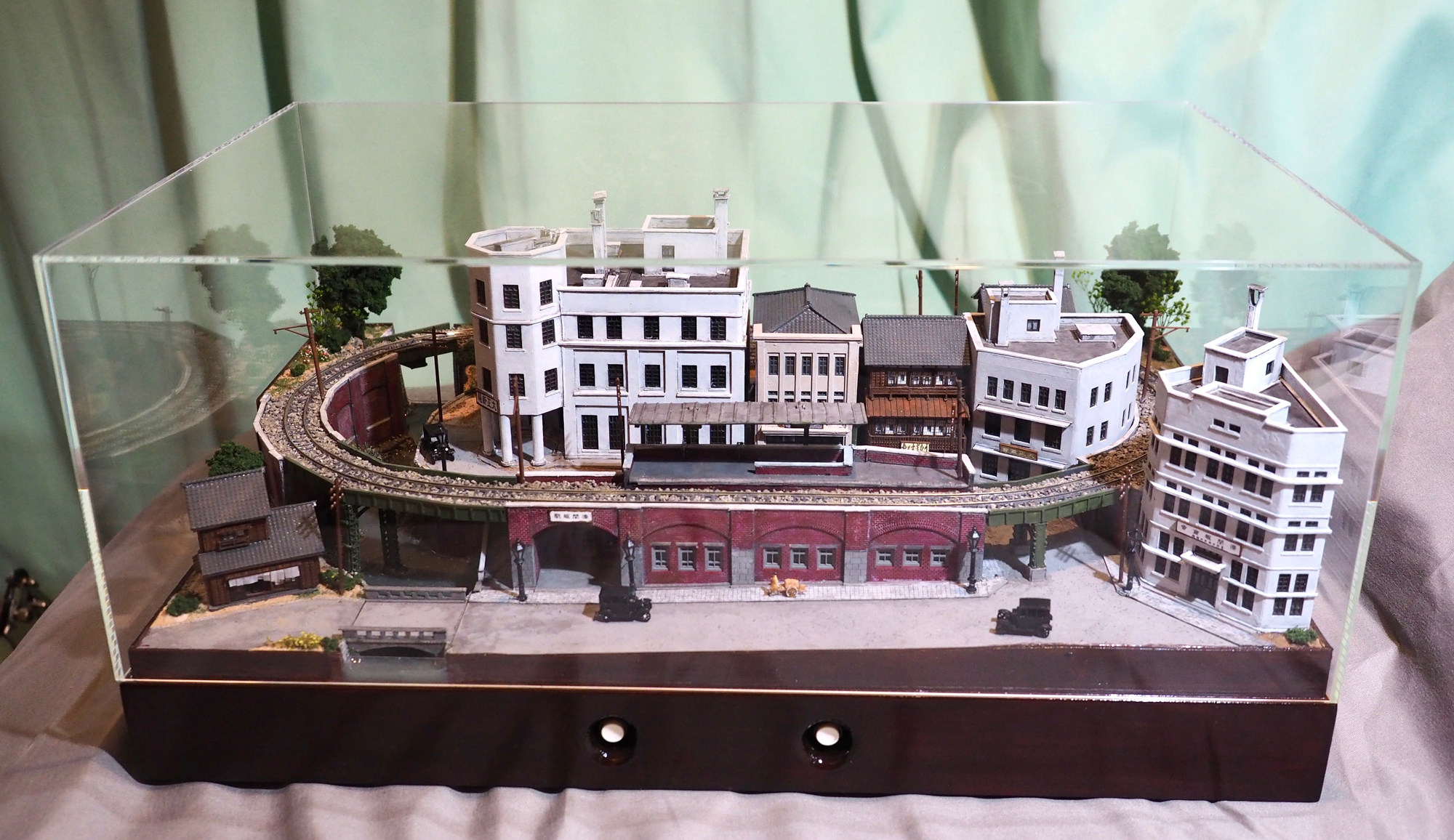

- アクリルケース(3mm厚・透明・押出し)
:アクリルショップ はざいや(株式会社菅原工芸)カスタムオーダー品
- 販売の際の付属品:
- アクリルケース(3mm厚・透明・押出し)付属
- 照明用のACアダプター(5V・2.5A)付属
- パワーパック用 DCフィーダーコード N用 付属(TOMIX 5534 DCフィーダーNのレール側プラグ部分を別のプラグに交換したもの)
- 車両やパワーパック本体は付属しません。(パワーパックは TOMIX 推奨)

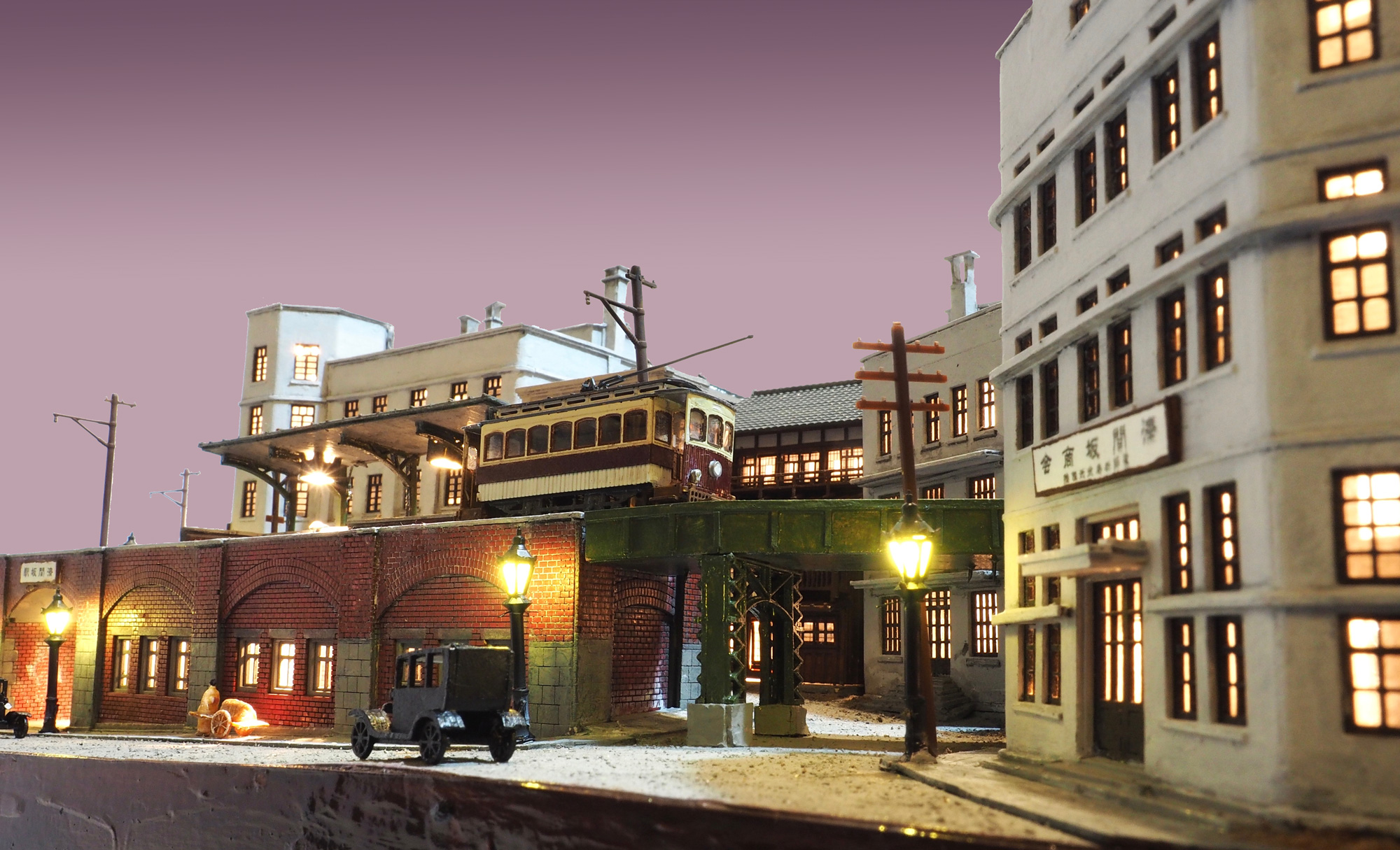

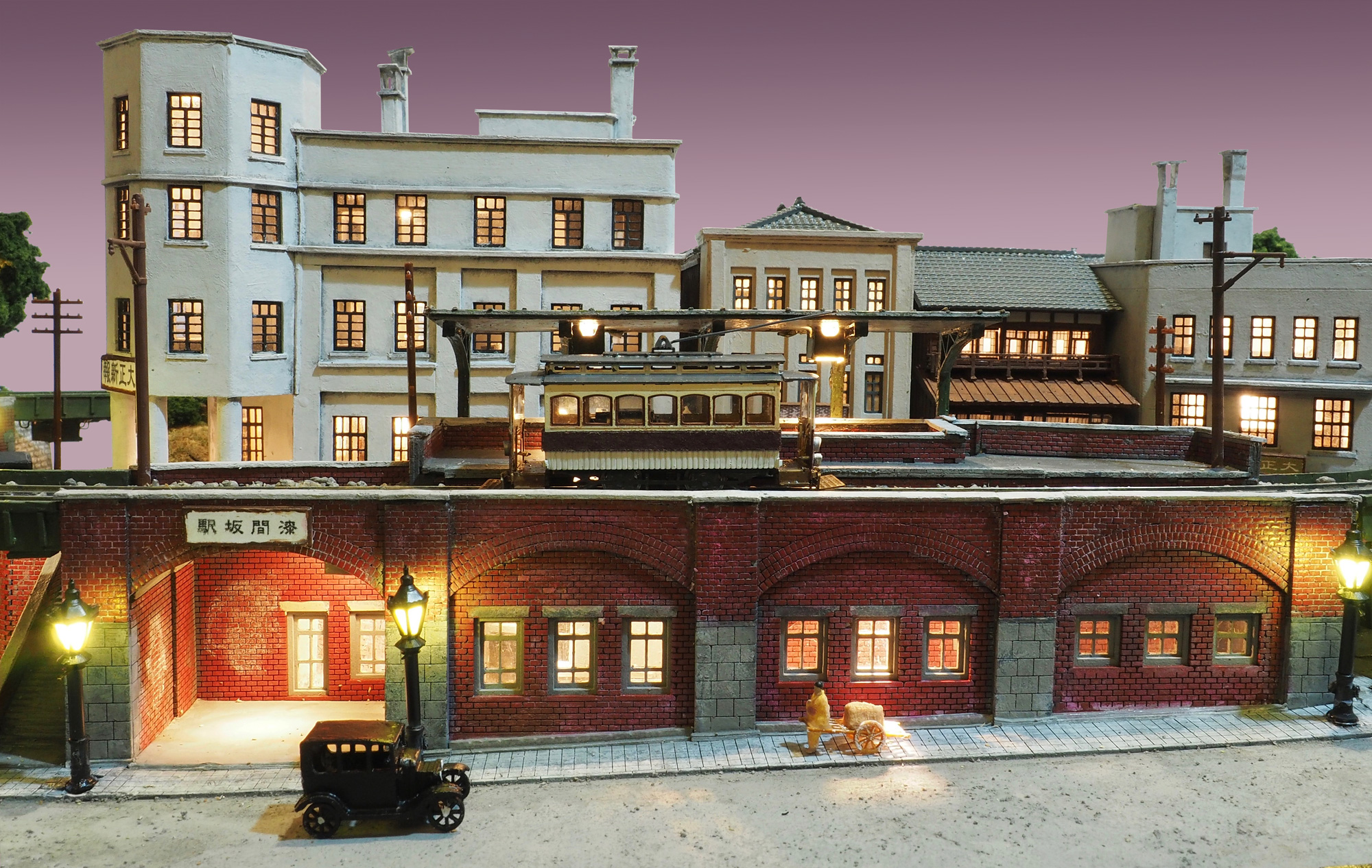

- 画像の車両は、「アルナイン」製のキットを作者が塗装・組立したものです。
(車両は付属しません)
- Main Materials:
- Styrene board (for adjusting ground levels; 2–5 mm thick; available from Sekaido and Tokyu Hands)
- Cardboard (approx. 1 mm thick; available from Sekaido; “White Cardboard A3” by ORION Co., Ltd.)
- Illustration board (1–2 mm thick; used for building bases and the base for the rails)
- Cyanoacrylate adhesive (instant glue)
- Thin type: “Instant Glue 1 g × 3, Quick-Drying Type,” available from Can★Do
- Medium-viscosity type: “Instant Glue 2 g × 2, Multi-Purpose Type,” available from Can★Do
- Other types as required
- Wood (for the base: Lauan plywood, Shina plywood, and Agathis solid wood)
- Matte acrylic paint: Holbein “Acrylic Gouache”
- Paper clay (for representing rocks, adjusting differences in ground level, and creating cliffs): “Hearty Clay Brown”
- Sand and stones for the ground: Morin “Real Sand” and “R Stone,” available from Sakatsu Gallery
- Stone walls 1: Morin “R Stone,” bonded with “Koueidou Stunori” adhesive
- Stone walls 2: Tsugawa Yokou (津川洋行)“(N) SNP-N4 Scenery Paper N – Stone Wall, Gray,” painted and modified by the artist
- Trees and vegetation
- Foliage Clusters, available from Sakatsu Gallery
- WOODLAND Scenics “TREE ARMATURES” TR1123 (for tree trunks; available from Sakatsu Gallery)
- Koedo Flower Tree (for representing trees; available from Sekaido and Tokyu Hands)
- Various “mini Natur” products (for grass, plants, and shrubs; available from Sakatsu Gallery)
- Roof tiles(瓦): Green Max
- Utility poles: Green Max
- Overhead line poles: Tsugawa Yokou(津川洋行)
- High-transparency resin: “Pro Crystal NEO or 880” (for the stream water)
- Holbein “Crystal Varnish” (for representing ripples on the water surface; applied after the resin has cured)
- Asahipen “Water-Based Varnish – Mahogany” (for the finishing coat of the wooden base), and other materials
- Elliptical track layout for the tram:
- PECO Flexible Track (for N scale, W 9.5 mm), SL-300F, Code 55
- Track Spikes (Shinohara HO N3 Spikes, discontinued)
- Lighting: LEDs (3 mm round, several colors) + CRDs (E-153) + 560-ohm resistors, approximately 30 sets in total, all connected in parallel
- Main switch on the base: Alternate-action type, 2 circuits (for interior lighting and exterior illumination)
- Streetlights (not used in some works): evemodel LED lights (L = 30 mm), with the supplied 1 kΩ (1,000-ohm) resistors and CRDs (E-153) wired individually to each light
- Acrylic Case (3 mm thick, clear, extruded acrylic)
: Custom-made by Hazaiya / Sugawara Kogei Co., Ltd.
- Items Included with the Artwork upon Purchase:
- Acrylic case (3 mm thick, clear, extruded acrylic) included
- AC adapter for LED lighting (5 V, 2.0–2.5 A) included
(*The capacity may vary depending on the artwork.) - DC feeder cable for N-scale power packs included
(The rail-side plug of a TOMIX 5534 DC Feeder N has been replaced with a different plug.)
- The rolling stock shown in the images was painted and assembled by the artist using a kit made by Arunine.
(The rolling stock is not included with the artwork.)

d043 東京下町 漆間坂町
Tokyo Downtown, Nanakenzaka-cho
2025
制作・撮影:山尾 比呂士 2025
Production and photography by Yamao Hiroshi, 2025
(OLYMPUS OM-D E-M5 Mark II + M.ZUIKO 12-40mm F2.8 Pro)
2025年(令和7年)5月22日発表
Announced on May 22, 2025
2026年(令和8年)9月26日移転掲載
Published on September 26, 2026, following the site relocation.
