元祖・拾の溪温湶鄕
(がんそ・じゅうのたにおんせんきょう)
Jyunotani hot spring resort — Ganso (Where It Began)
d047
制作年:2026
Mixed media
個人蔵・日本|Private Collection, Japan
元祖・拾の溪温湶鄕
(がんそ・じゅうのたにおんせんきょう)
Jyunotani hot spring resort — Ganso (Where It Began)
d047
制作年:2026
Mixed media
個人蔵・日本|Private Collection, Japan

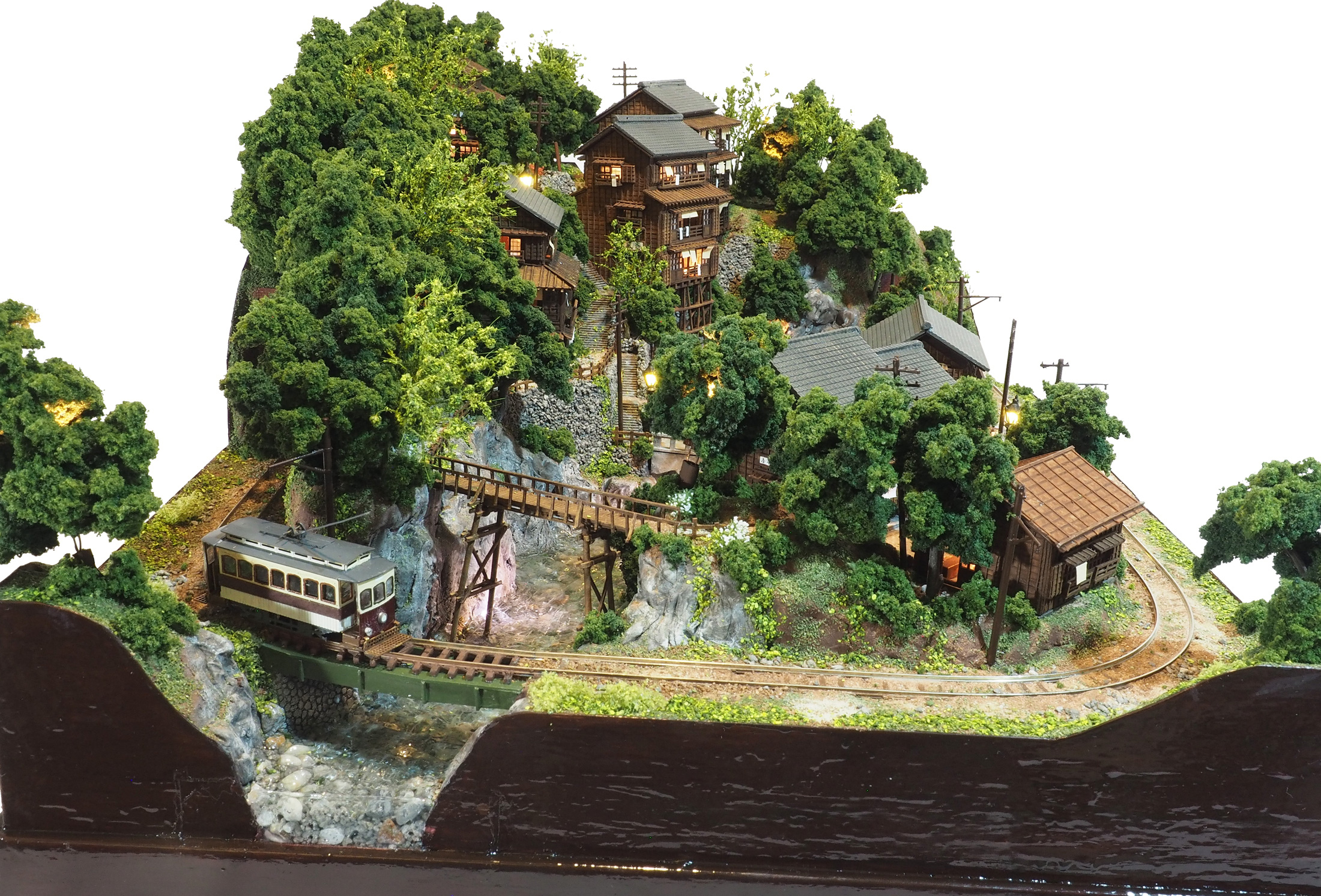

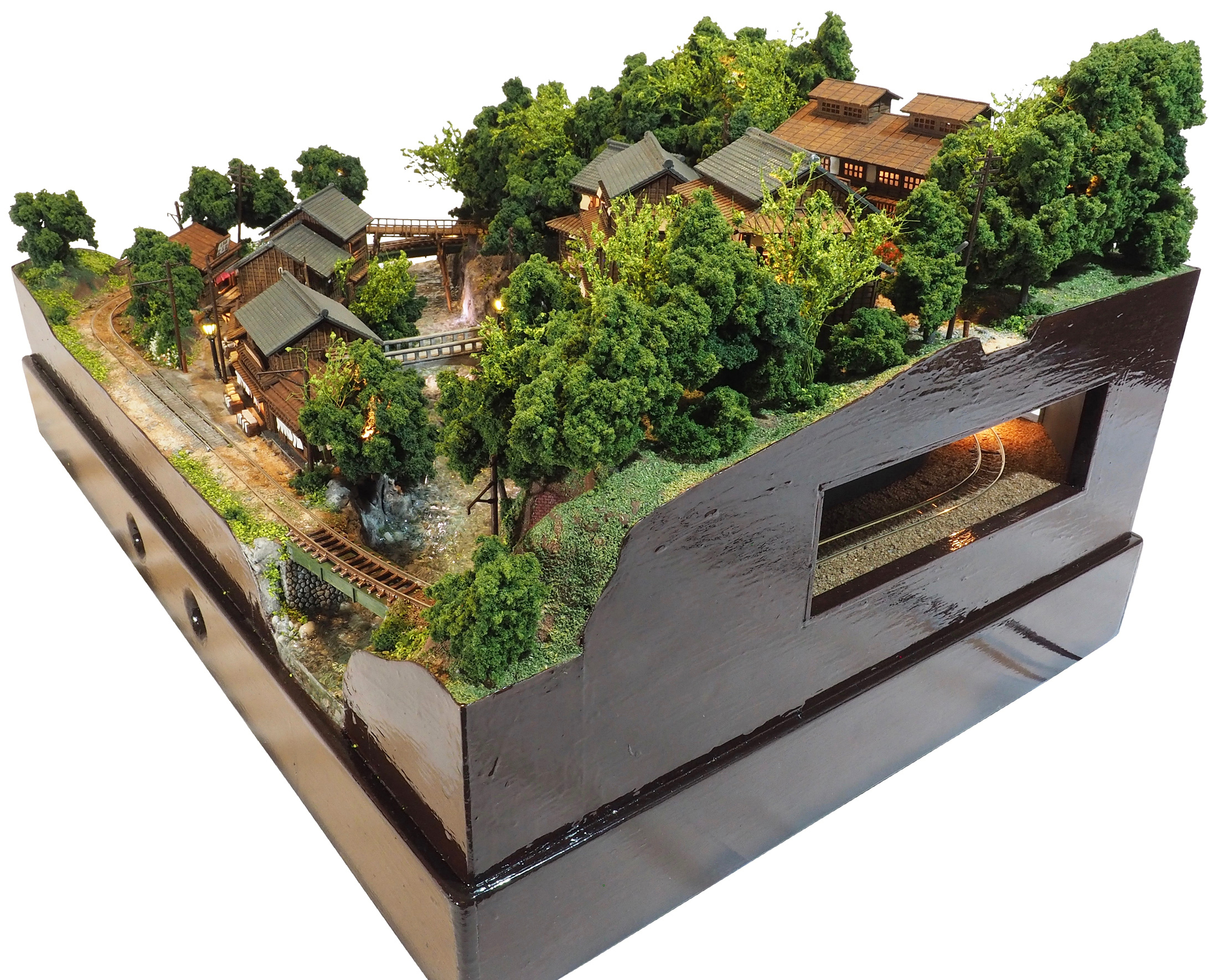

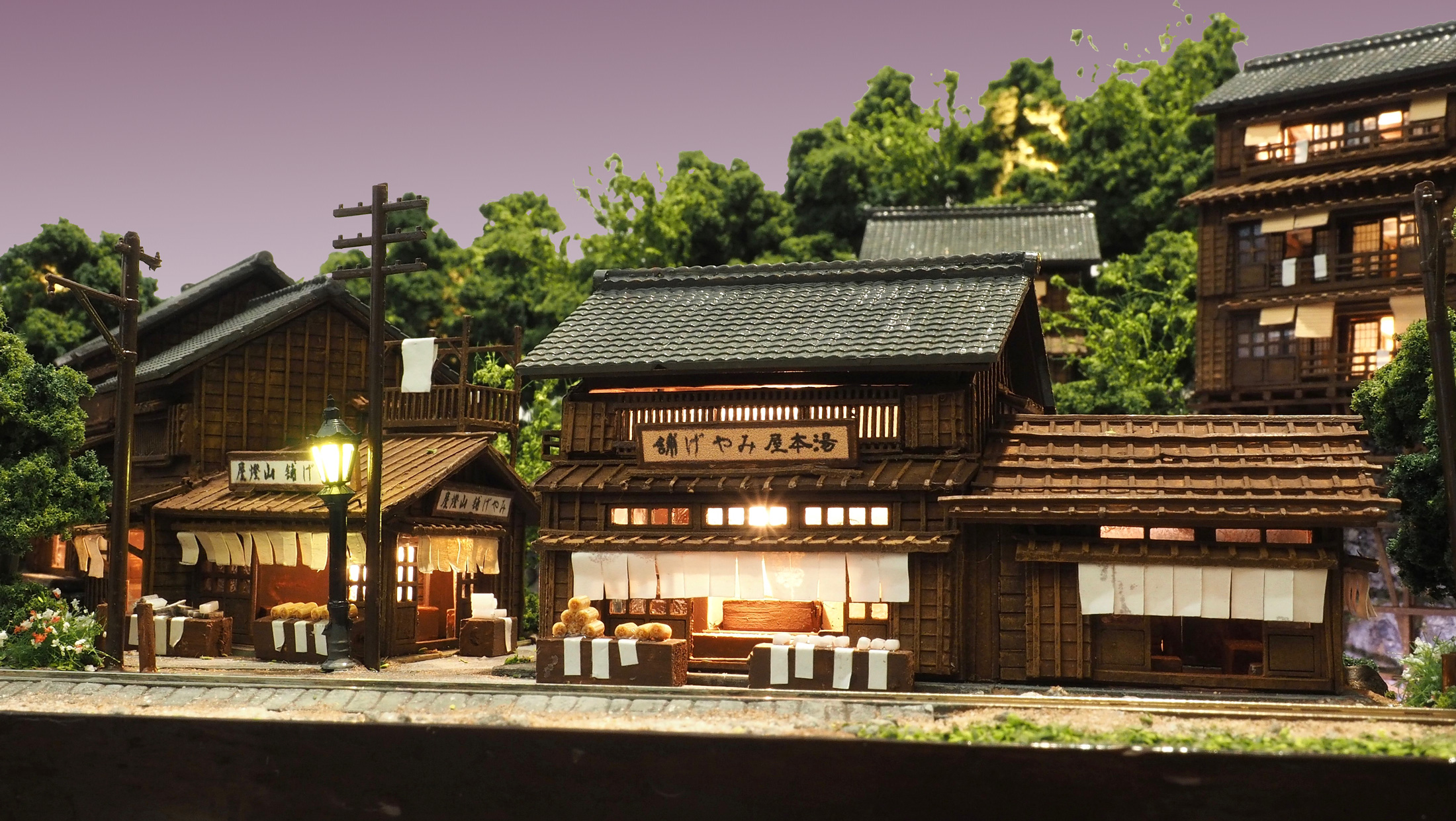

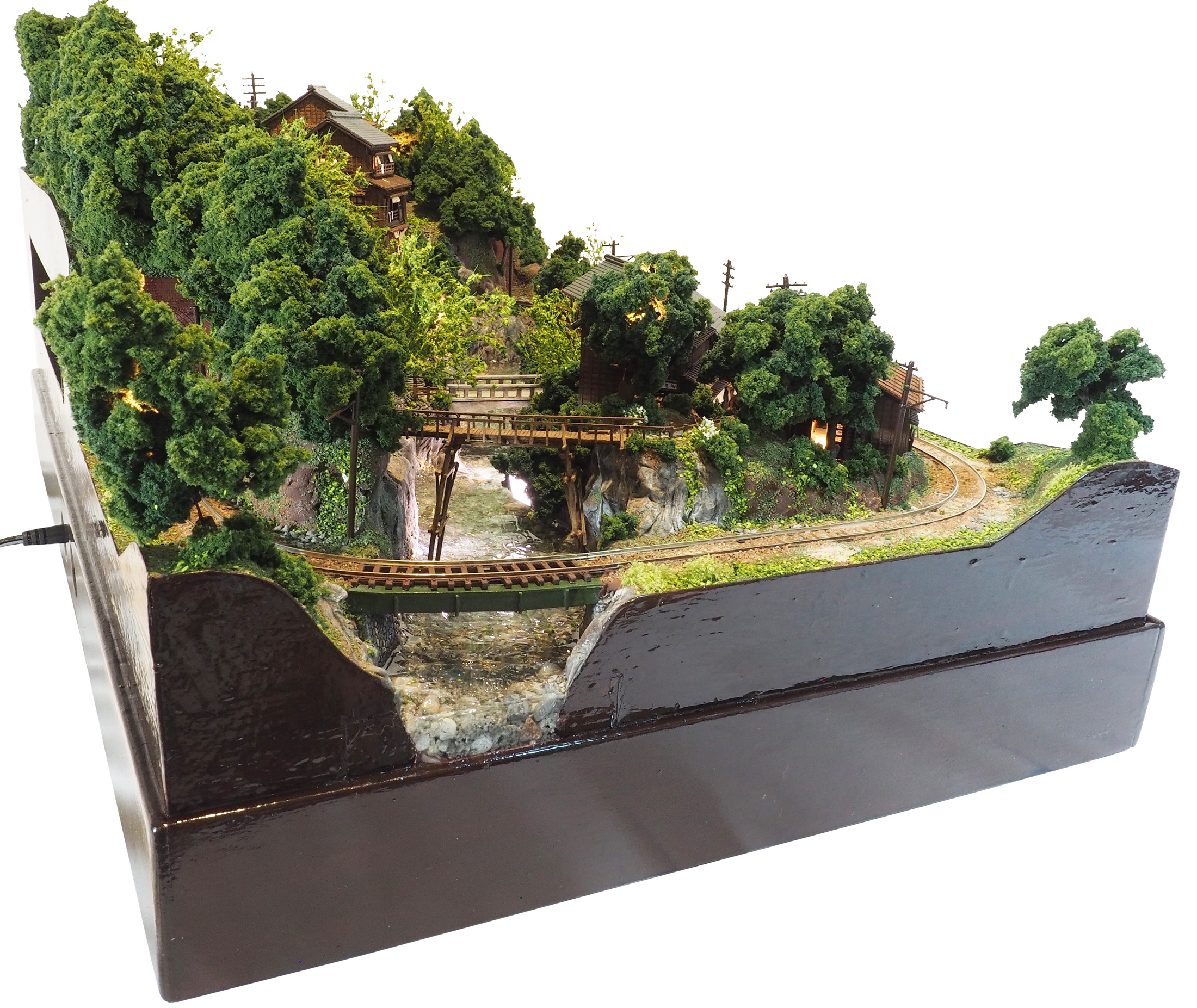

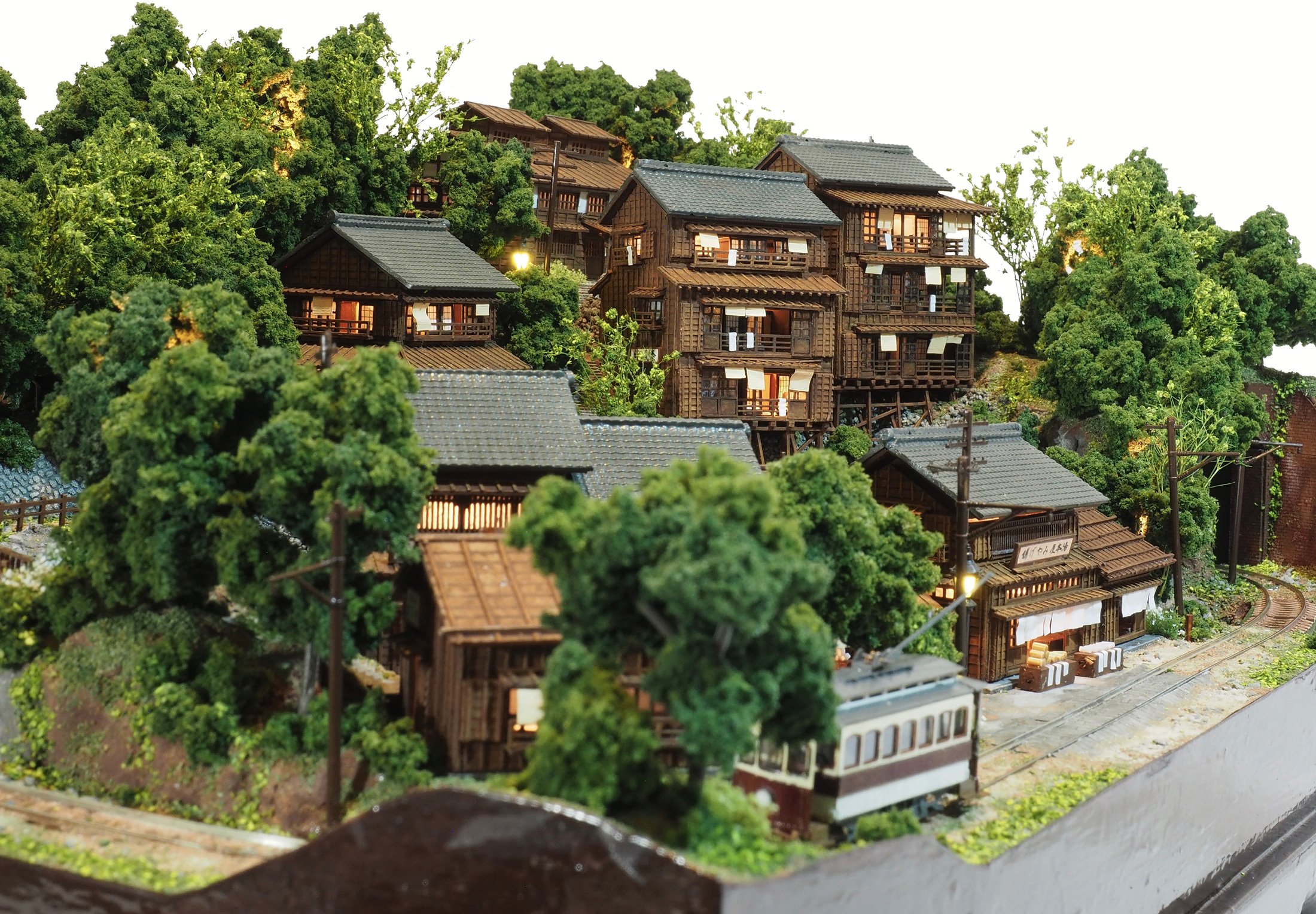

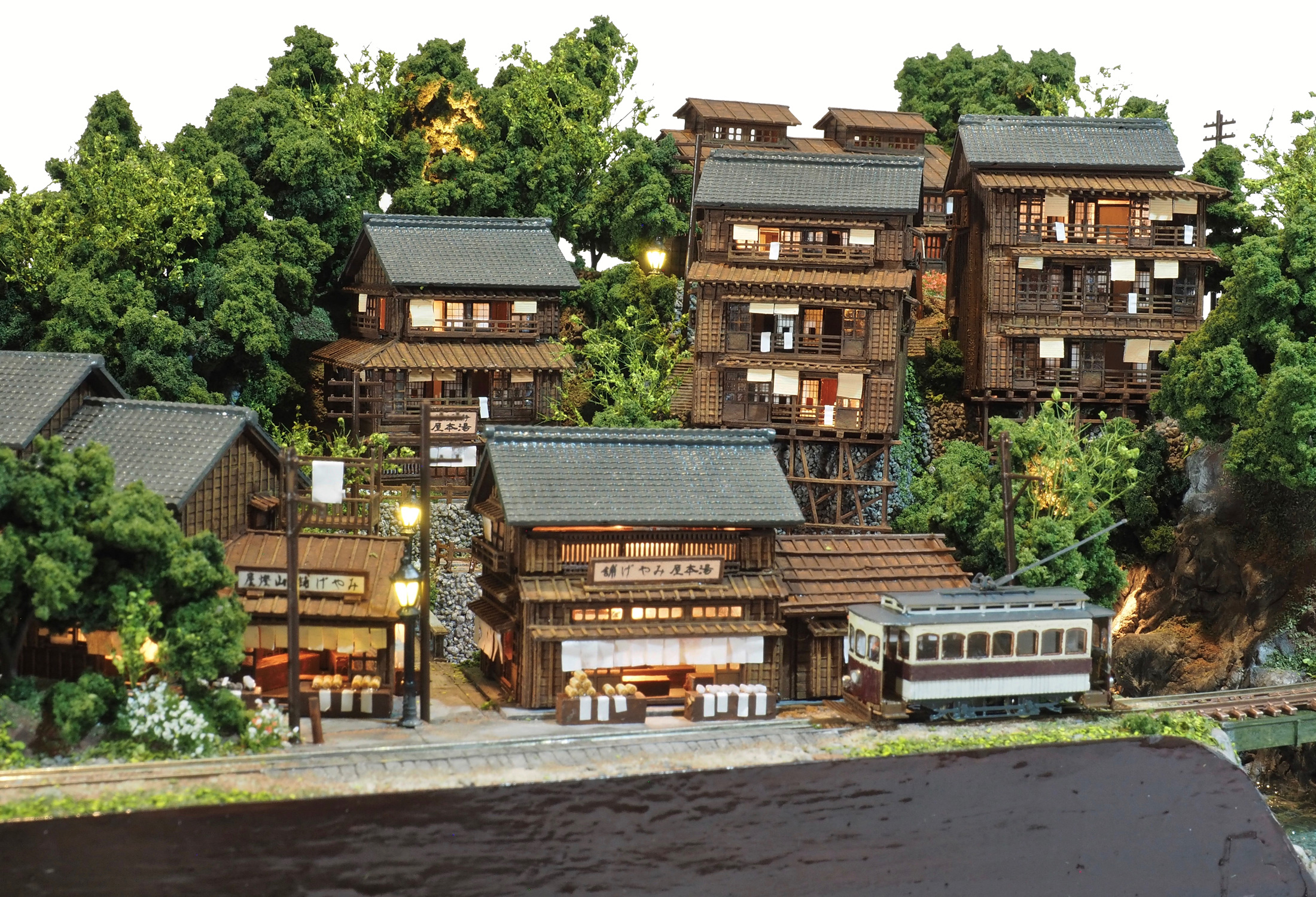

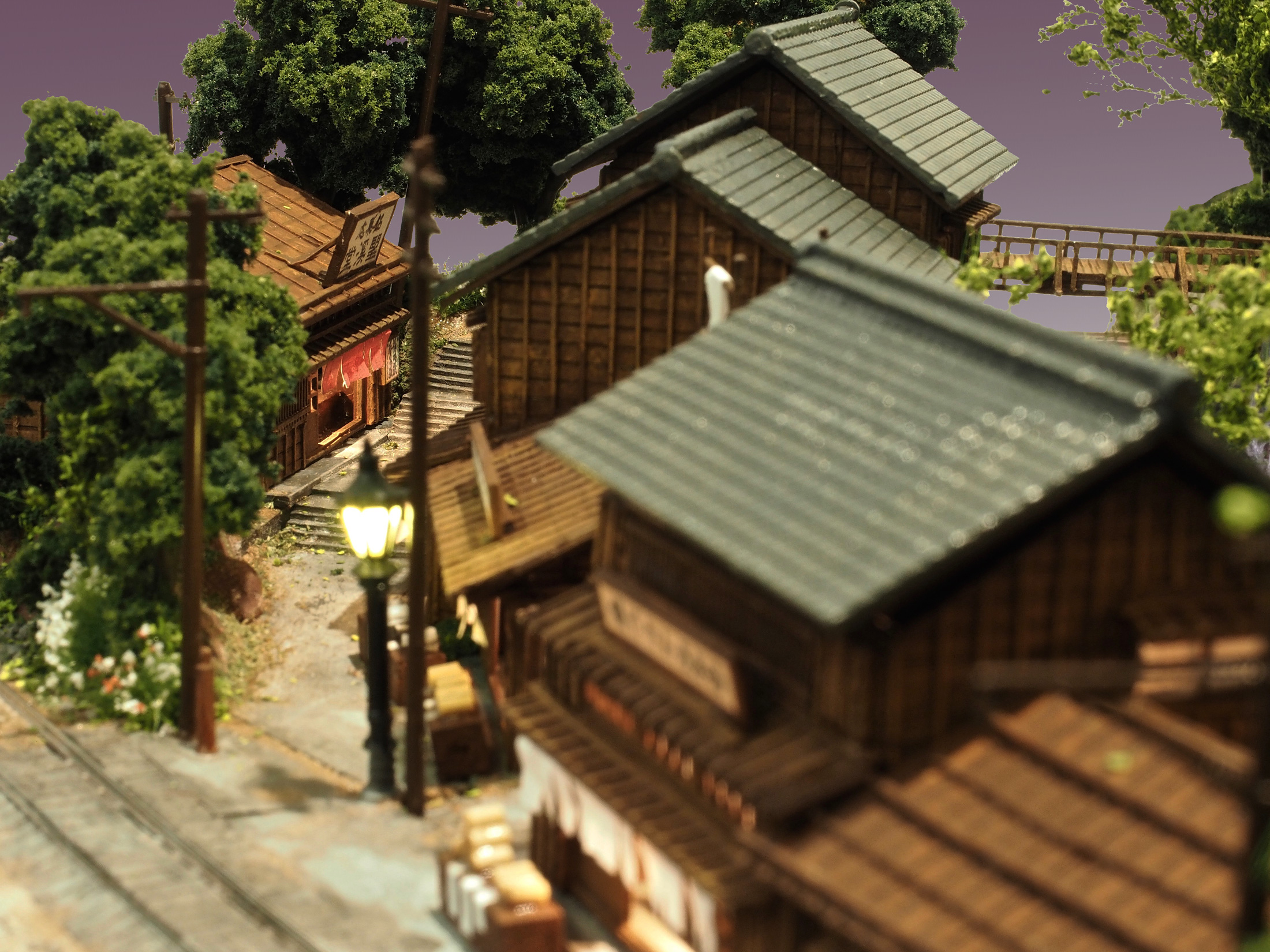

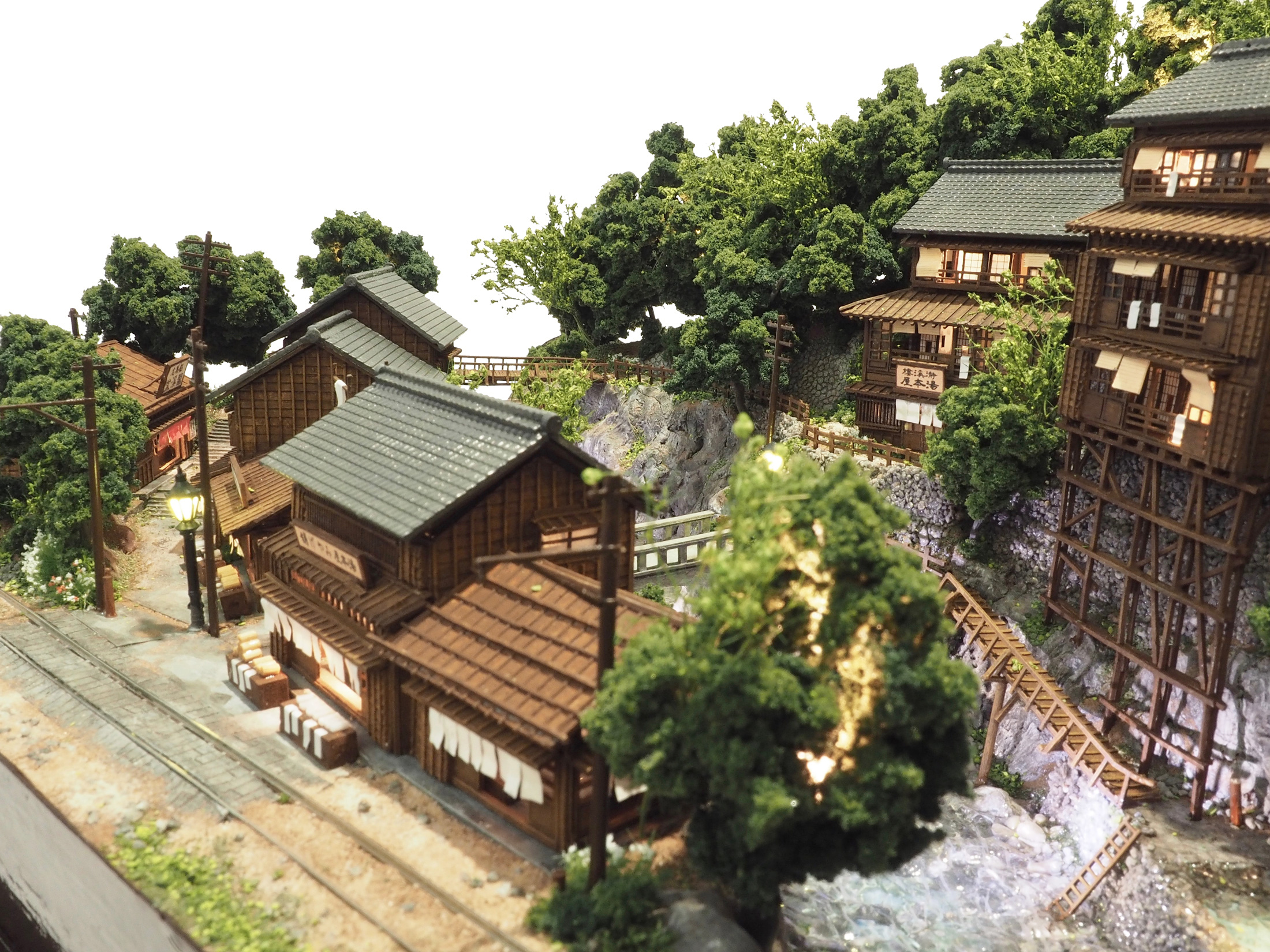

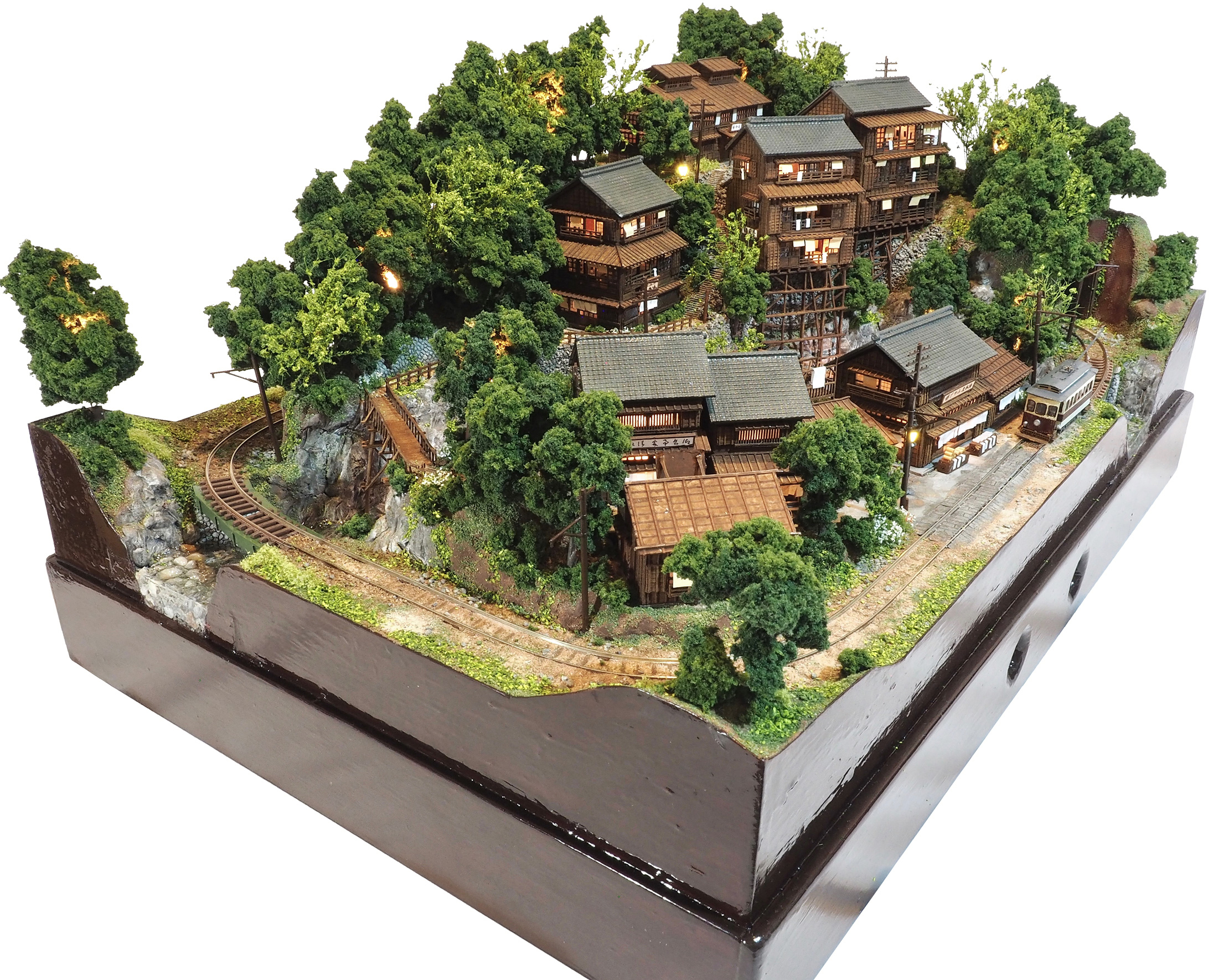

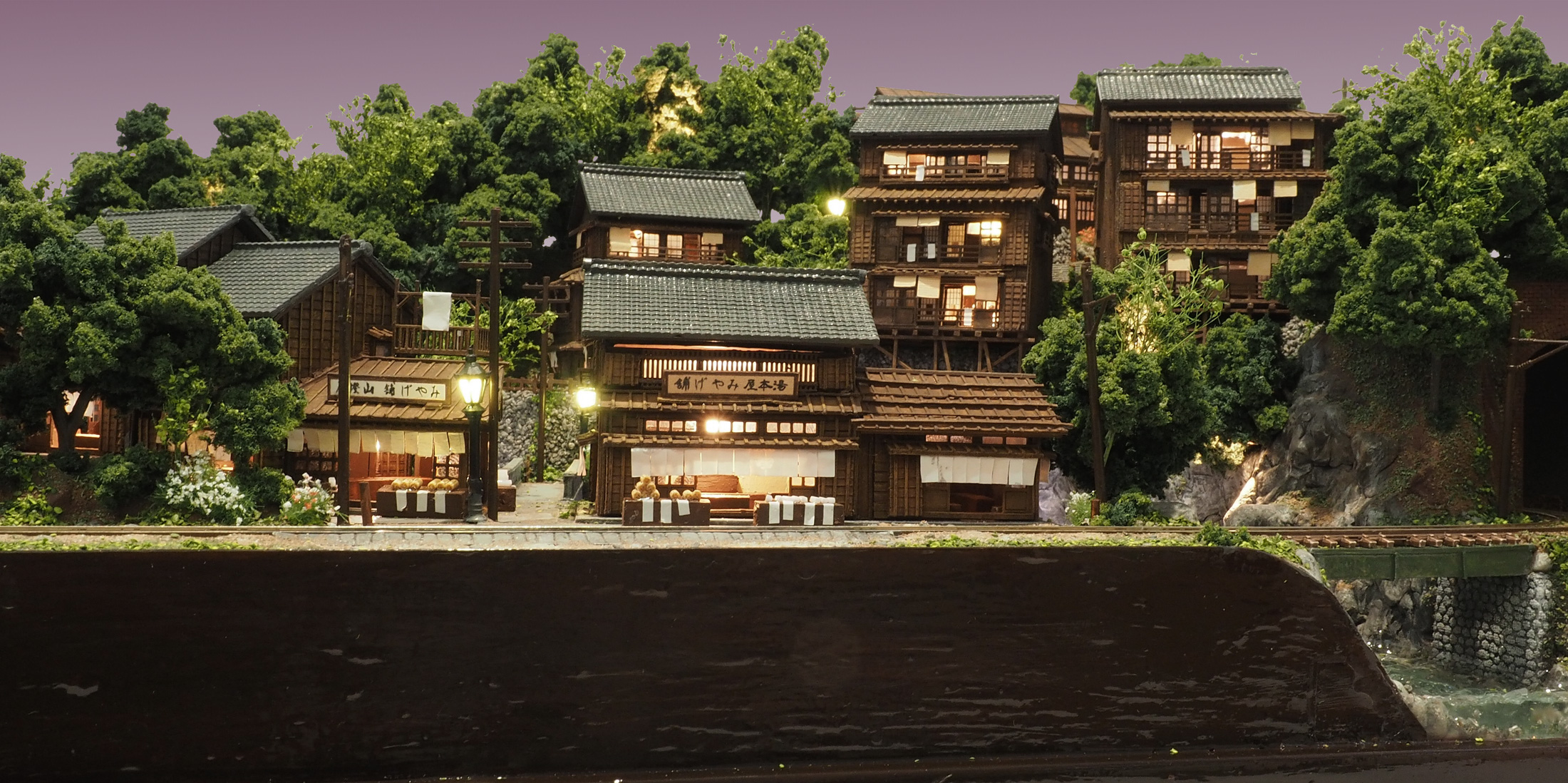

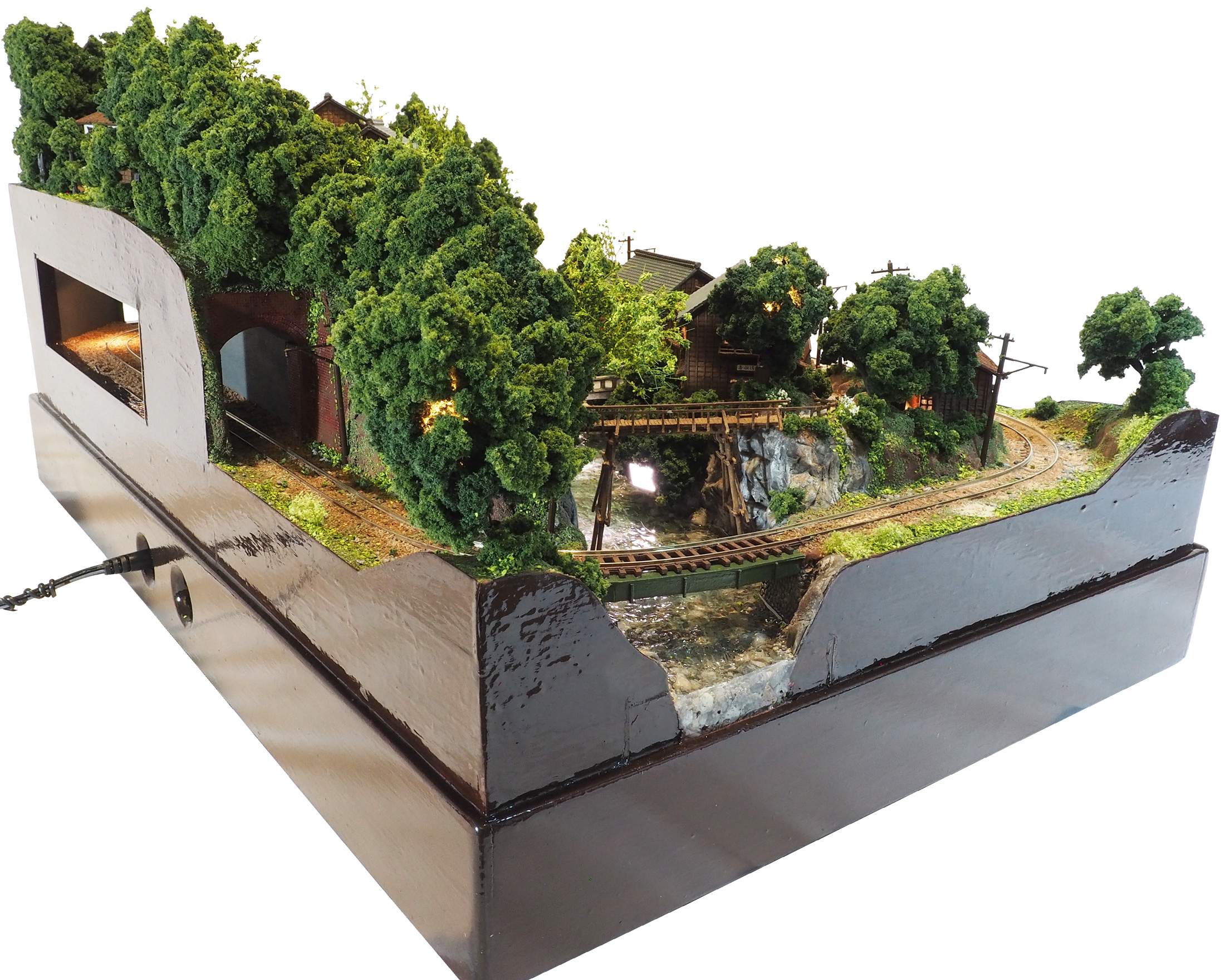

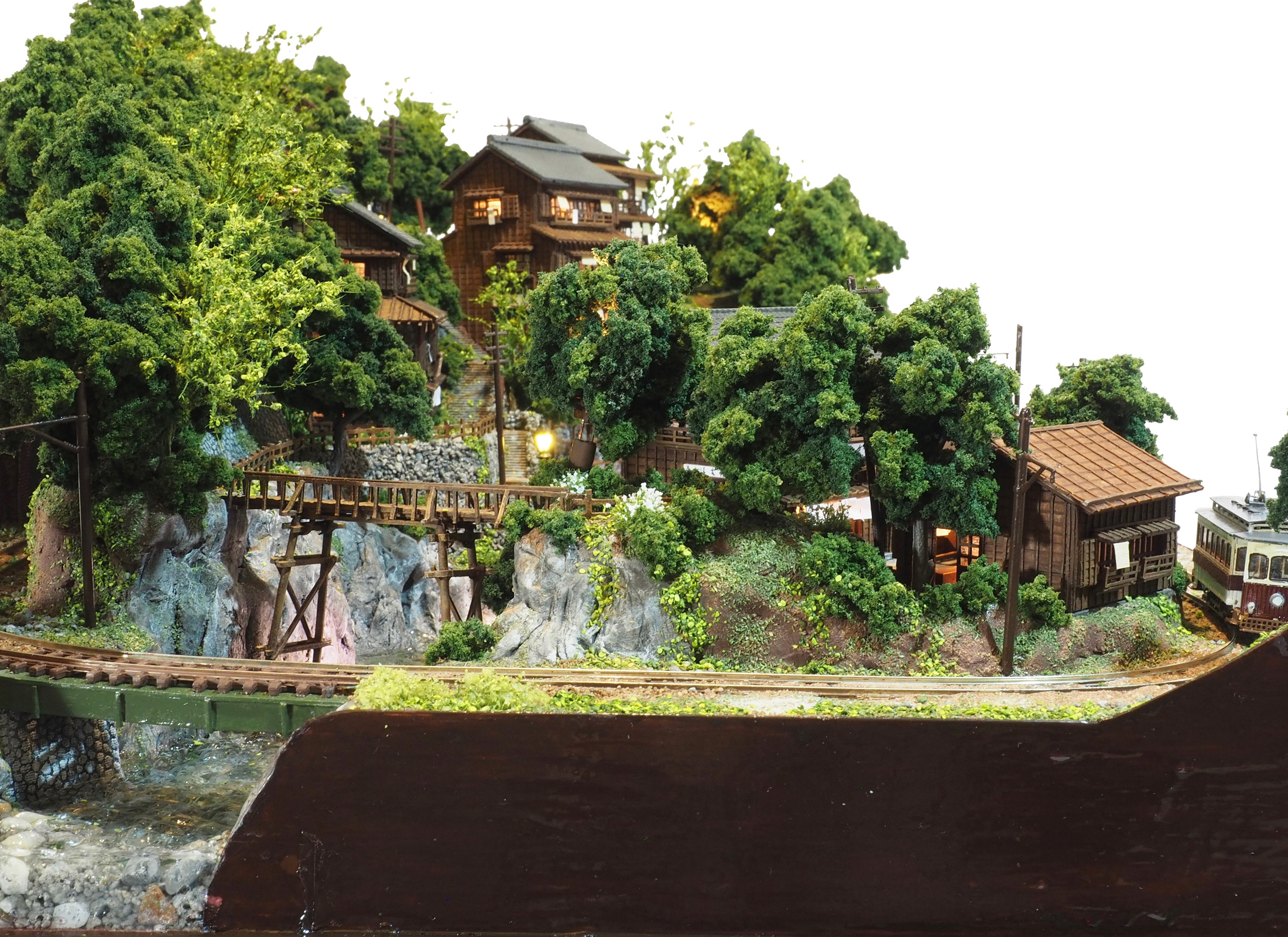

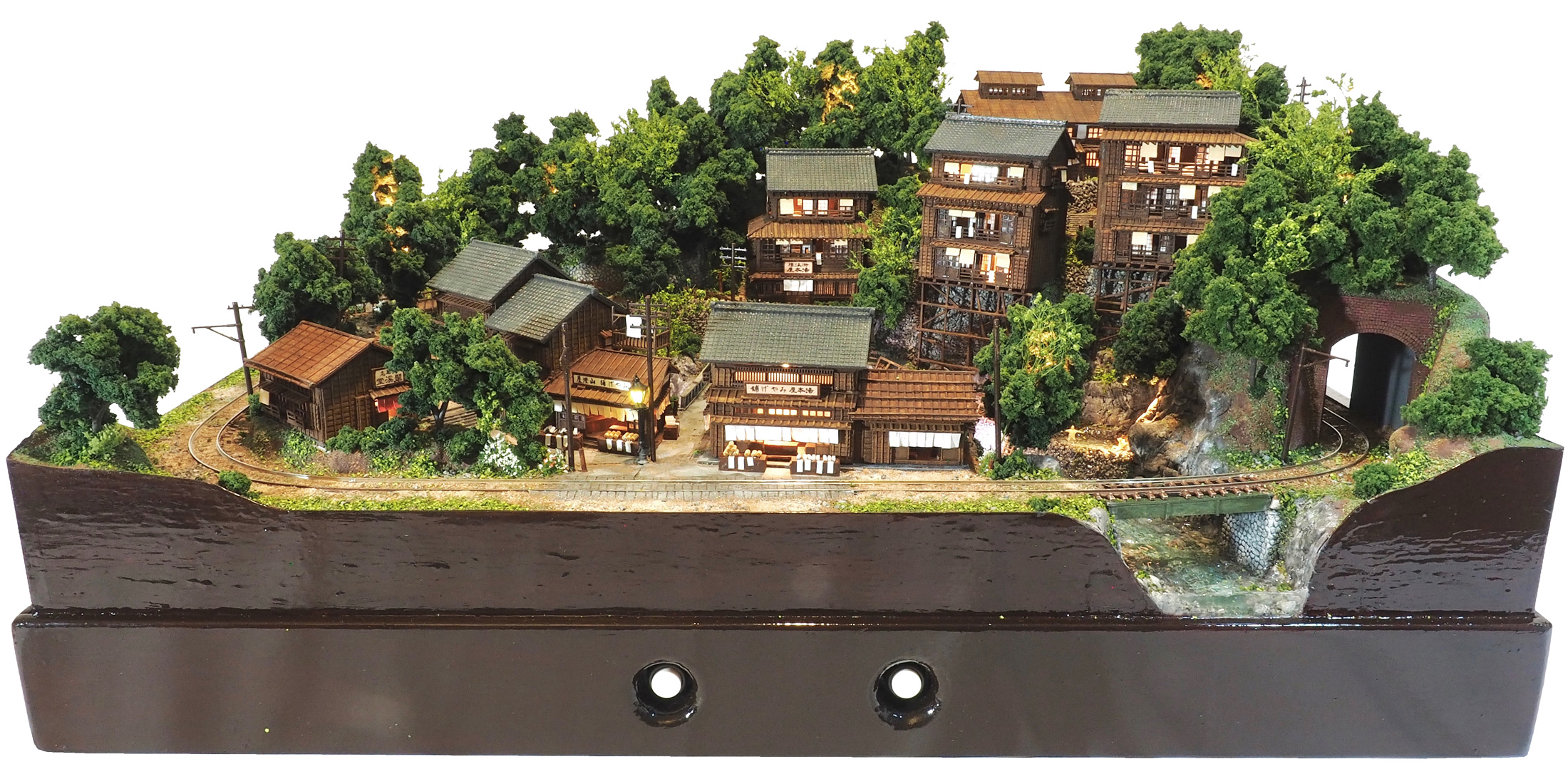

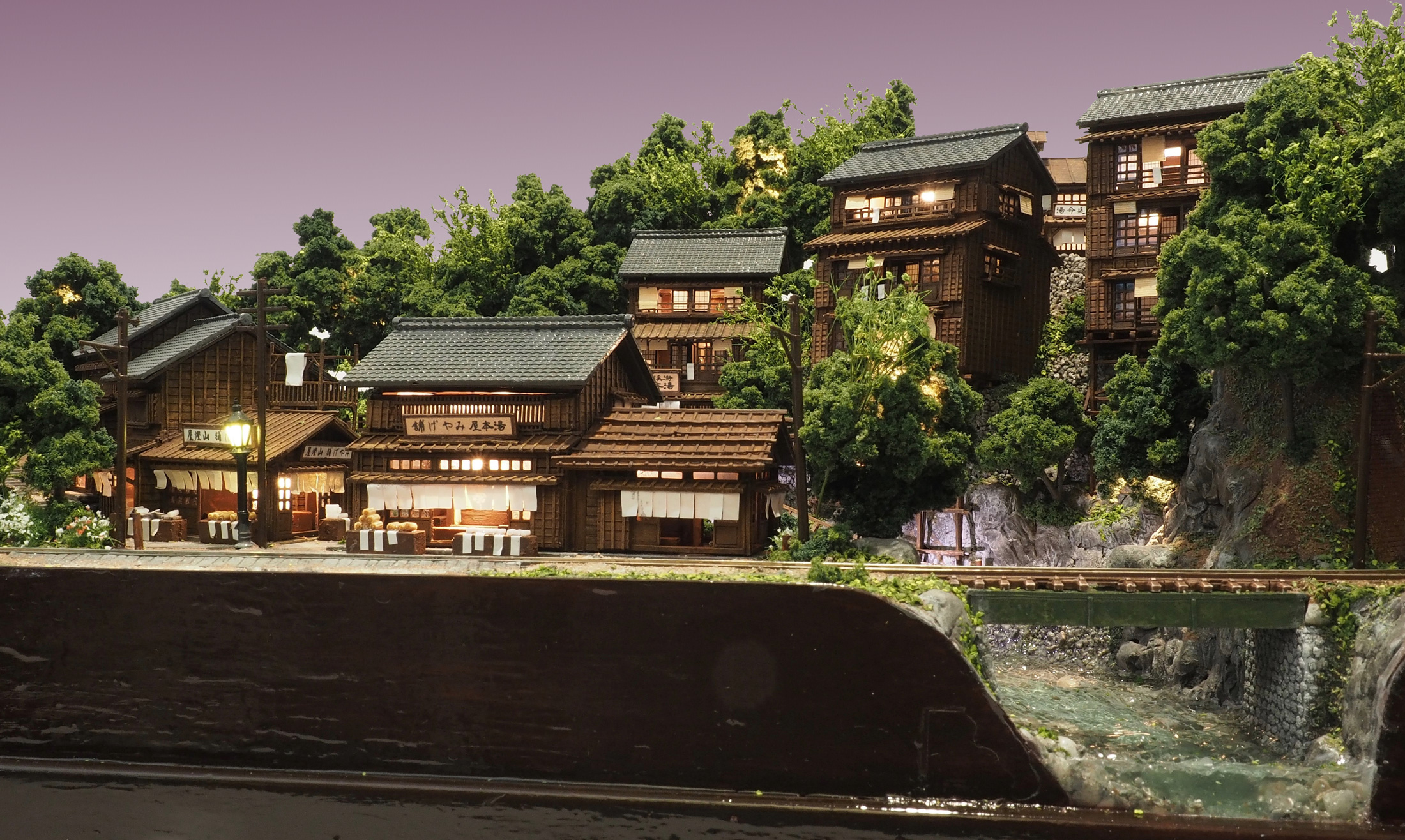

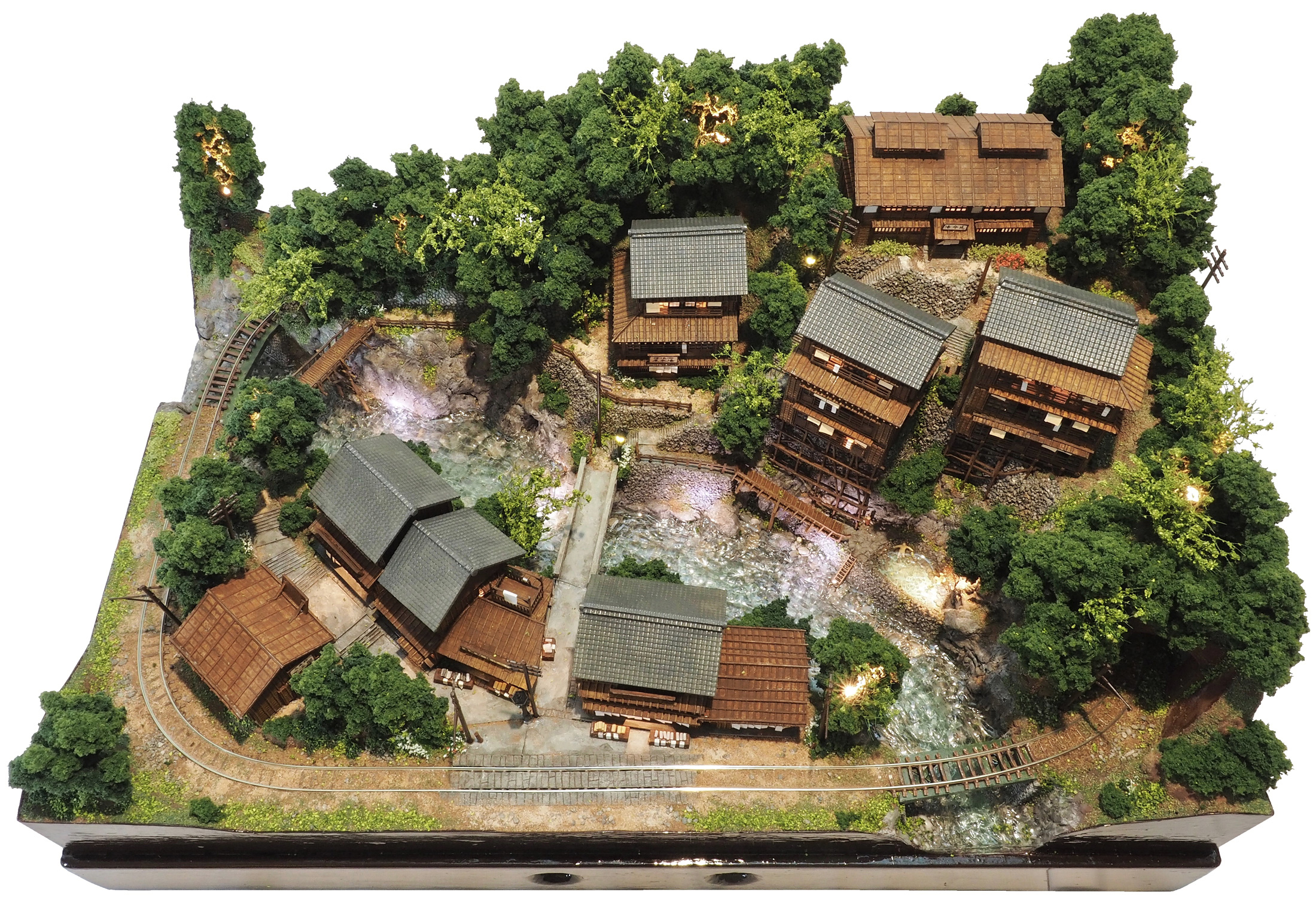

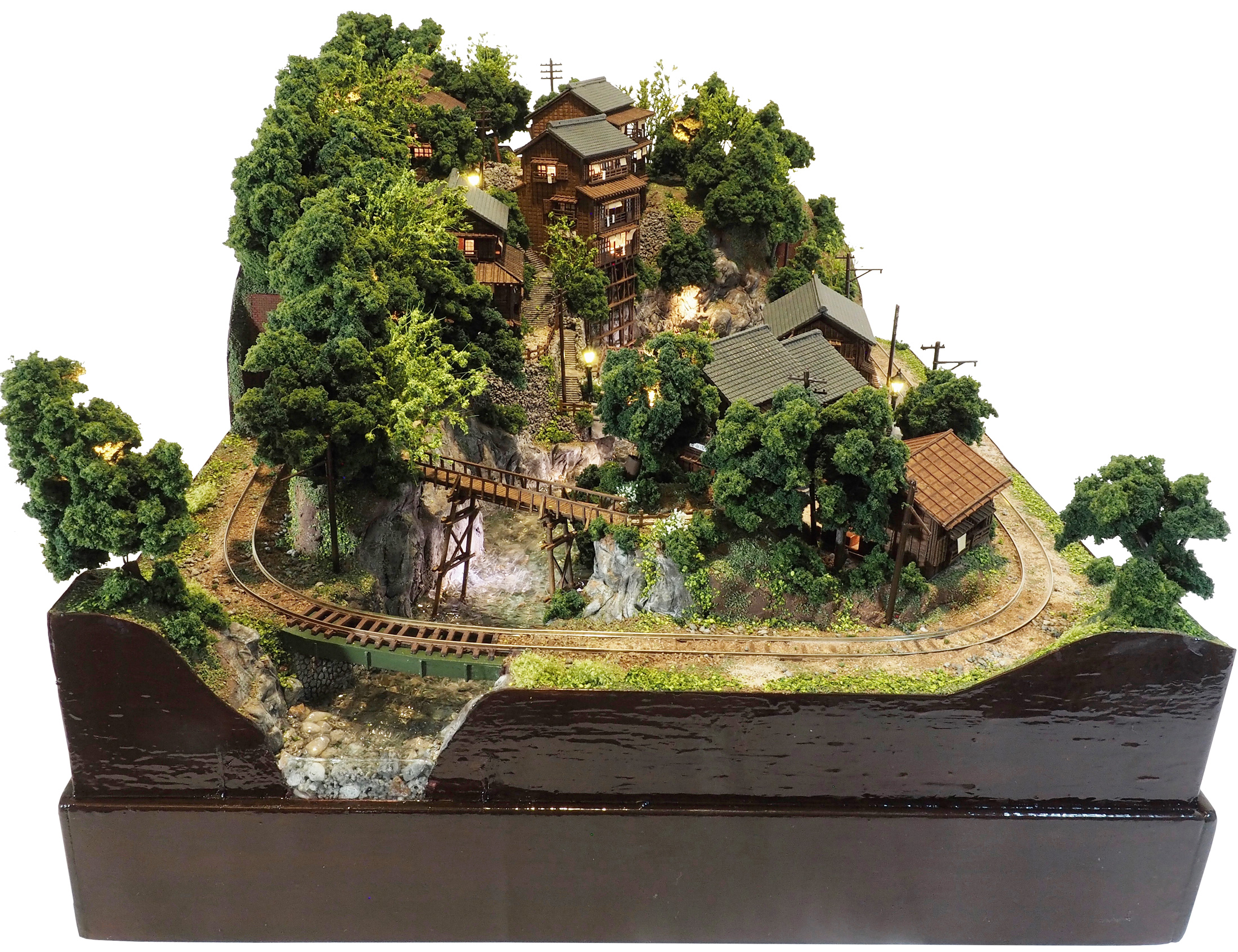

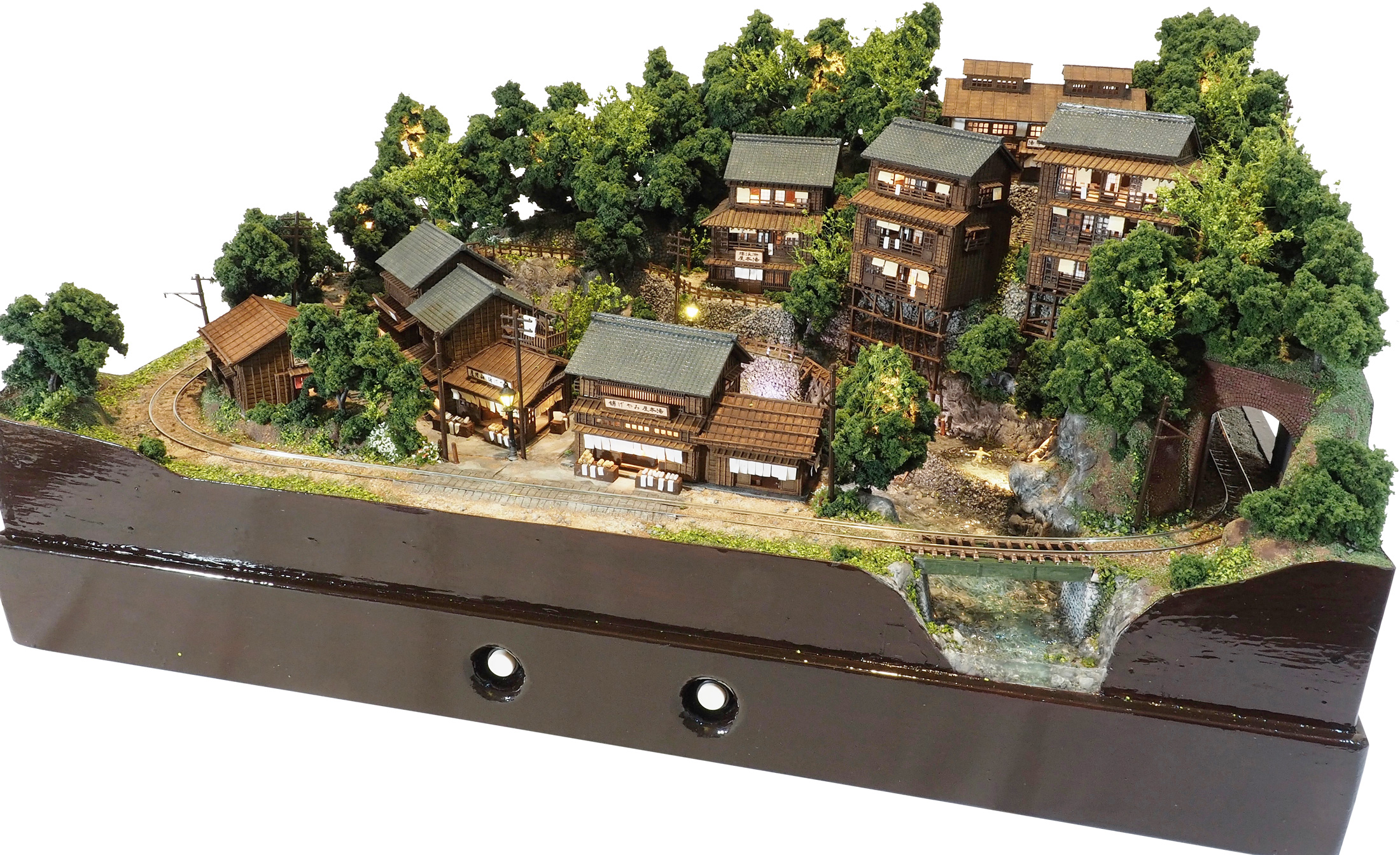

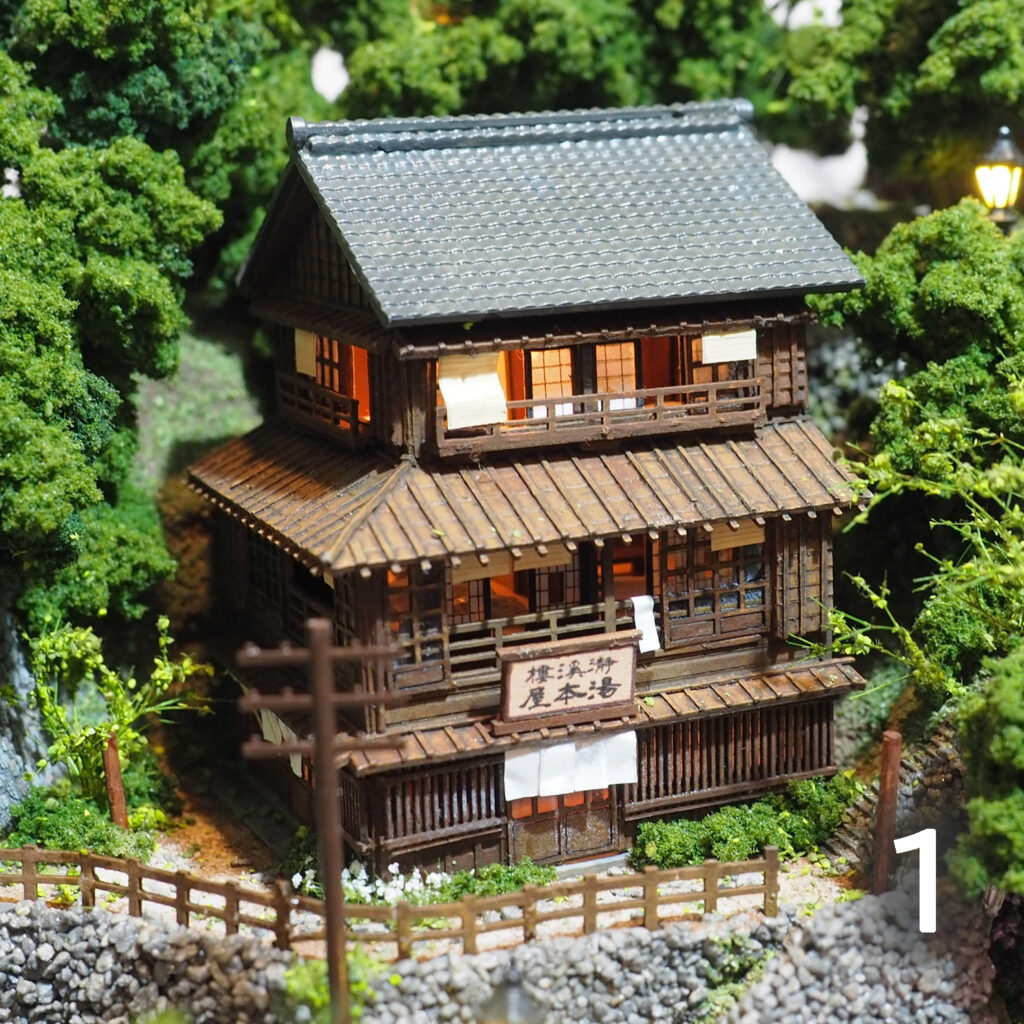

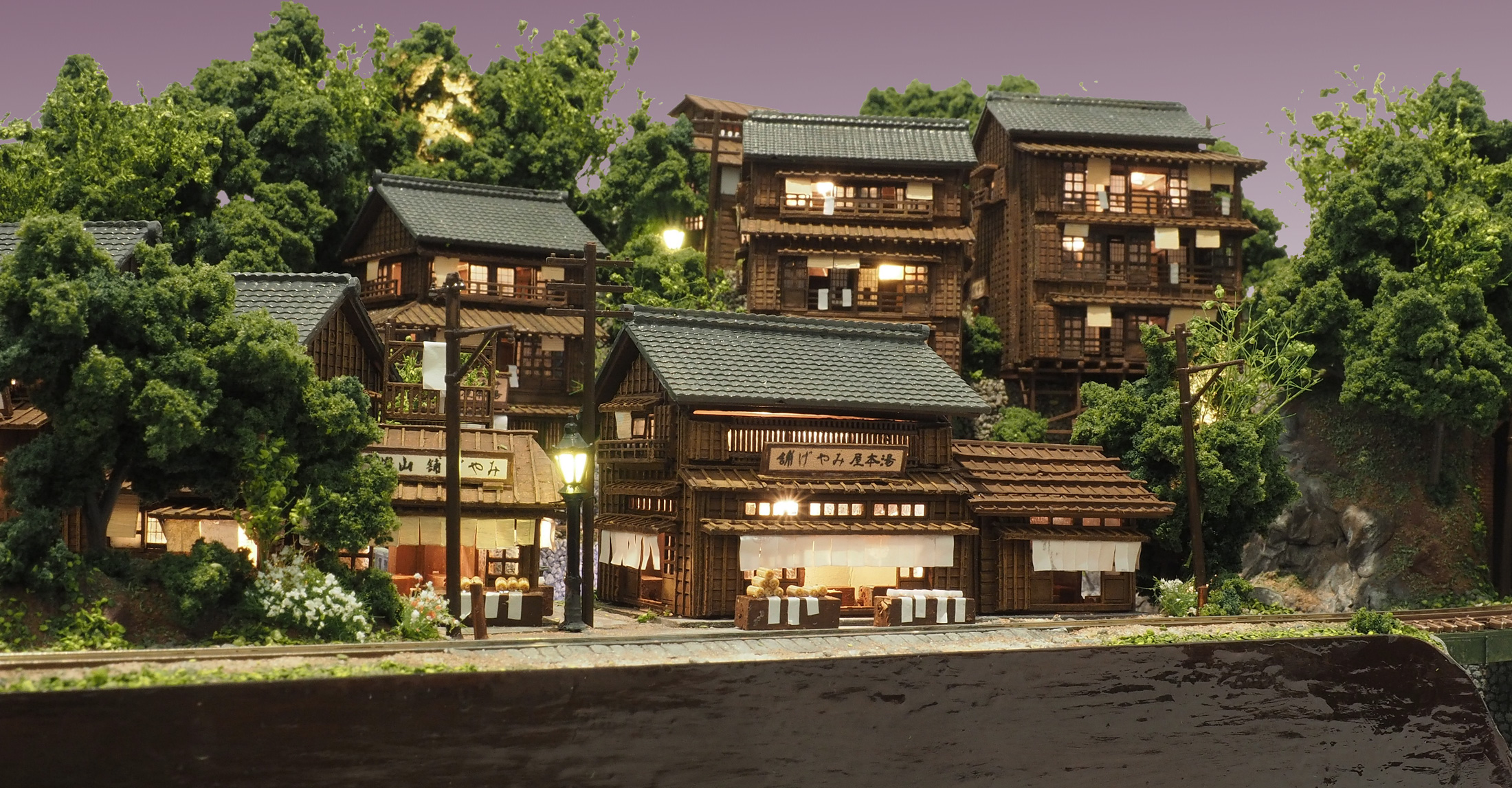

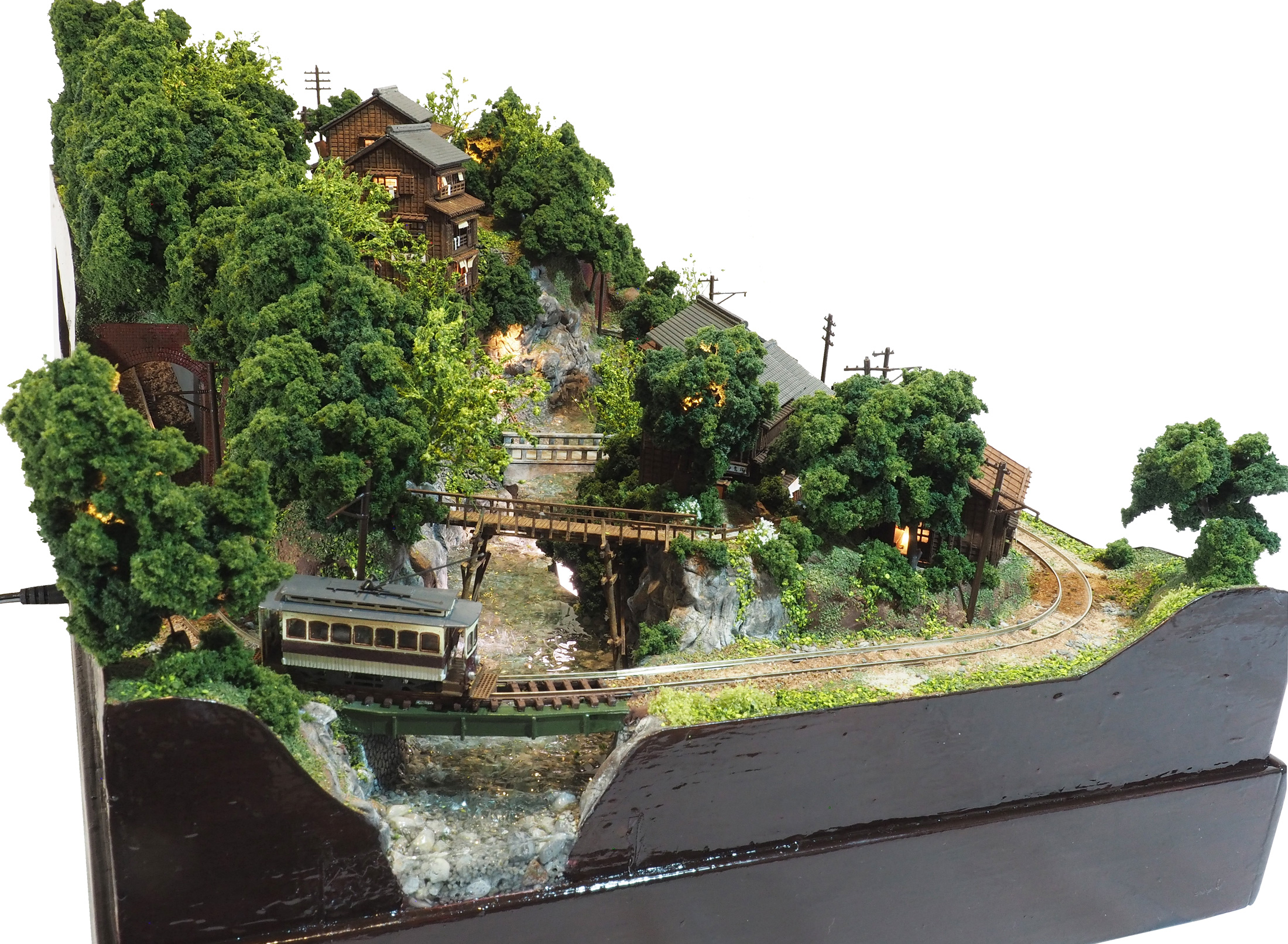

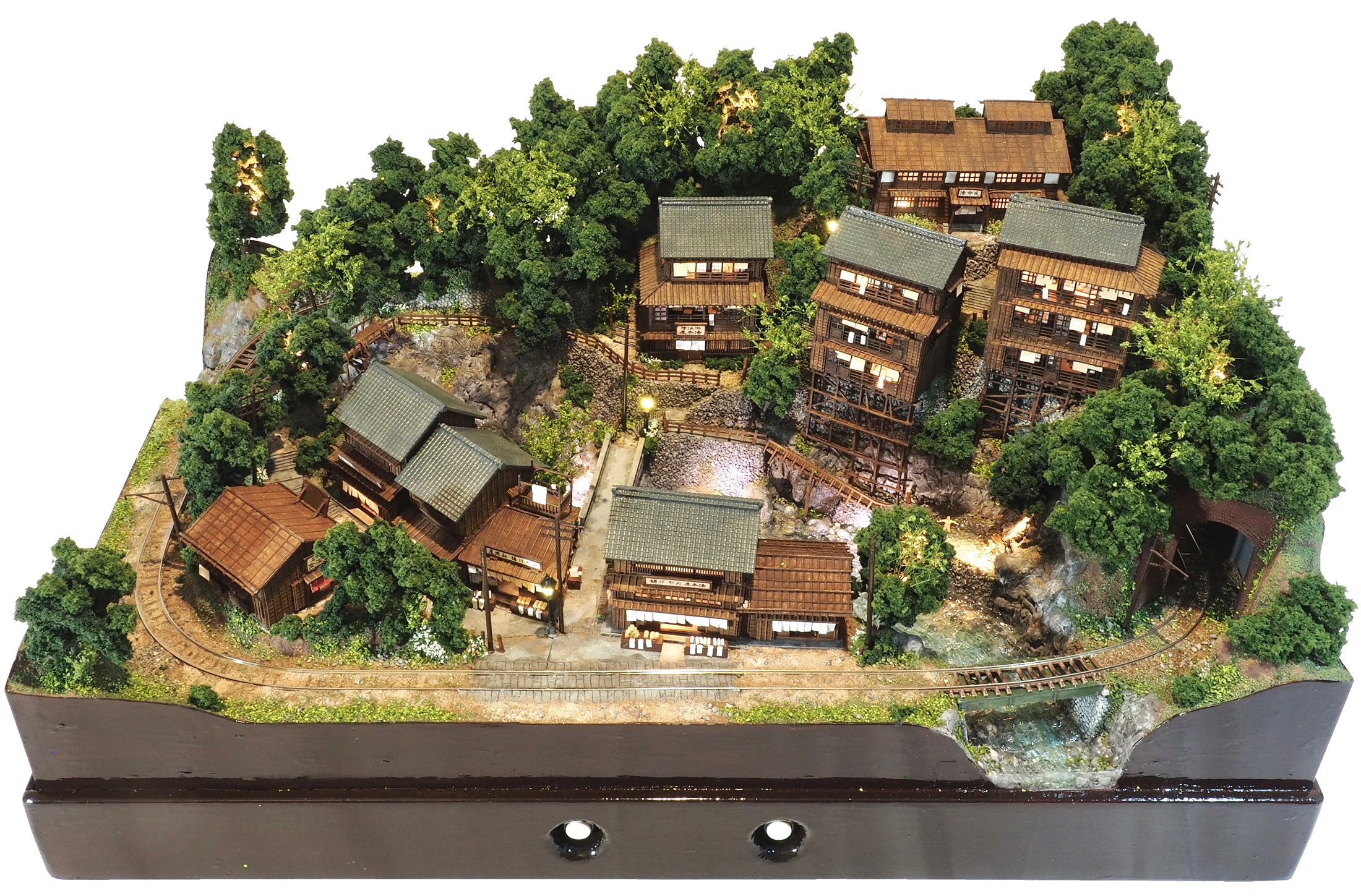

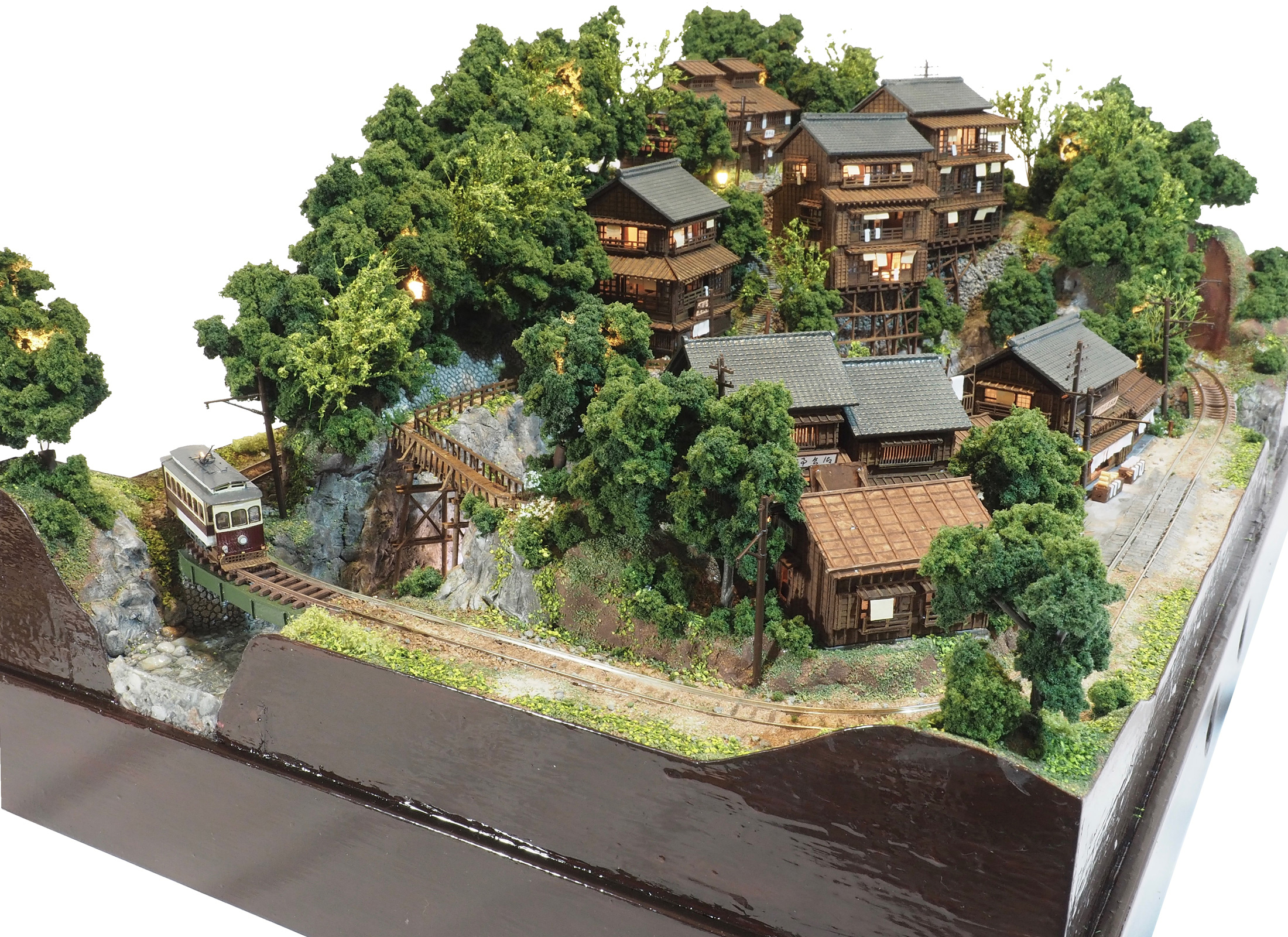

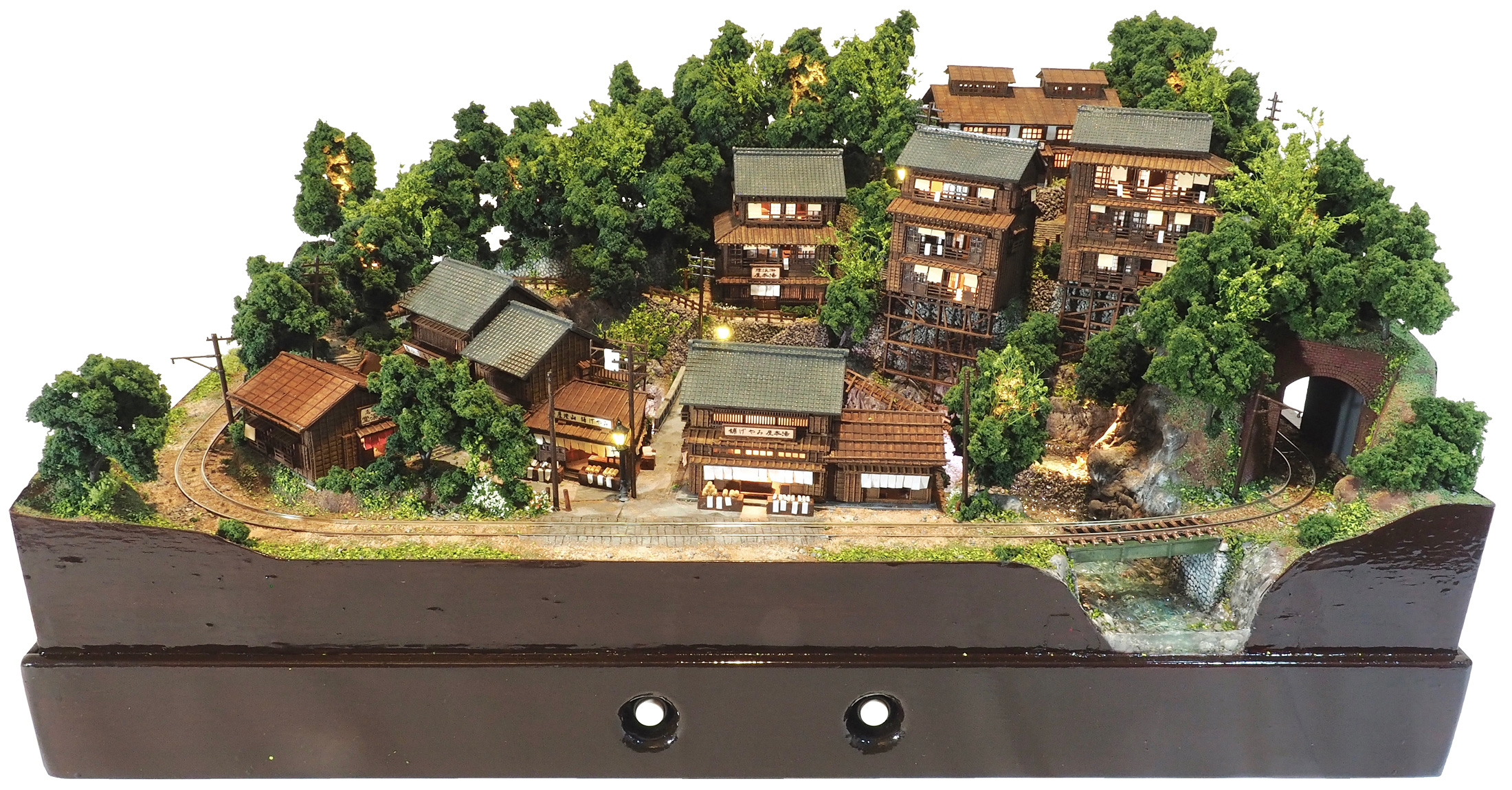

前作「拾の溪温湶鄕 入口驛」にて、温泉郷へと向かうための電気軌道線(路面電車)の始発停車場周辺の風景を模型化しましたが、今回作は温泉郷の風景を題材としています。 2018年「弐の渓温泉 電気軌道」、2020年「参の渓温泉 電気軌道」以来の里山もの第2弾です。(Nゲージ、S=1:150 スケール)
(Nゲージ、S=1:150 スケール、建物類は全てオリジナル設計によるフルスクラッチ))

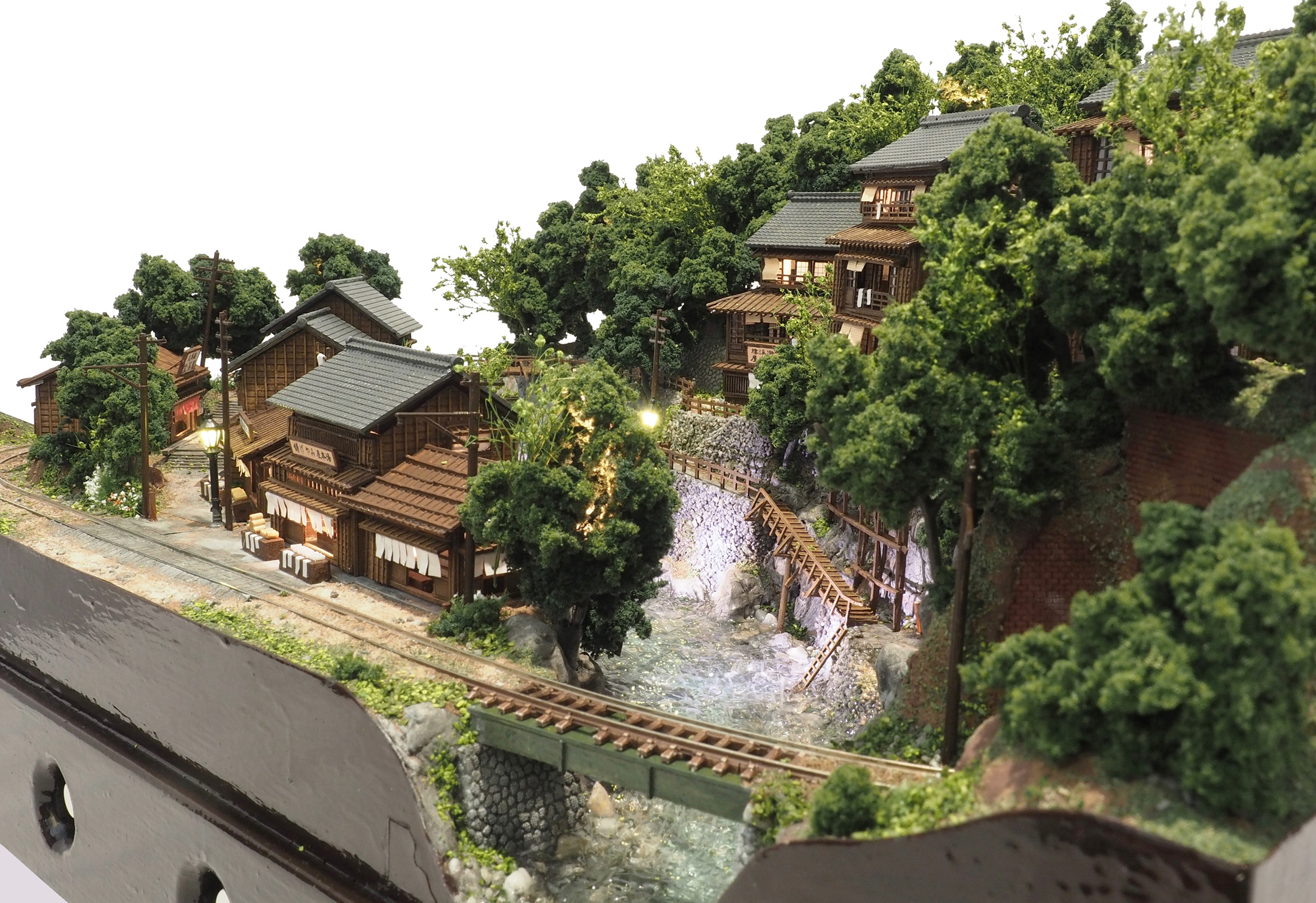

In the previous work, “Jūnotani Hot Spring Resort – Entrance Station,” I created a diorama depicting the area around the terminal station of the electric railway line (streetcar) that carries visitors toward the hot spring resort. In this new work, however, the subject is the scenery of the hot spring resort itself.
This is the second work in my “satoyama” series, following “Ninotani Hot Spring Electric Railway” (2018) and “Sannotani Hot Spring Electric Railway” (2020).
(N-scale model railway, S = 1:150. All buildings are entirely original, scratch-built designs.)


d047(このページ|This Page)
[EN]d047:About the Buildings of “Jyunotani hot spring resort — Ganso (Where It Began)” —Coming soon

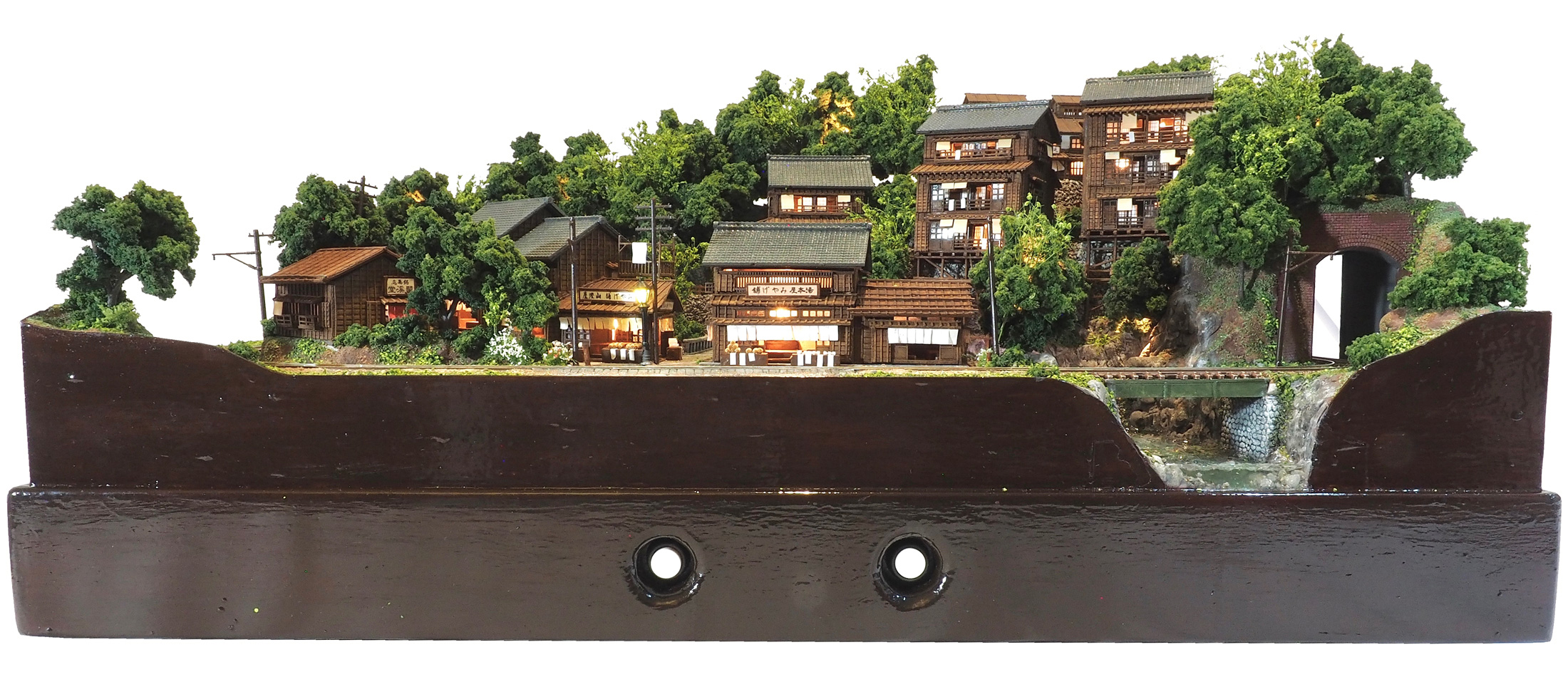

スケール / Scale: 約 1:150 (Approx. 1:150)
サイズ / Dimensions (オブジェ本体+アクリルケース / Object + acrylic case)
:H 葯270 × W 500 × D 340 mm
:H approx. 10.6 × W 19.7 × D 13.4 inches

- 主な使用材料:
- スチレンボード(地面の高さ調整・2〜5mm厚・世界堂、東急ハンズ 扱い)
- ボール紙(世界堂 扱い・約1mm厚・株式会社ORION 製「白ボール・A3」)
- イラストボード(1〜2mm厚、建物のベース、レールのベース)
- 瞬間接着剤
(サラサラタイプ:Can★Do 扱い「瞬間接着剤 1g x 3本入・速乾タイプ」)
(中粘度:Can★Do 扱い「瞬間接着剤 2g x 2本入・多用途タイプ」)

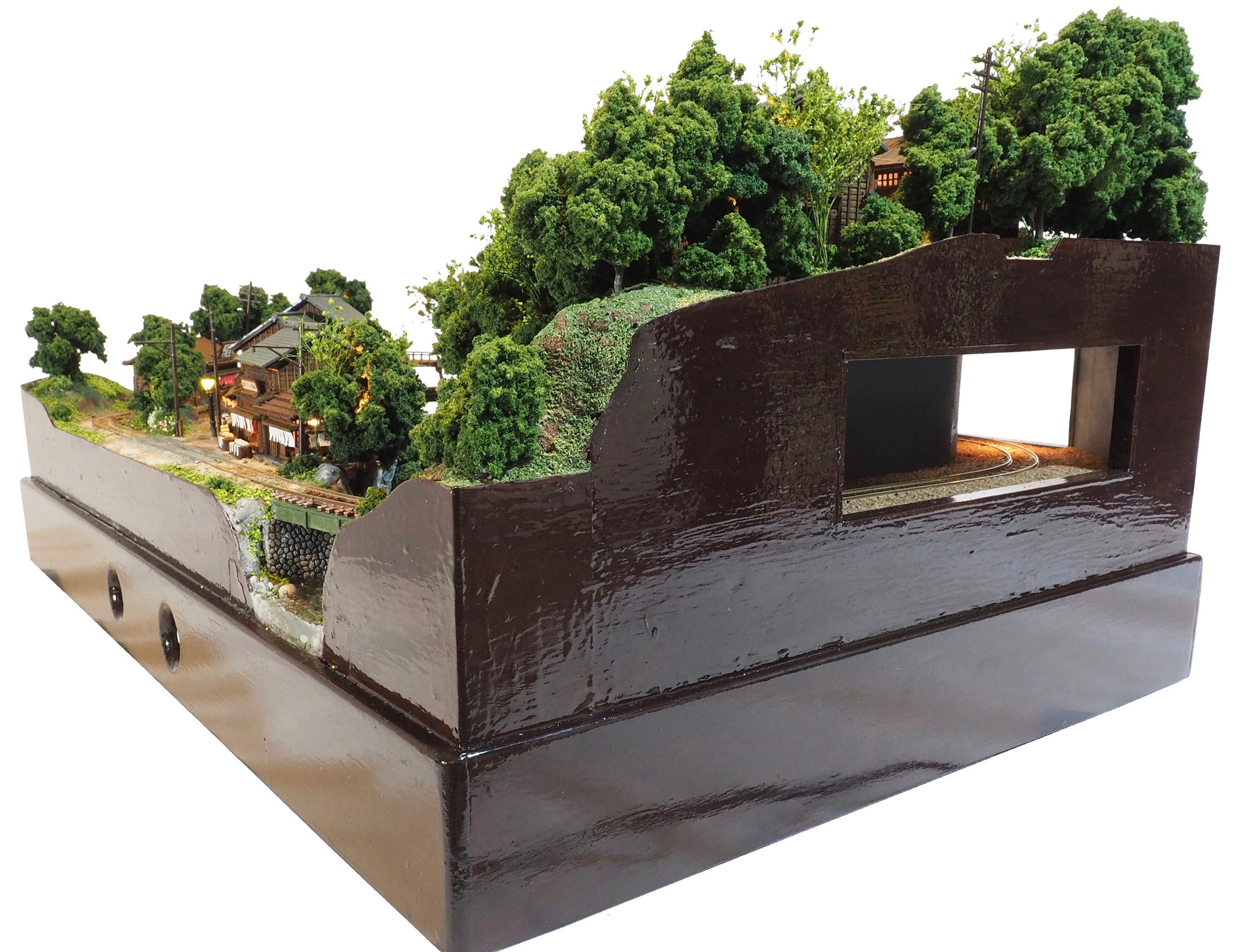

その他 - 木材(台座部分:ラワンベニア・シナベニア、アガチス単版)
- 艶消しアクリル絵具(ホルベイン・アクリリックガッシュ(旧 アクリラガッシュ))
- 紙粘土(岩の表現、地面の高低差調整、崖の表現:「Hearty ハーティークレイ・ブラウン」
- 地面の砂・石:モーリン製「リアルサンド」「Rストーン」(さかつうギャラリー 扱い)
- 石垣1:モーリン製「Rストーン」を「光栄堂 スチノリ」で接着
- 石垣2:津川洋行「 (N) SNP-N4 シーナリーペーパーN 石積 灰」を着色加工
- 樹木の表現
- フォーリッジクラスター(さかつうギャラリー 扱い)
- WOODLAND Scenics「TREE ARMATURES」TR1123(樹木の幹の部分、さかつうギャラリー 扱い)
- 光栄堂フラワーツリー(樹木の表現、世界堂、東急ハンズ 扱い)
- 「mini Natur」各種(草木・低木の表現、さかつうギャラリー 扱い)https://webshop.sekaido.co.jp/product/A005242
- 屋根瓦: グリーンマックス
- 電柱: グリーンマックス
- 架線柱: 津川洋行

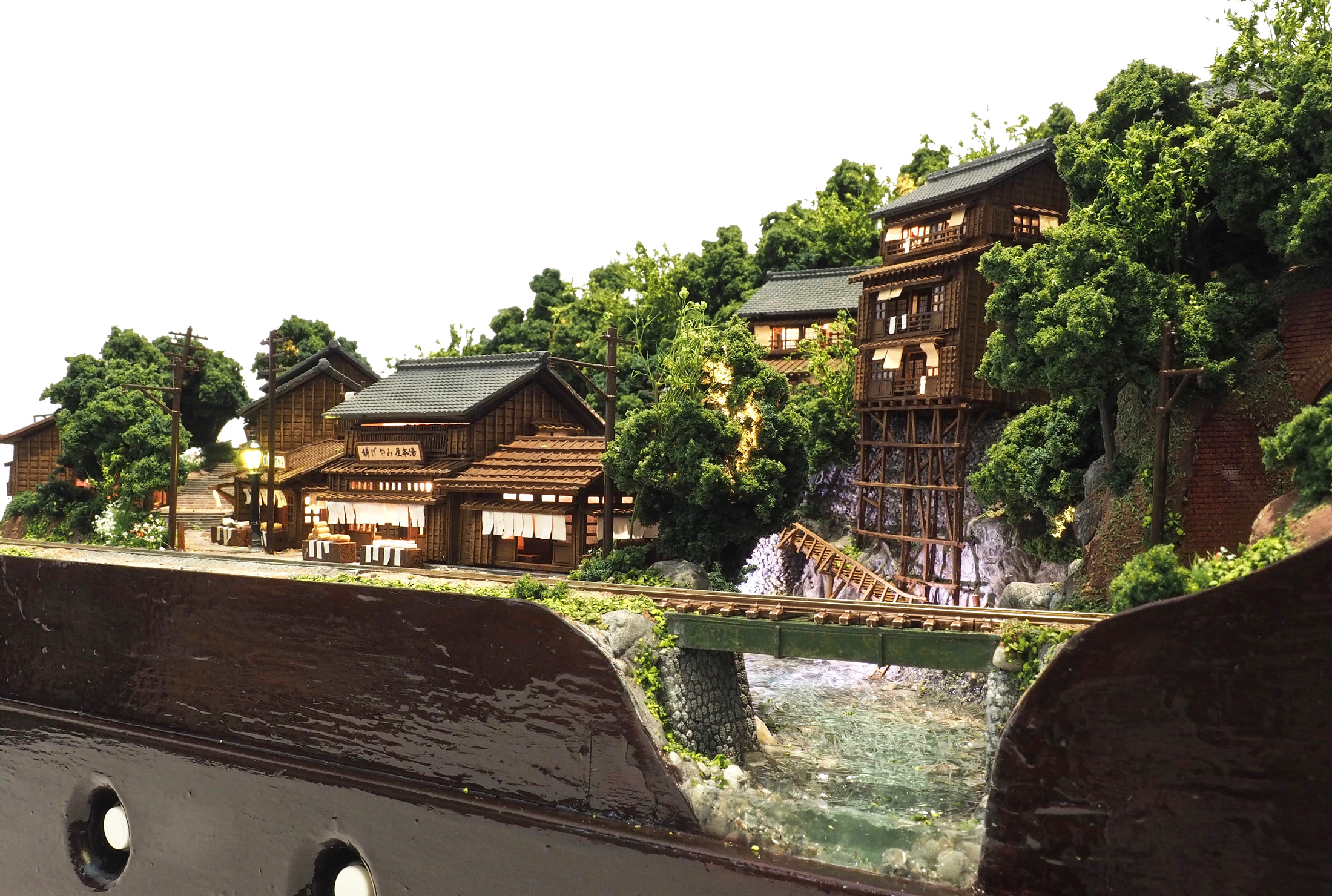

- 高透明レジン「プロクリスタル NEO または 880」(レジン、渓流の水)
- ホルベイン「Crystal Varnish」(水面波の表現、レジンの硬化後に塗布)
- アサヒペン「水性ニス・マホガニー」(台座の仕上げ塗装) 他
- 路面電車が走る地面の楕円軌道
- PECO フレキシブル線路(N用、W 9.5mm)SL-300F コード55
- 犬釘(篠原 HO N3 Spikes、生産終了品)

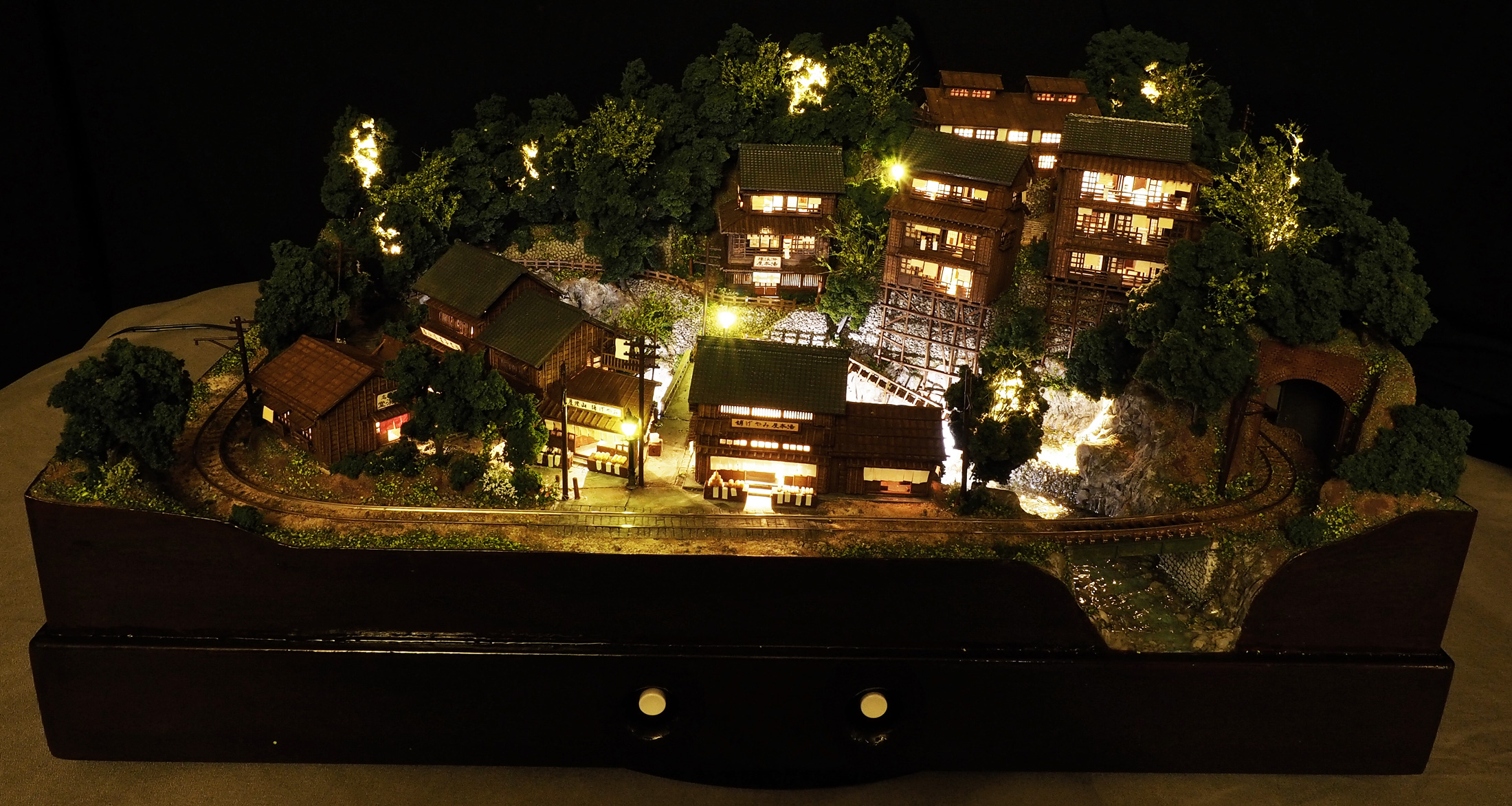

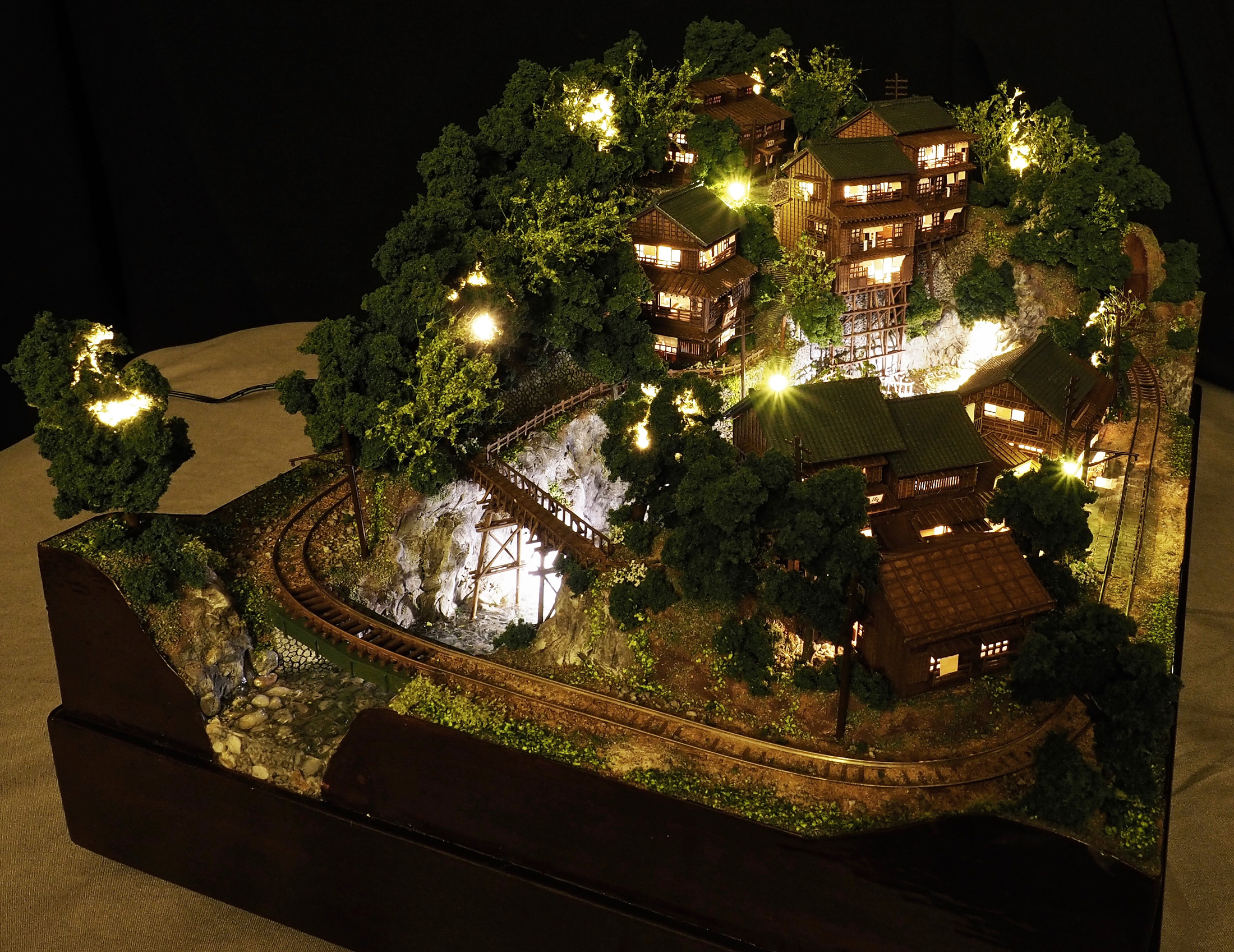

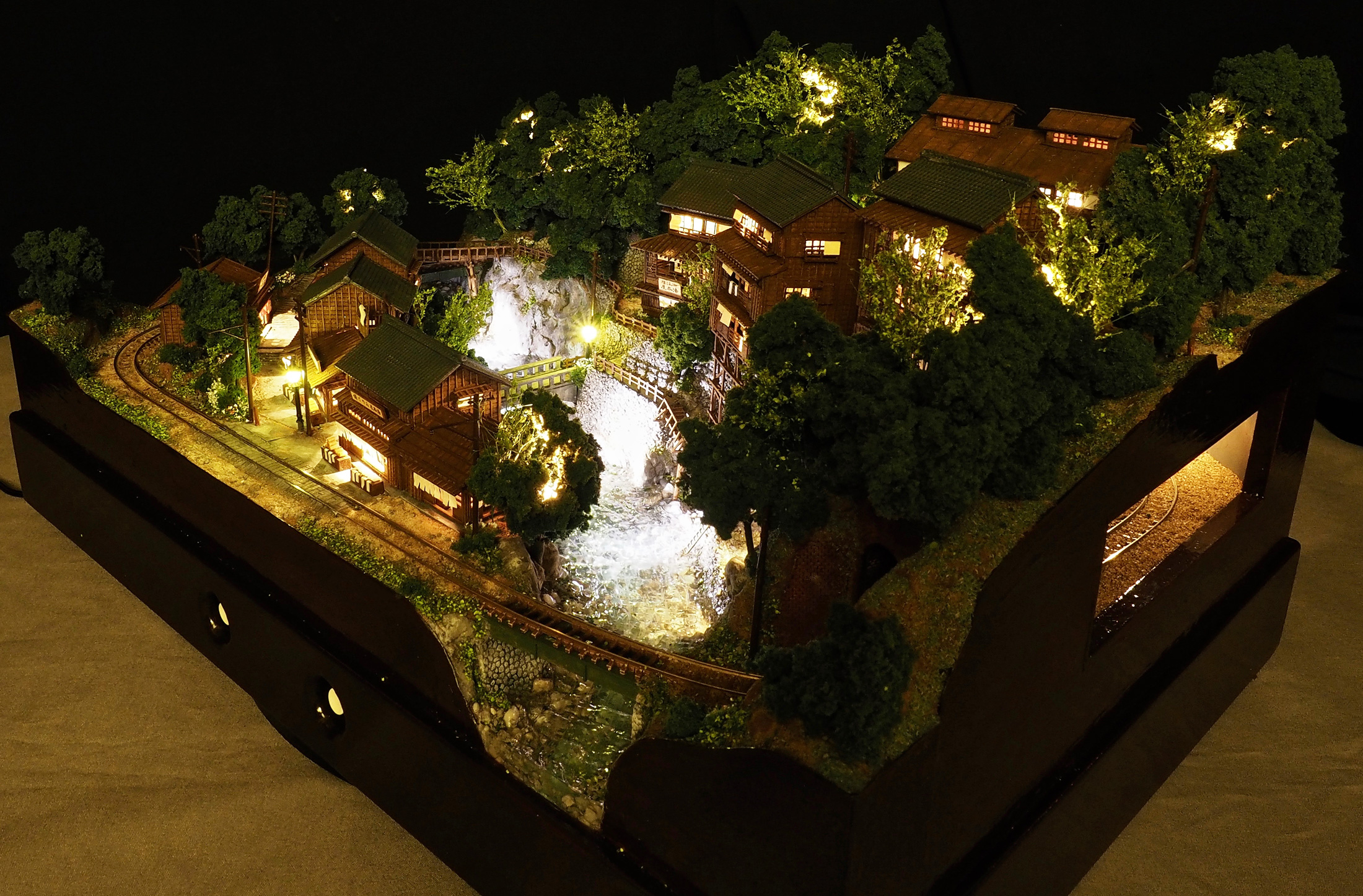

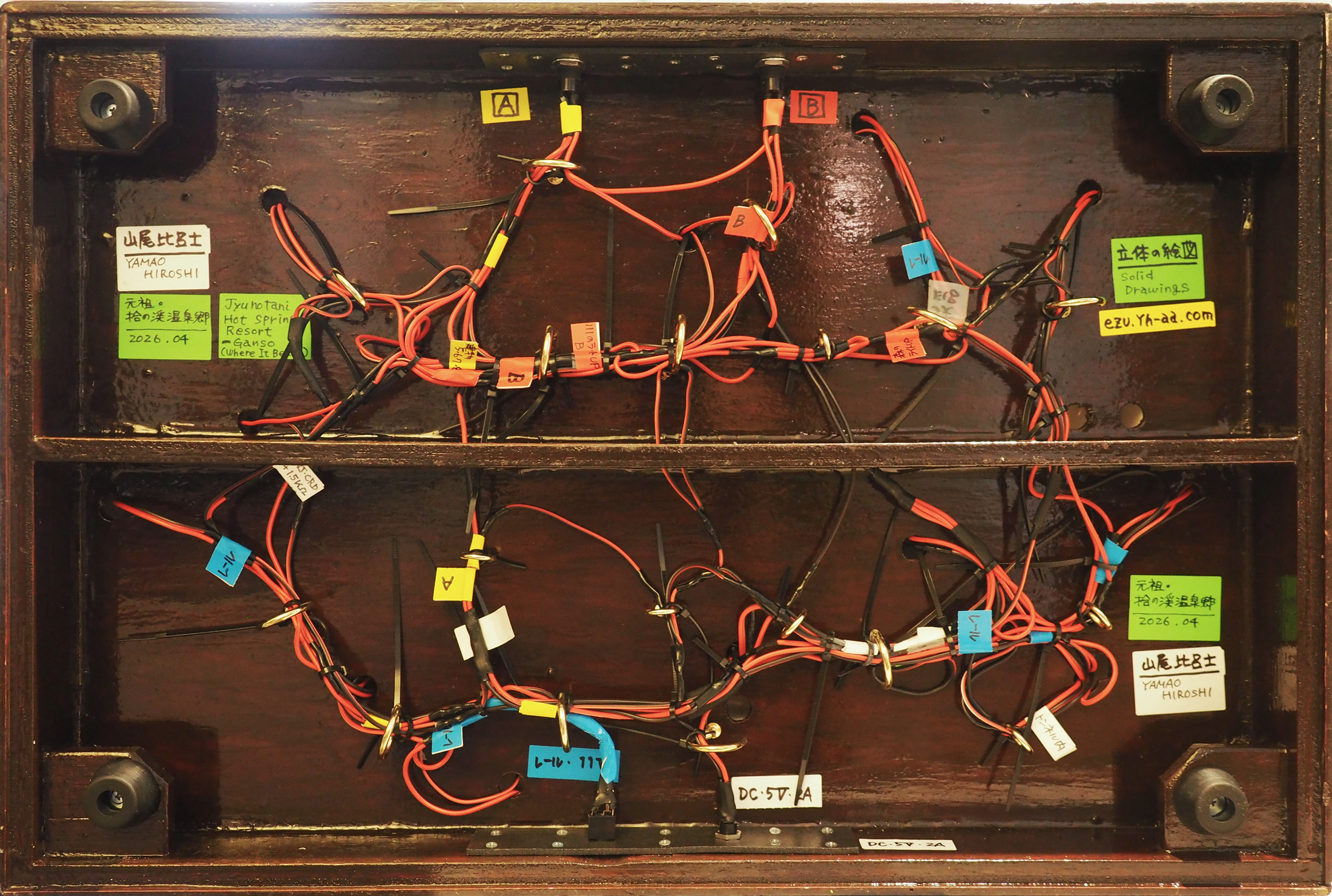

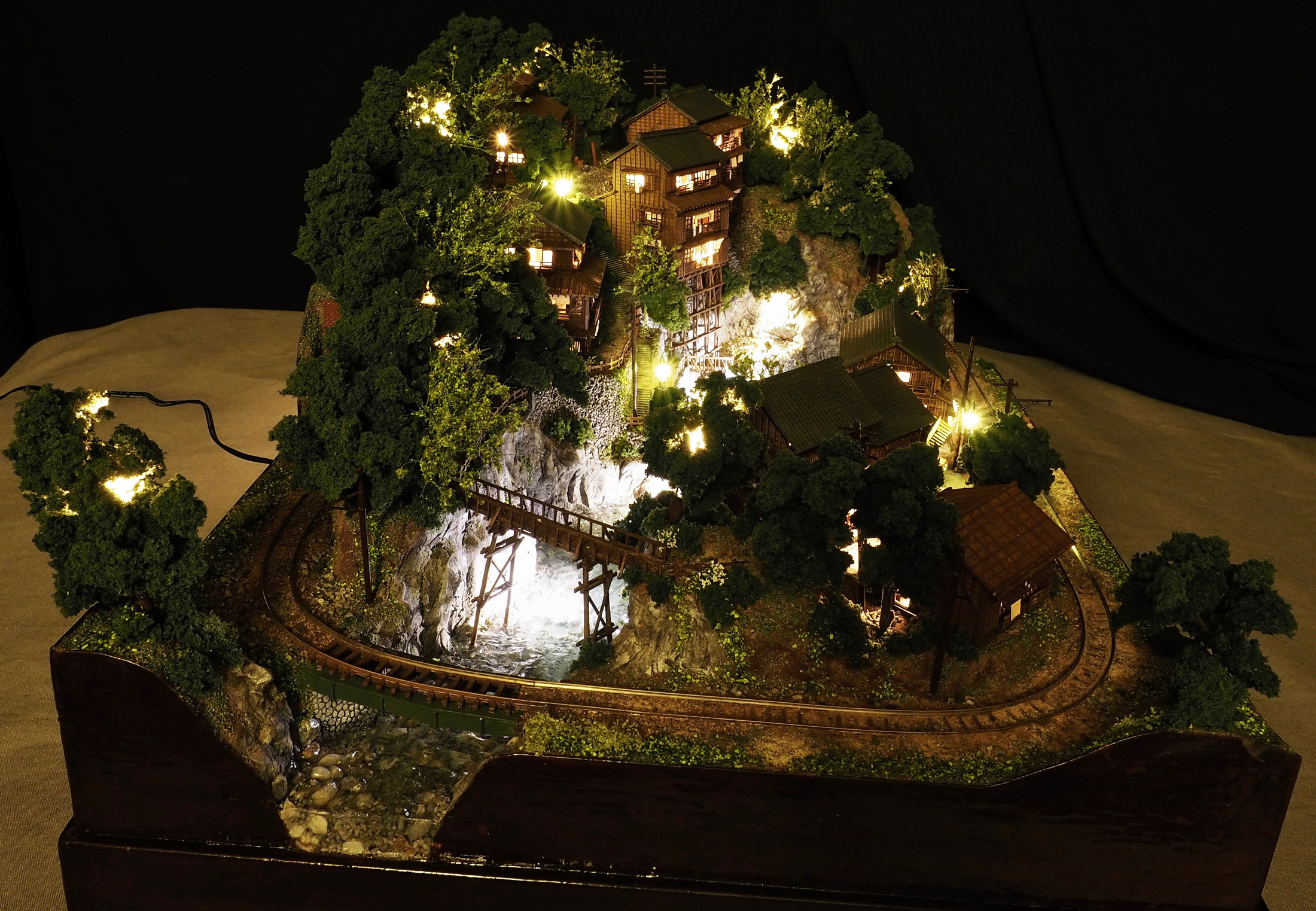

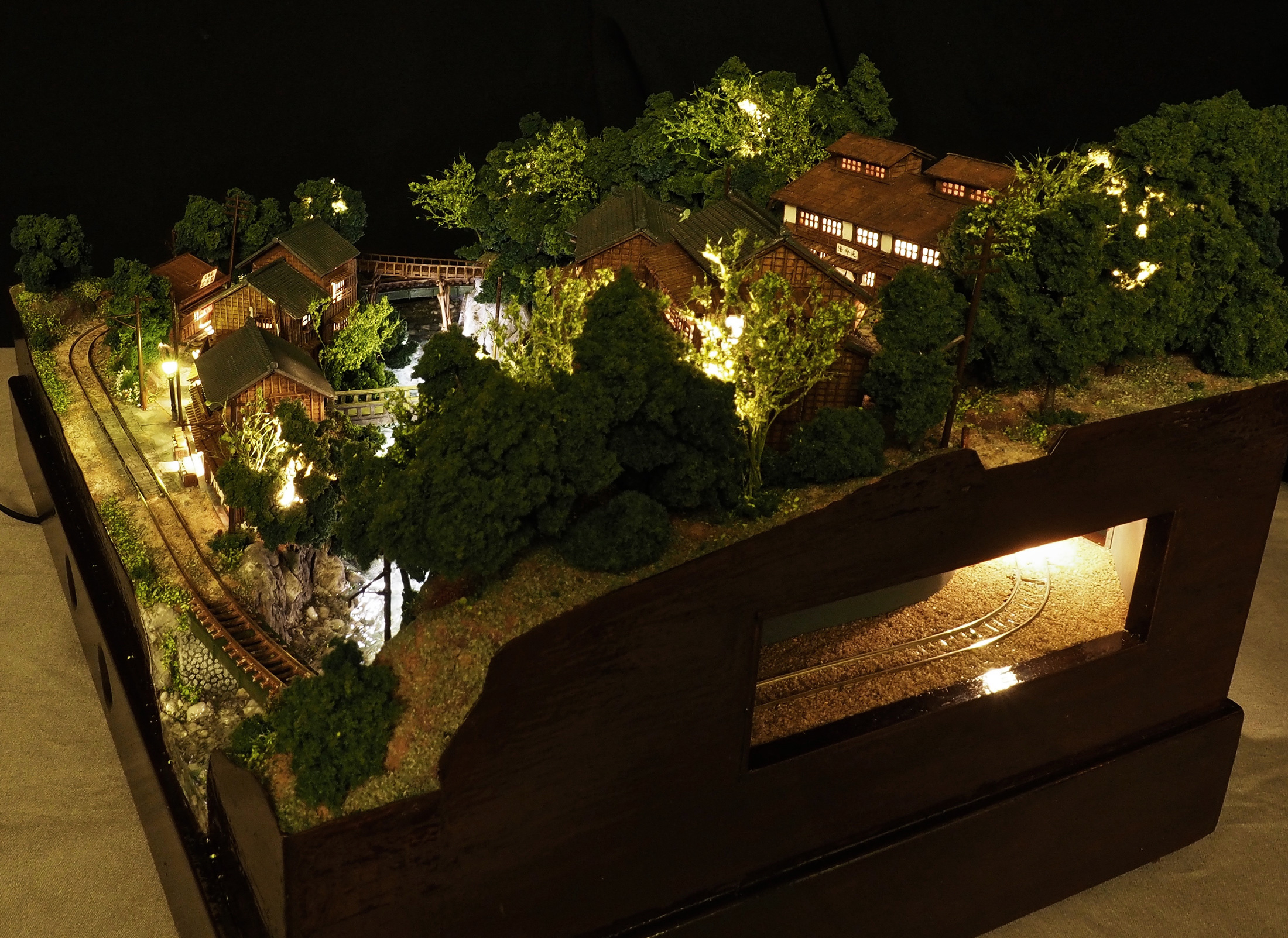

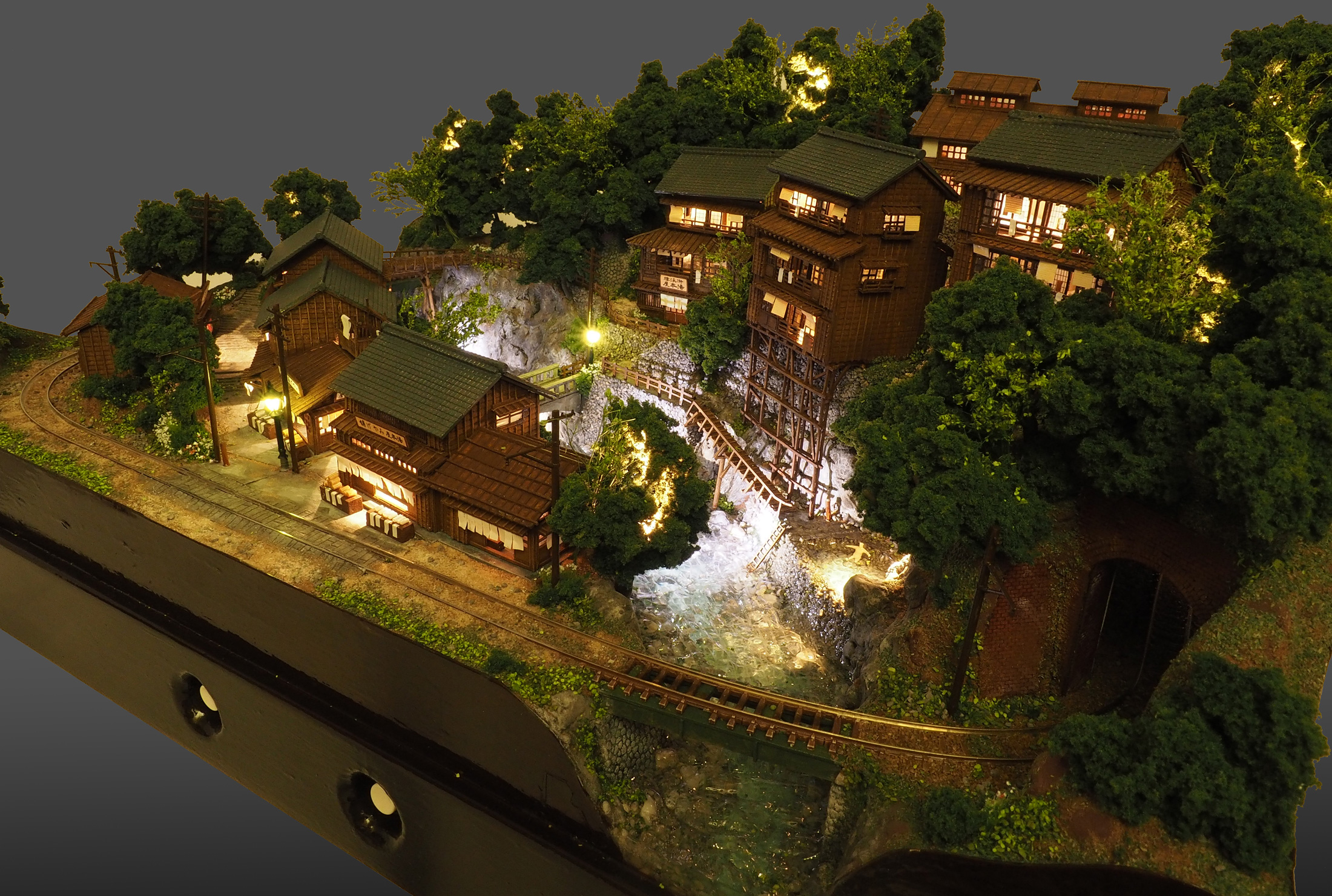

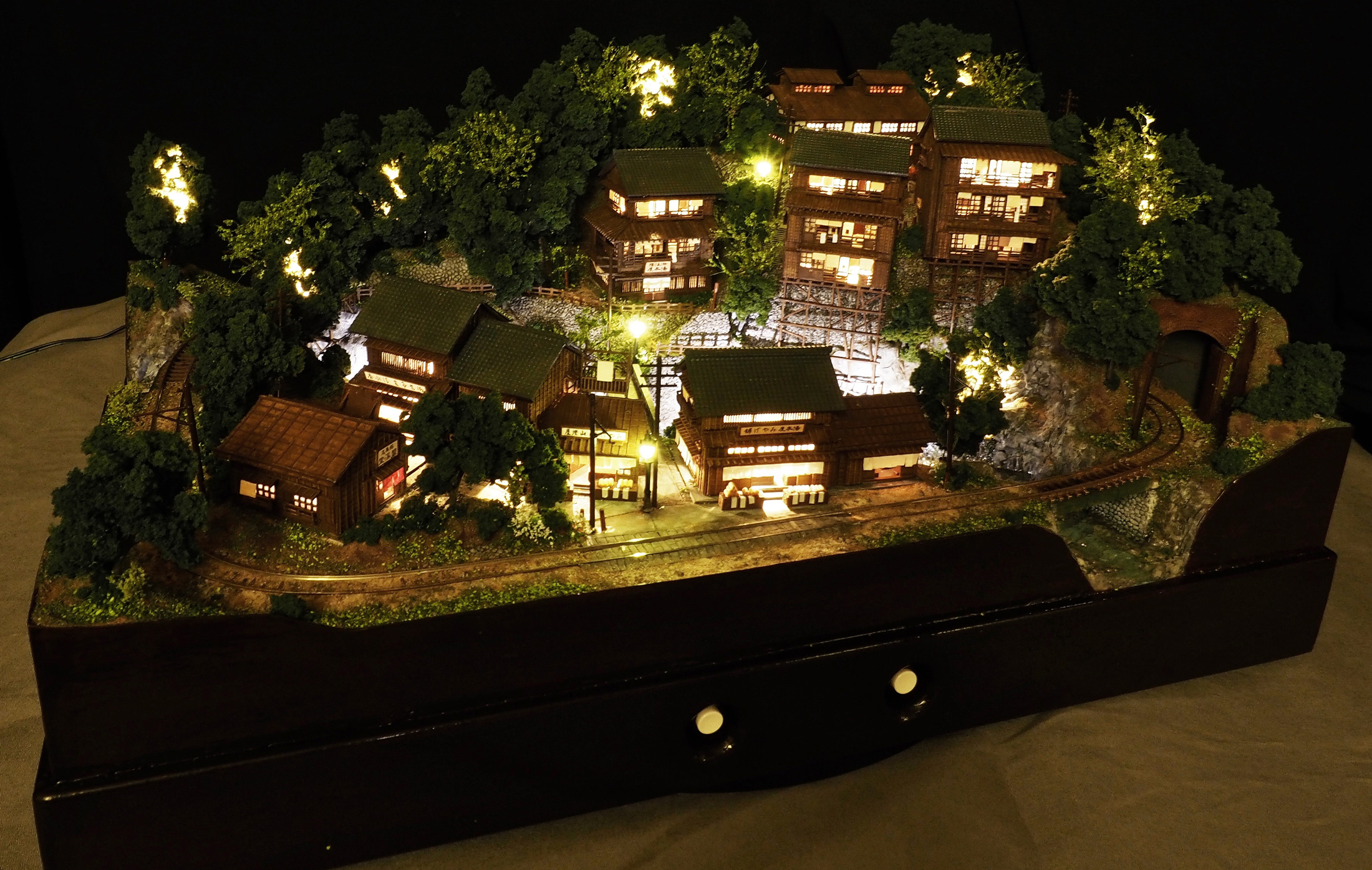

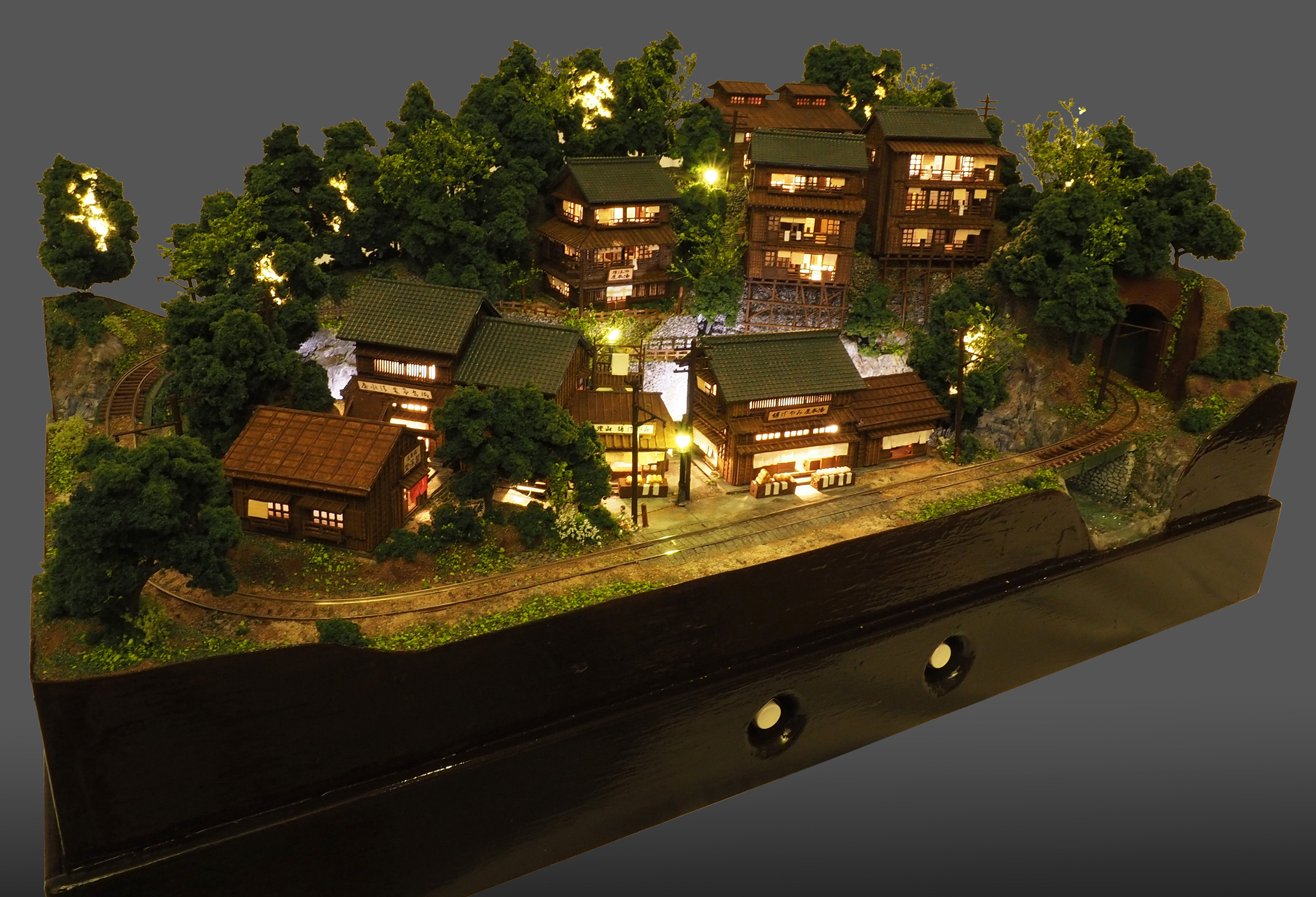

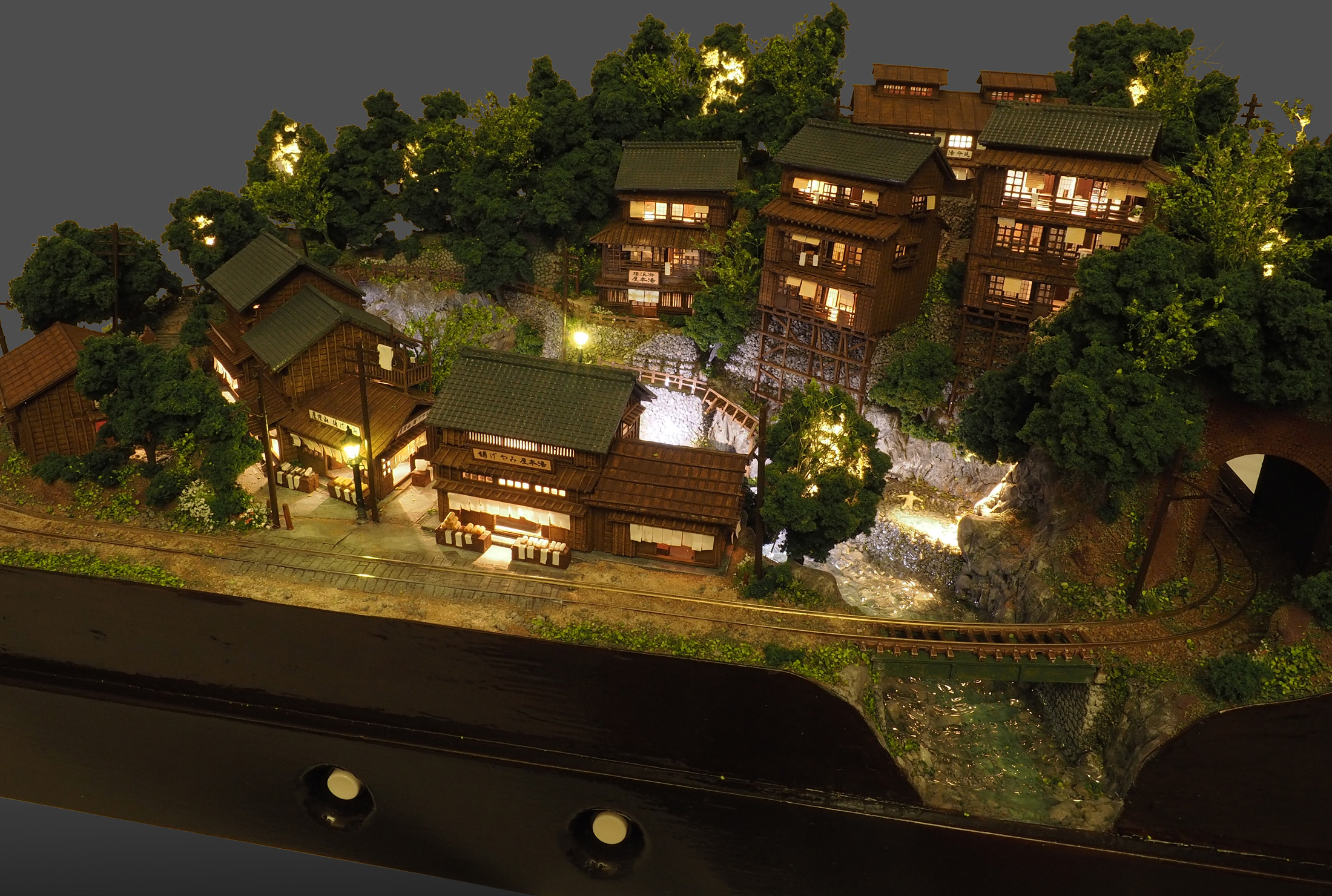

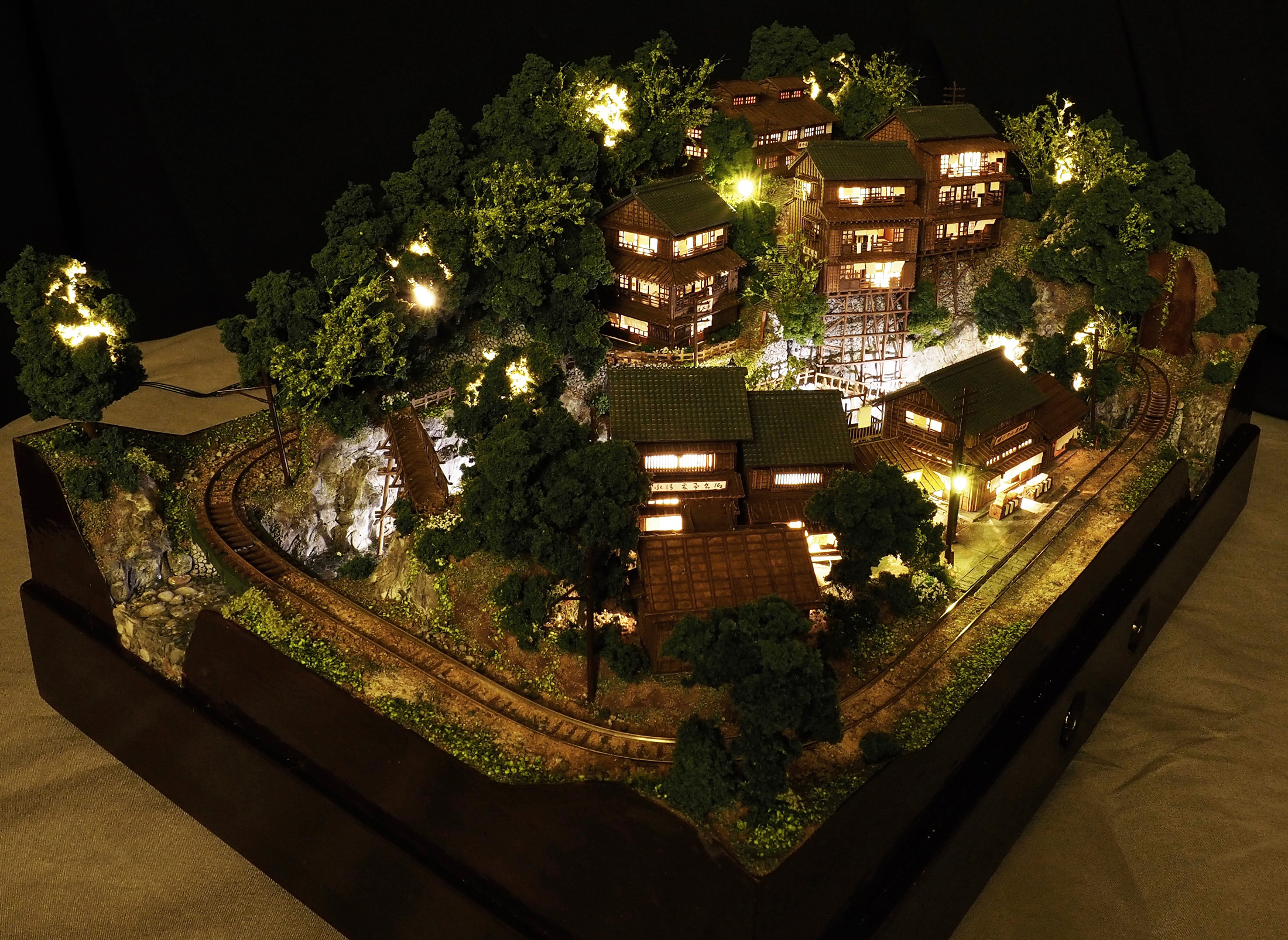

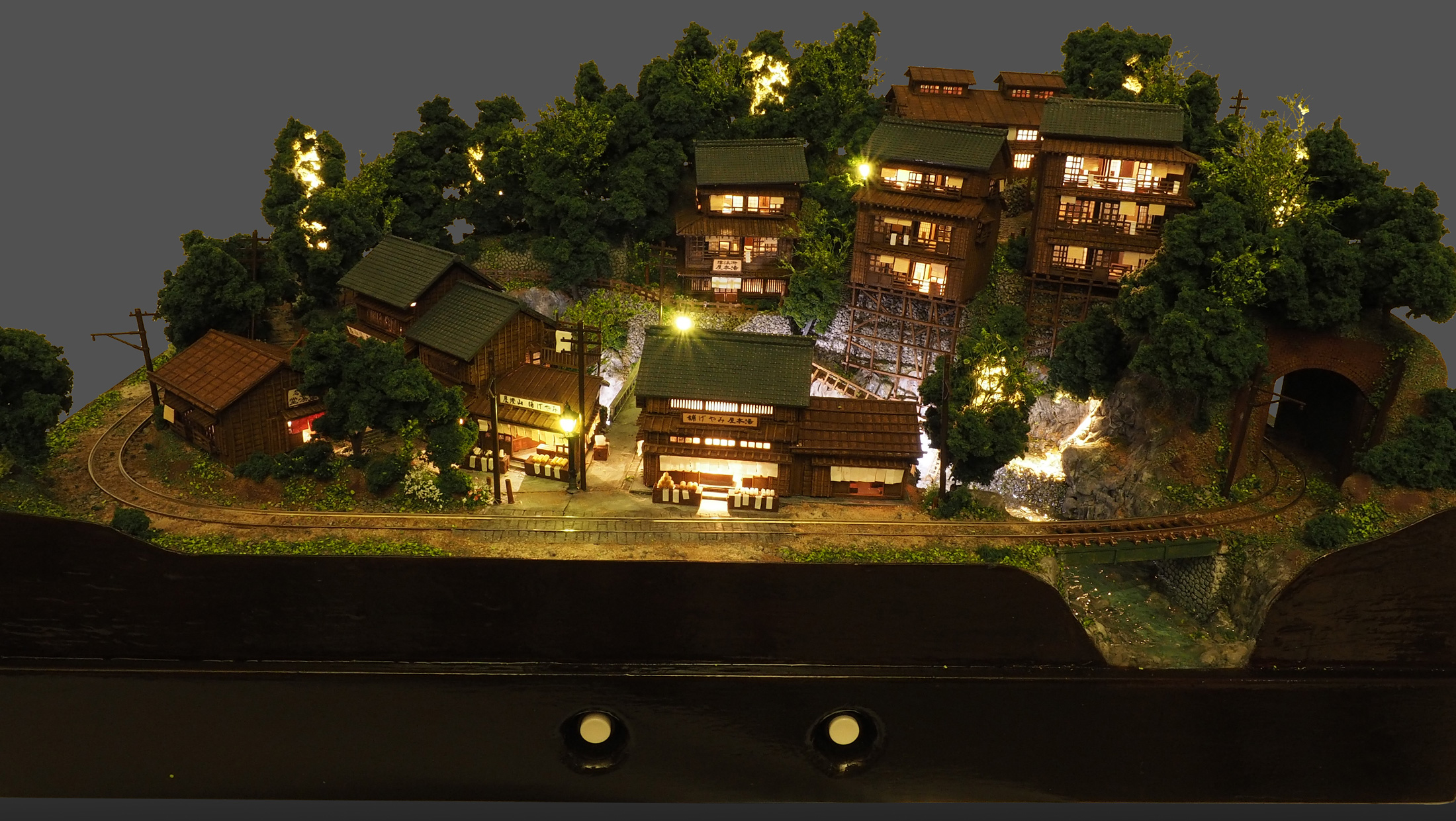

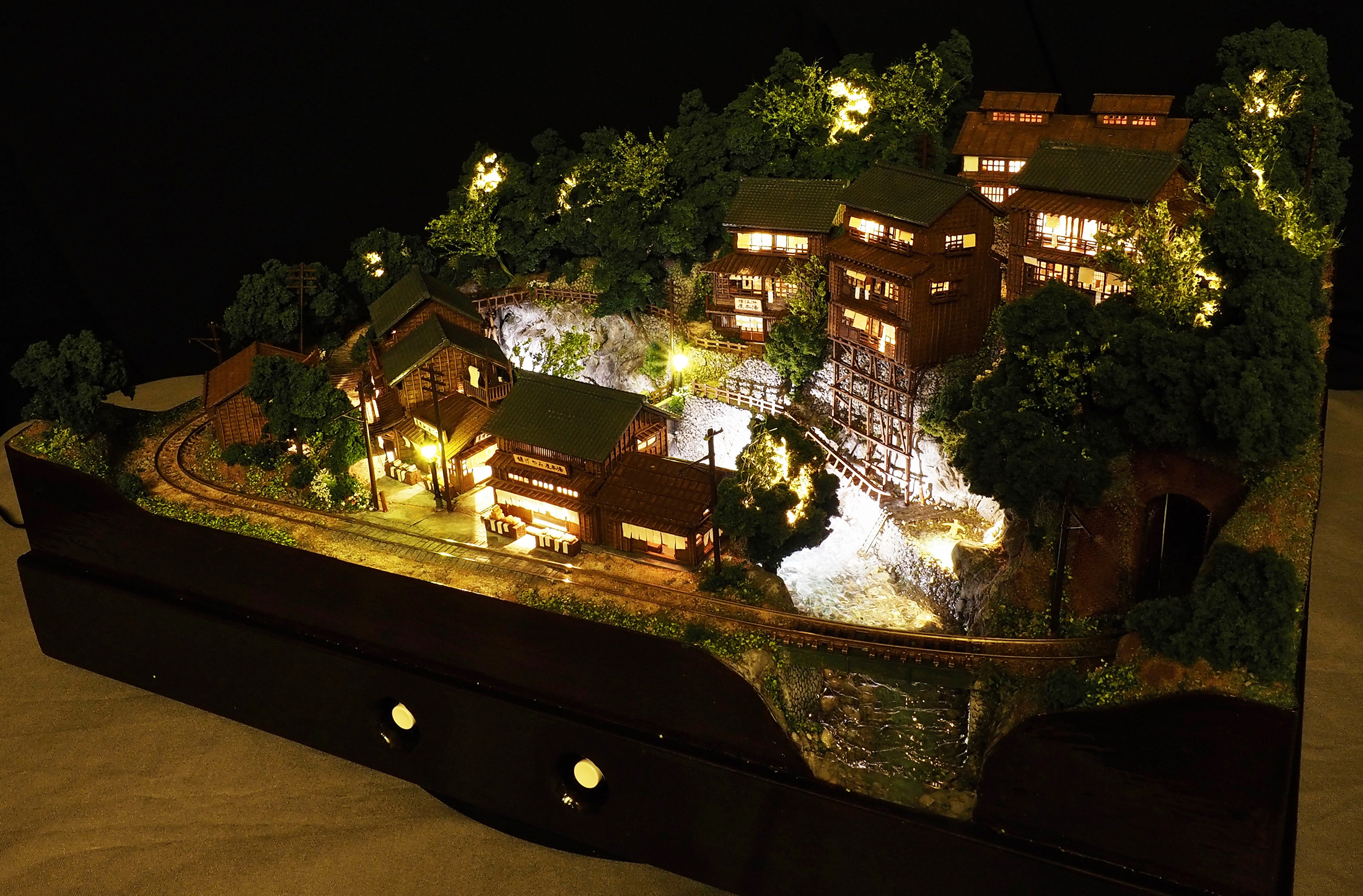

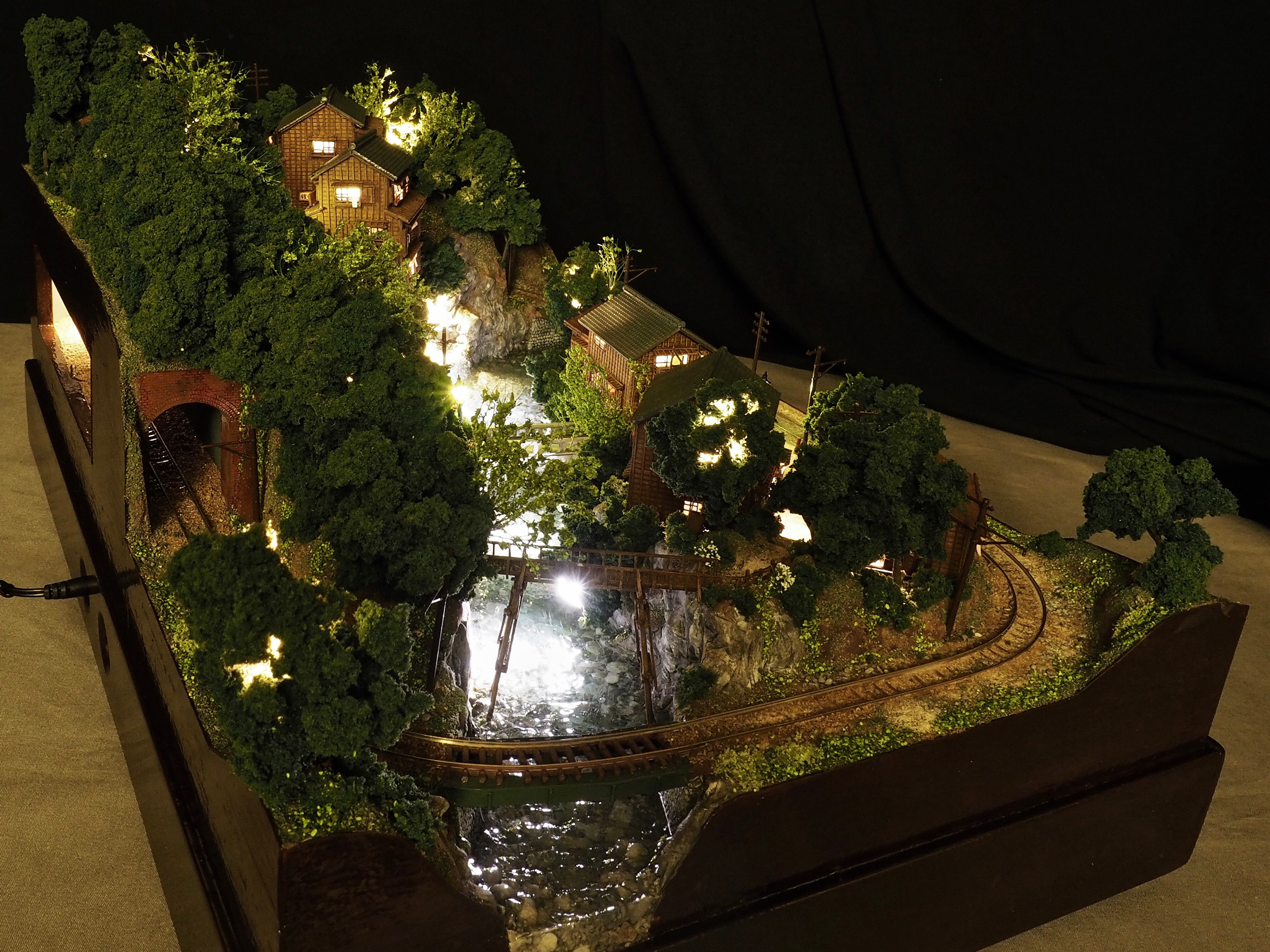

- 照明:LED(3mm砲弾型、色数種) + CRD(E-153) + 560オーム抵抗 を1セットとして、計30セットほどを全て並列接続

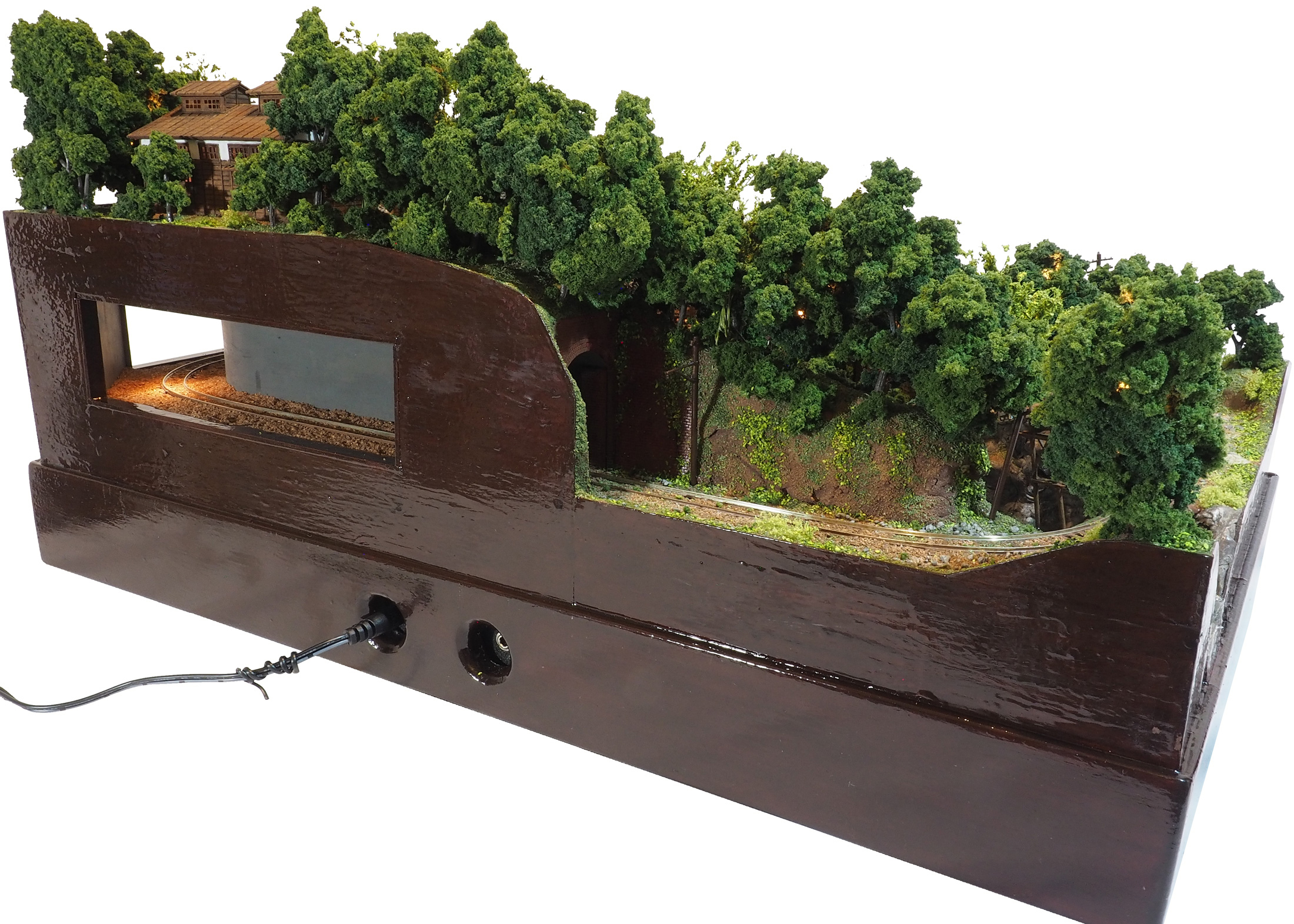

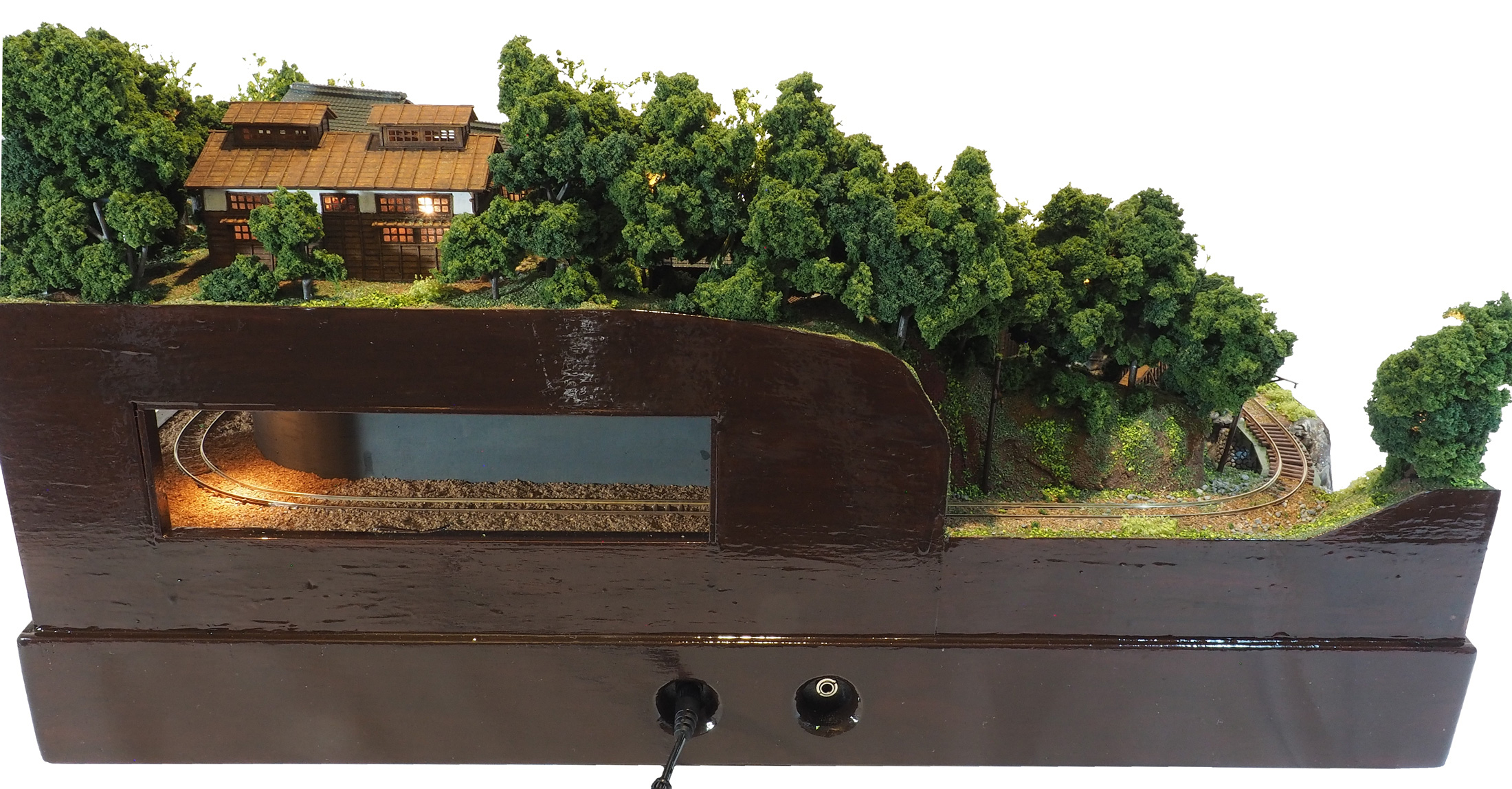

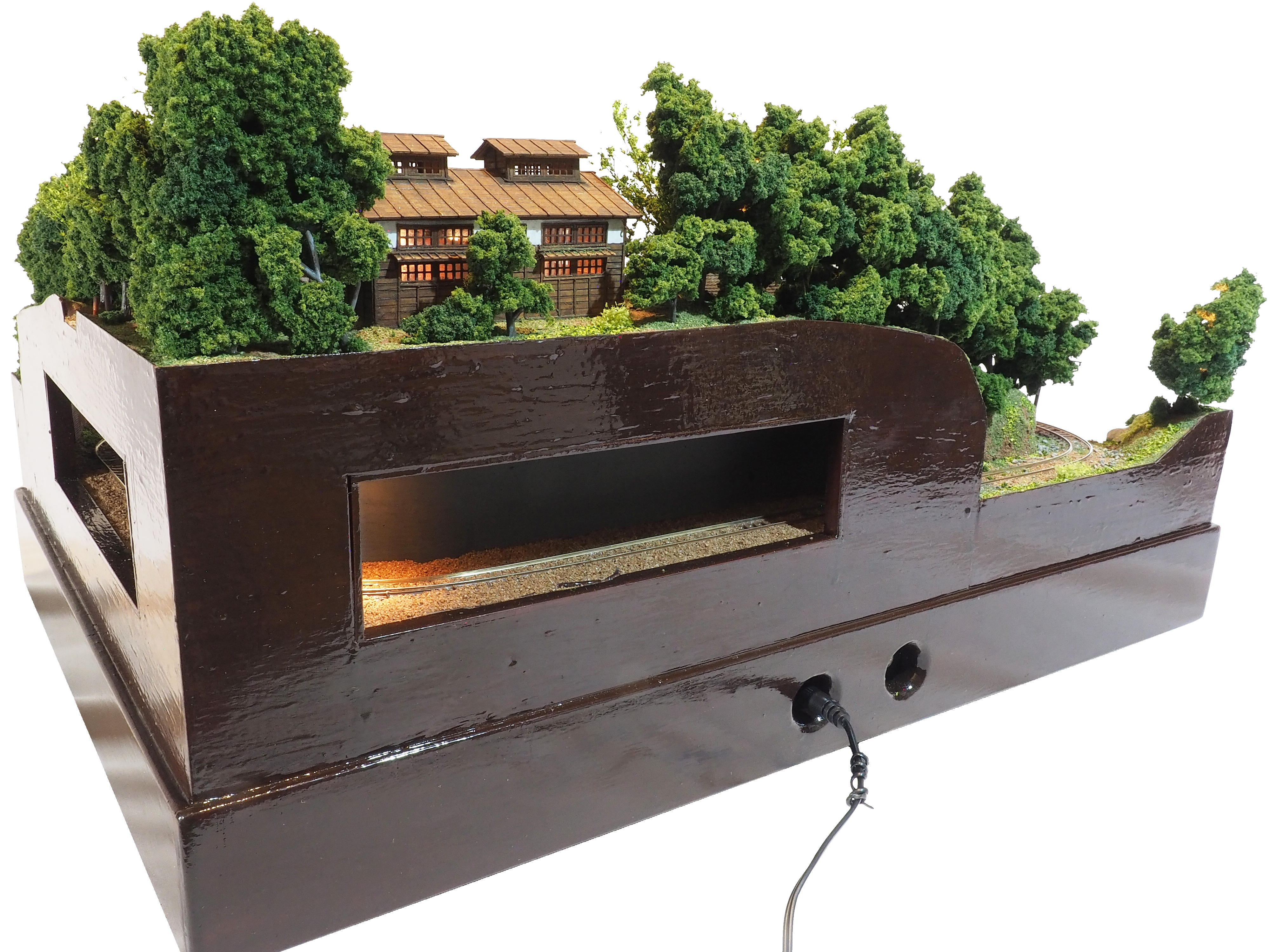

- 台座全面スイッチ:オルタネート、2系統(建物内部用、外部ライトアップ用)
- 街路灯:evemodel 製(LEDライト・L=30mm)、付属の1Kオーム(1,000オーム)抵抗、CRD(E-153)を1本毎に配線
- アクリルケース(3mm厚・透明・押出し)
:アクリルショップ はざいや(株式会社菅原工芸)カスタムオーダー品
- 販売の際の付属品:
- アクリルケース(3mm厚・透明・押出し)付属
- 照明用のACアダプター(5V・2.5A)付属
- パワーパック用 DCフィーダーコード N用 付属(TOMIX 5534 DCフィーダーNのレール側プラグ部分を別のプラグに交換したもの)
- 車両やパワーパック本体は付属しません。(パワーパックは TOMIX 推奨)

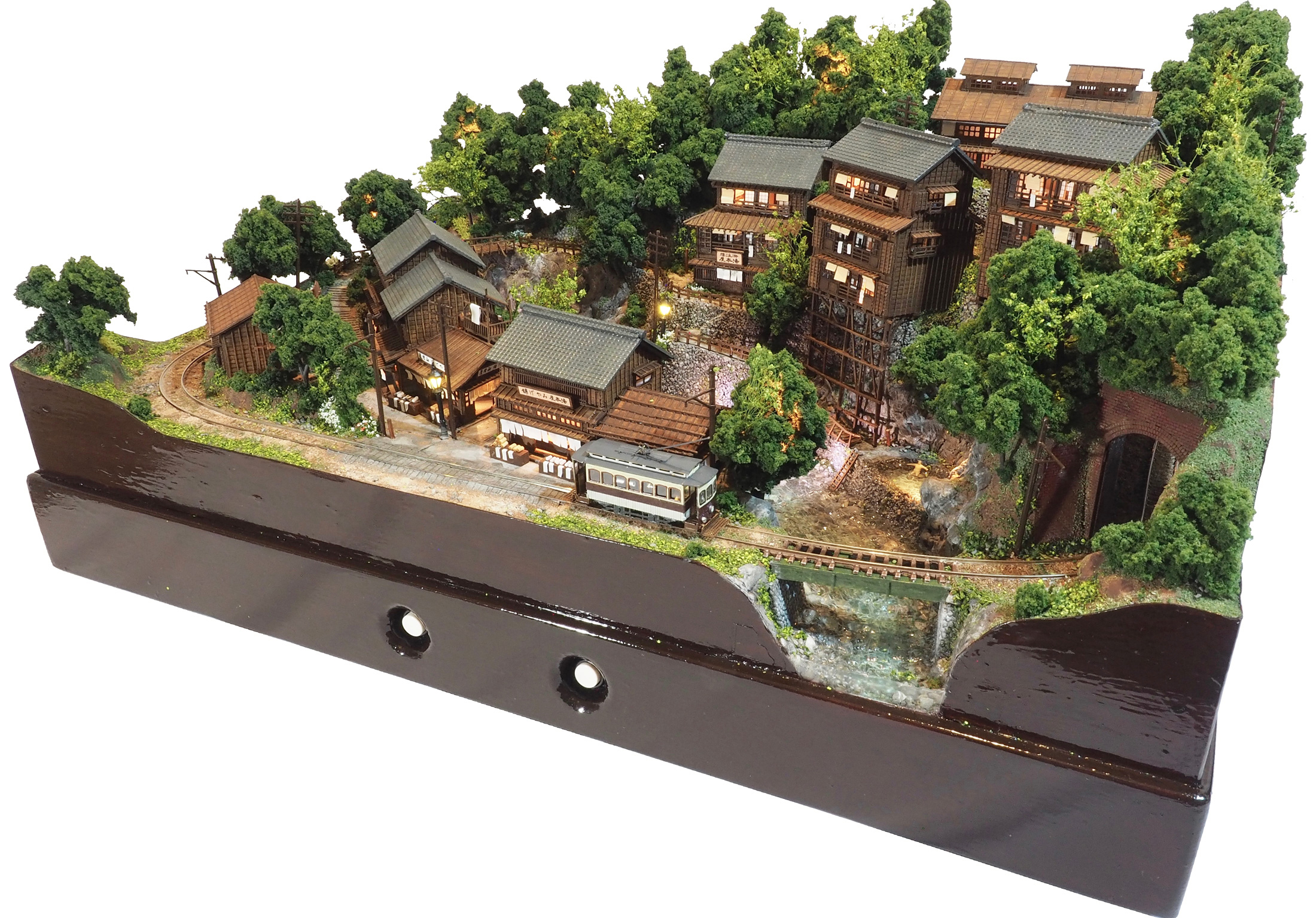

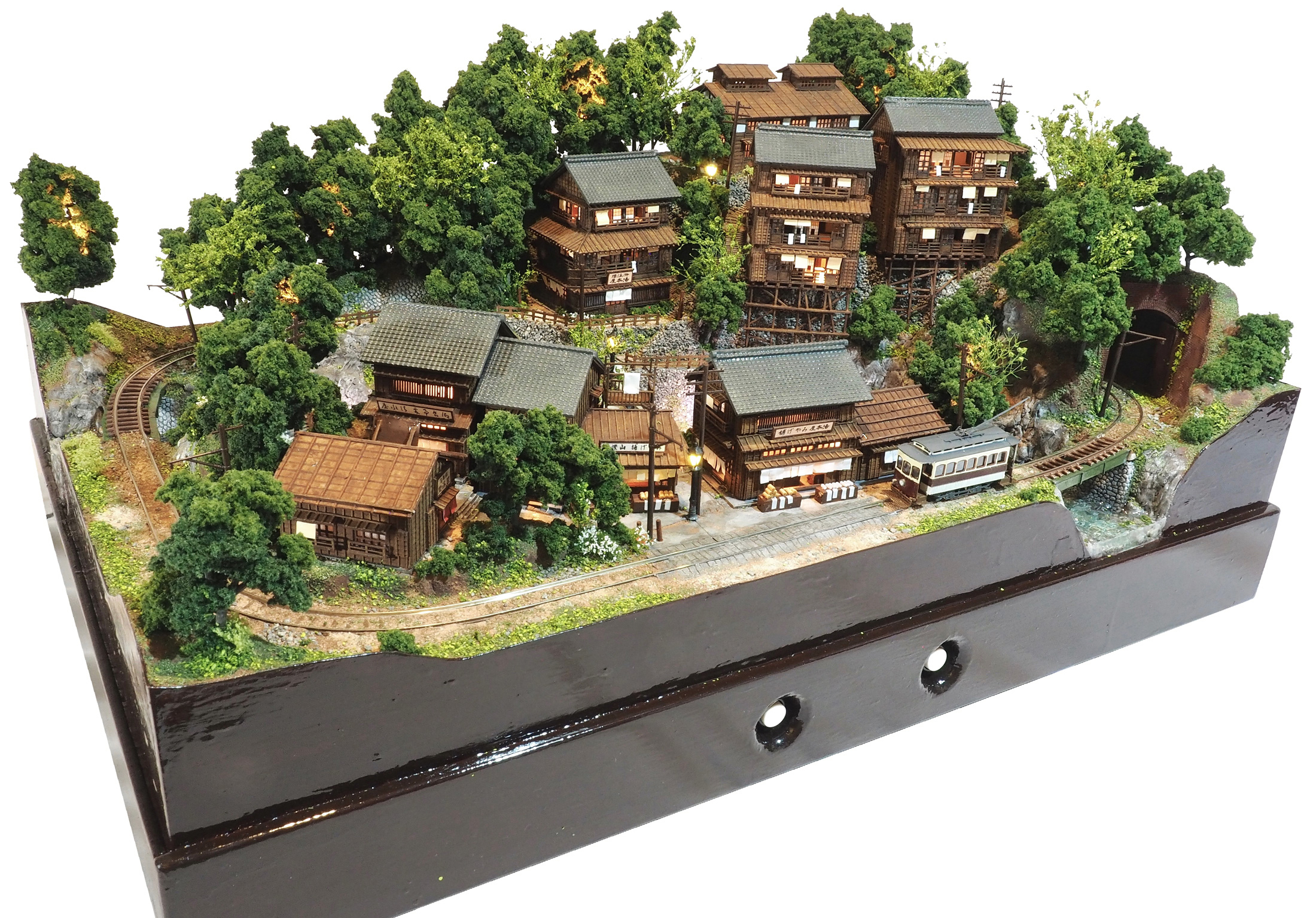

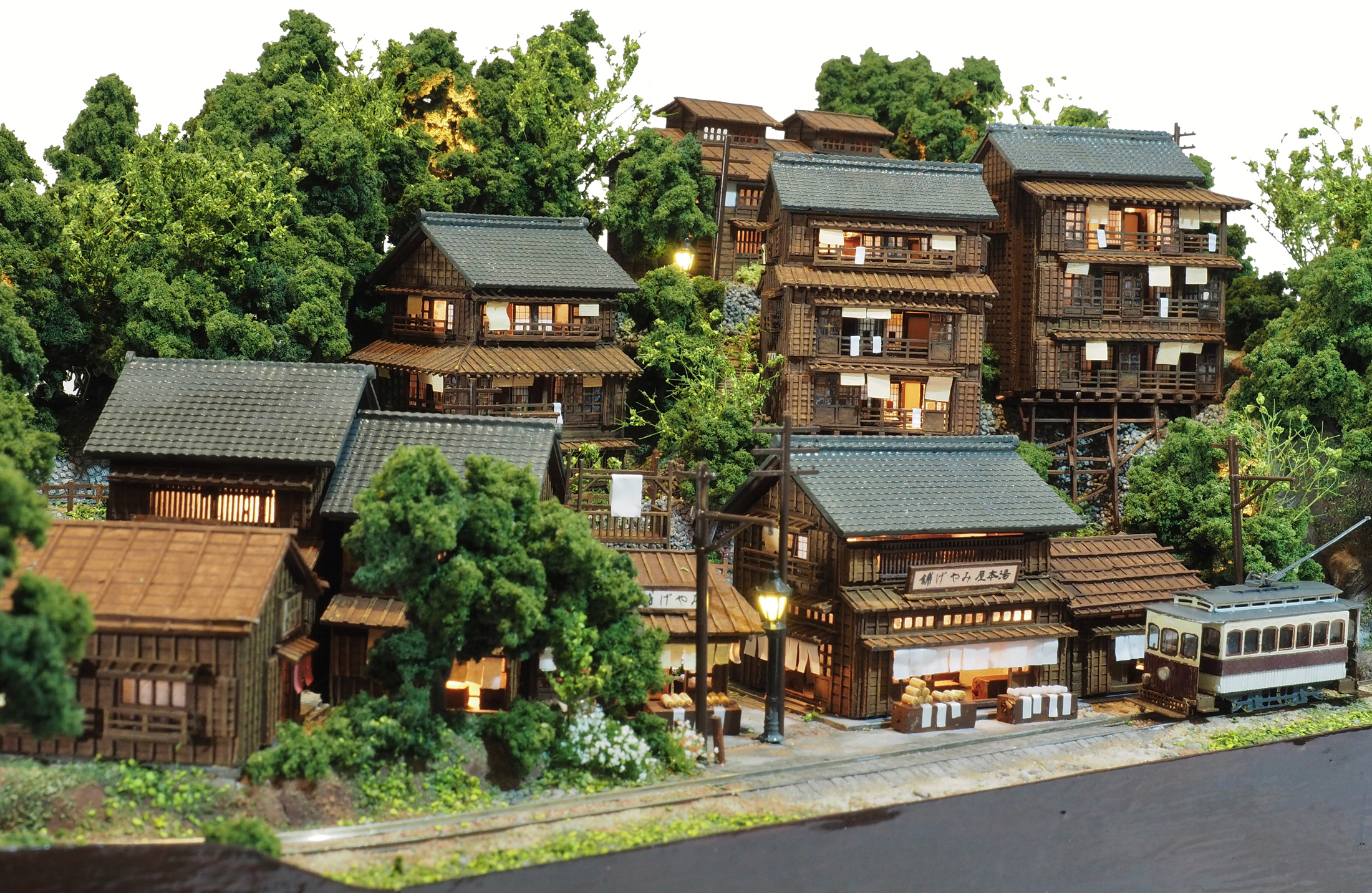

- 画像の車両は、「アルナイン」製のキットを作者が塗装・組立したものです。
(車両は付属しません)
- Main Materials:
- Styrene board (for adjusting ground levels; 2–5 mm thick; available from Sekaido and Tokyu Hands)
- Cardboard (approx. 1 mm thick; available from Sekaido; “White Cardboard A3” by ORION Co., Ltd.)
- Illustration board (1–2 mm thick; used for building bases and the base for the rails)
- Cyanoacrylate adhesive (instant glue)
- Thin type: “Instant Glue 1 g × 3, Quick-Drying Type,” available from Can★Do
- Medium-viscosity type: “Instant Glue 2 g × 2, Multi-Purpose Type,” available from Can★Do
- Other types as required
- Wood (for the base: Lauan plywood, Shina plywood, and Agathis solid wood)
- Matte acrylic paint: Holbein “Acrylic Gouache”
- Paper clay (for representing rocks, adjusting differences in ground level, and creating cliffs): “Hearty Clay Brown”
- Sand and stones for the ground: Morin “Real Sand” and “R Stone,” available from Sakatsu Gallery
- Stone walls 1: Morin “R Stone,” bonded with “Koueidou Stunori” adhesive
- Stone walls 2: Tsugawa Yokou (津川洋行)“(N) SNP-N4 Scenery Paper N – Stone Wall, Gray,” painted and modified by the artist
- Trees and vegetation
- Foliage Clusters, available from Sakatsu Gallery
- WOODLAND Scenics “TREE ARMATURES” TR1123 (for tree trunks; available from Sakatsu Gallery)
- Koedo Flower Tree (for representing trees; available from Sekaido and Tokyu Hands)
- Various “mini Natur” products (for grass, plants, and shrubs; available from Sakatsu Gallery)
- Roof tiles(瓦): Green Max
- Utility poles: Green Max
- Overhead line poles: Tsugawa Yokou(津川洋行)

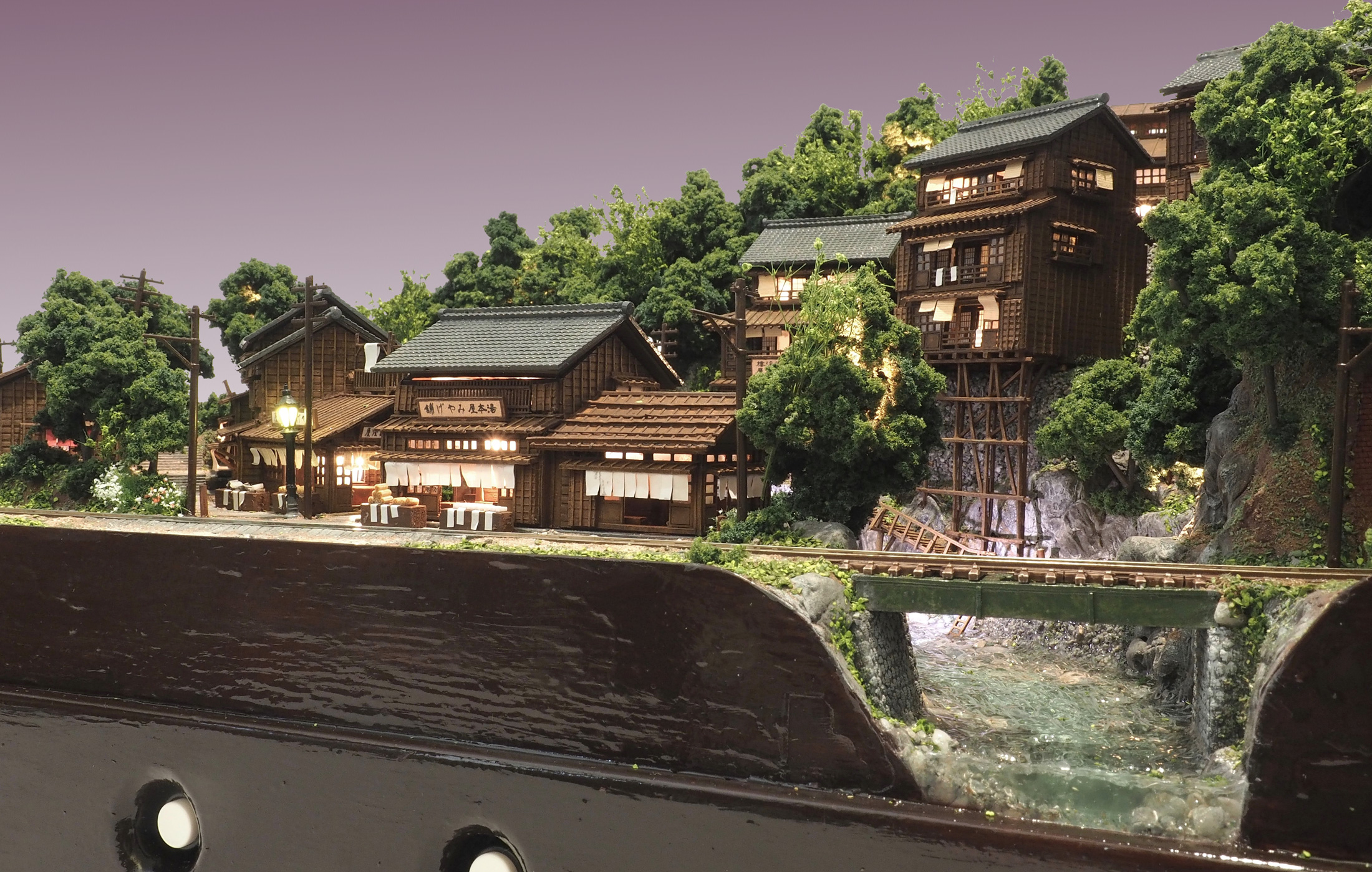

- High-transparency resin: “Pro Crystal NEO or 880” (for the stream water)
- Holbein “Crystal Varnish” (for representing ripples on the water surface; applied after the resin has cured)
- Asahipen “Water-Based Varnish – Mahogany” (for the finishing coat of the wooden base), and other materials

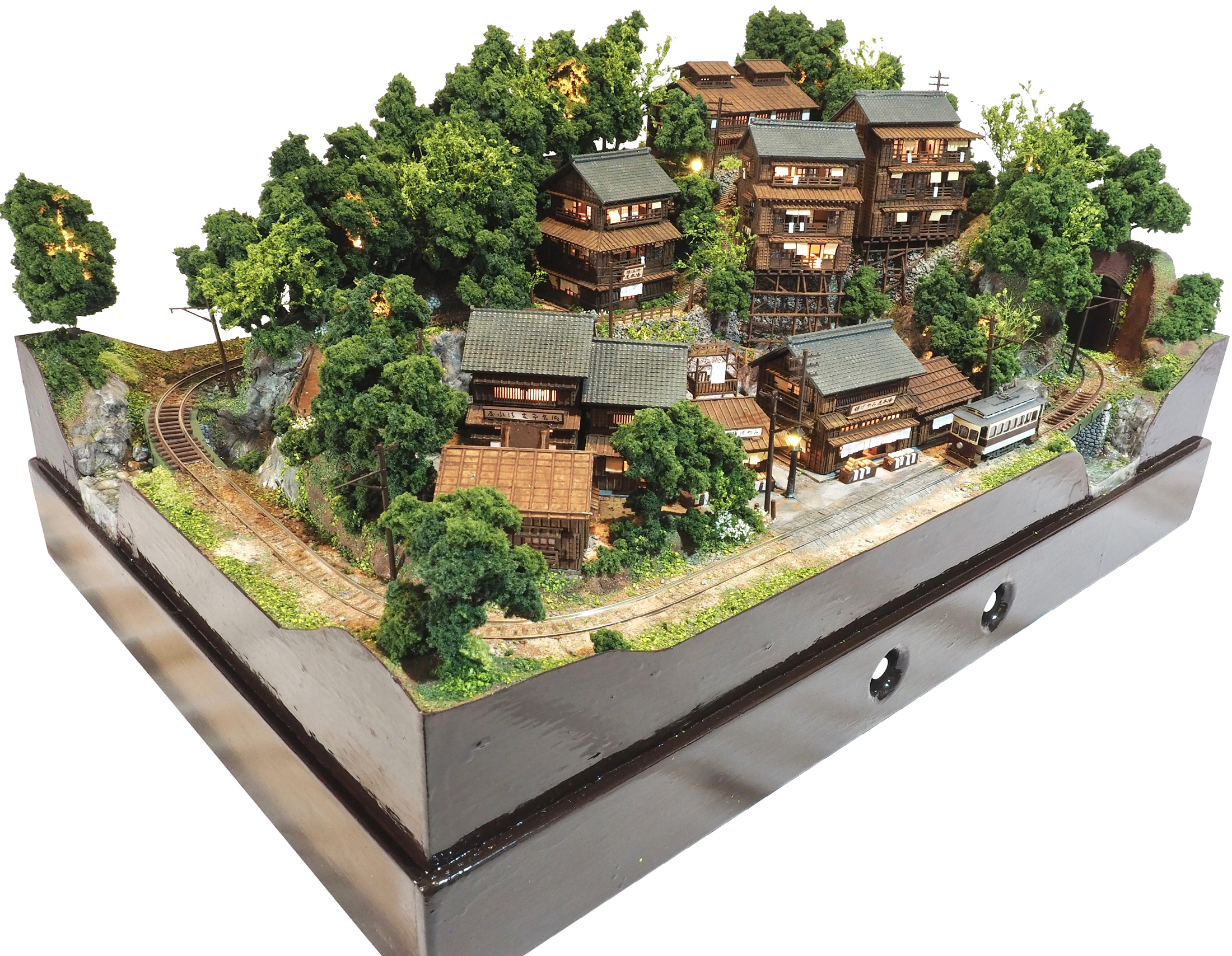

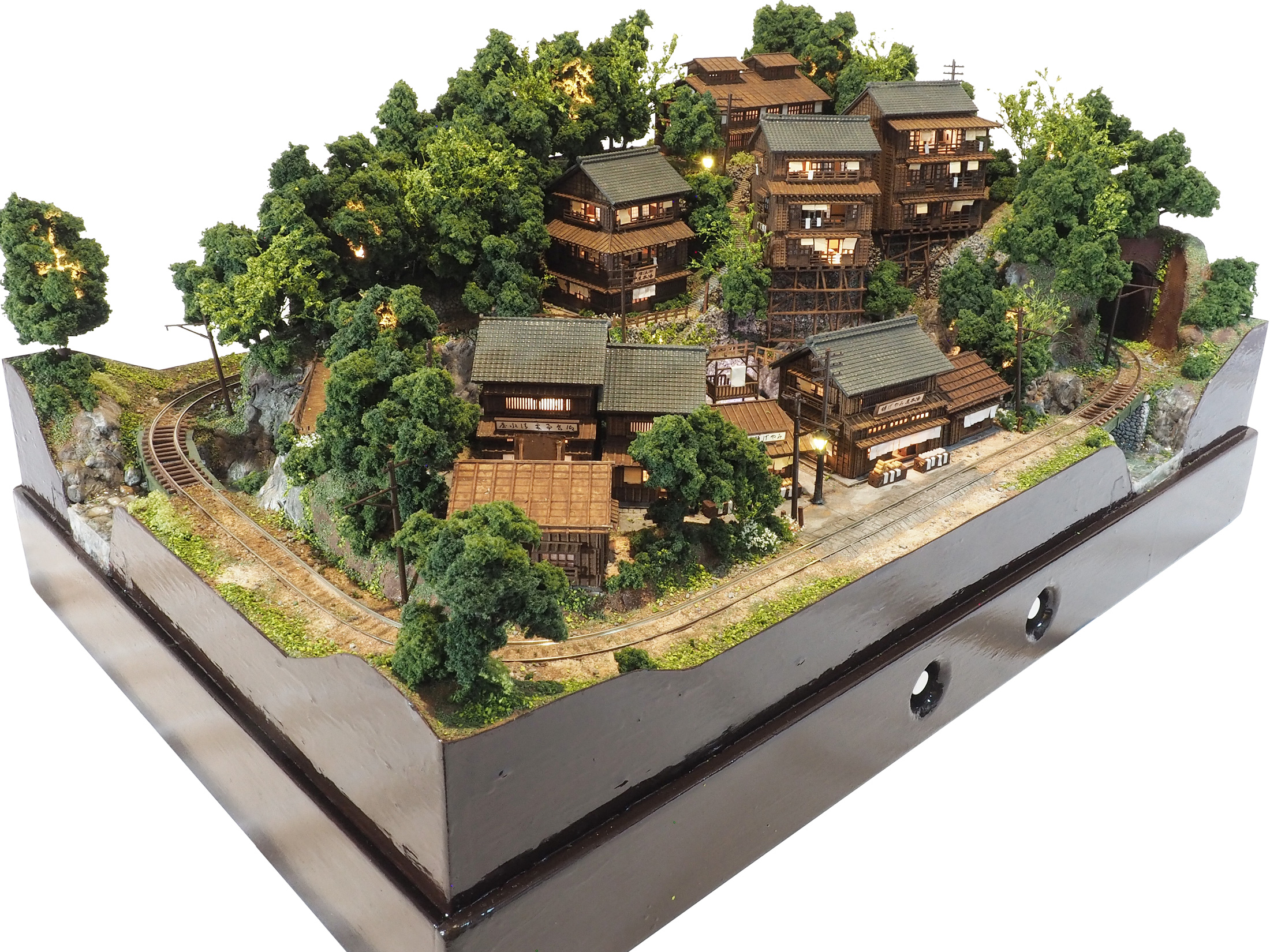

- Elliptical track layout for the tram:
- PECO Flexible Track (for N scale, W 9.5 mm), SL-300F, Code 55
- Track Spikes (Shinohara HO N3 Spikes, discontinued)

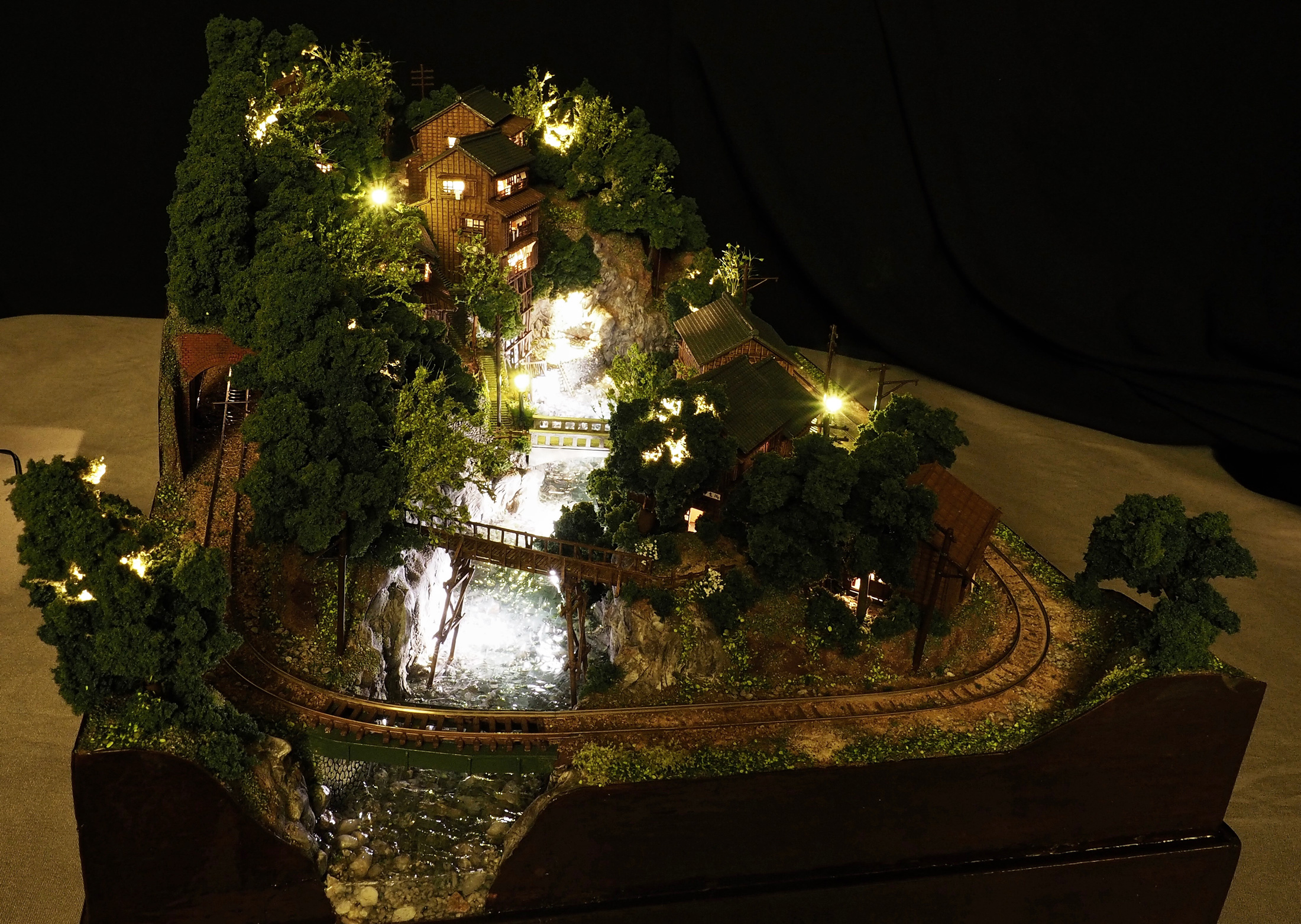

- Lighting: LEDs (3 mm round, several colors) + CRDs (E-153) + 560-ohm resistors, approximately 30 sets in total, all connected in parallel
- Main switch on the base: Alternate-action type, 2 circuits (for interior lighting and exterior illumination)
- Streetlights (not used in some works): evemodel LED lights (L = 30 mm), with the supplied 1 kΩ (1,000-ohm) resistors and CRDs (E-153) wired individually to each light
- Acrylic Case (3 mm thick, clear, extruded acrylic)
: Custom-made by Hazaiya / Sugawara Kogei Co., Ltd.
- Items Included with the Artwork upon Purchase:
- Acrylic case (3 mm thick, clear, extruded acrylic) included
- AC adapter for LED lighting (5 V, 2.0–2.5 A) included
(*The capacity may vary depending on the artwork.) - DC feeder cable for N-scale power packs included
(The rail-side plug of a TOMIX 5534 DC Feeder N has been replaced with a different plug.)
- The rolling stock shown in the images was painted and assembled by the artist using a kit made by Arunine.
(The rolling stock is not included with the artwork.)
- [info] 明治・大正・昭和――日本の元号について|Japanese Era Names
2026年9月26日 September 26, 2026 - [info] 渓谷沿いの建物の向きについて|Orientation of Buildings Along the Valley
2026年9月26日 September 26, 2026 - [info] 電気軌道線について|About Electric Tramway Lines
2026年9月26日 September 26, 2026

d047 元祖・拾の溪温湶鄕
Jyunotani hot spring resort — Ganso (Where It Began)
2026
制作・撮影:山尾 比呂士 2026
Production and photography by Yamao Hiroshi, 2026
(OLYMPUS OM-D E-M5 Mark II + M.ZUIKO 12-40mm F2.8 Pro)
2026年(令和8年)4月29日発表
Announced on April 29, 2026
2026年(令和8年)9月26日移転掲載
Published on September 26, 2026, following the site relocation.
